• Model NO.：HH-50+35,70,80
• Usage：CAT6A,Cat7 Cable
• Motor：Germany-Siemens
• Inverter：Siemens
• Control Box：PLC Siemens
• Bearing：Japan-NSK
• Electric Element：Siemens and Omron
• Available Material：HDPE, Foam PE, PVC, LSZH
• Insulation：500 M,Min
• Pair Twist：60 M,Min
• Cable Twist：100 M,Min
• Jacket：200 M,Min
• Inlet Wire Diameter：1~4mm
• Finished Wire Diameter：2~8 mm
• Cross Sectional Area：1~6 Square mm
• Extrusion Speed：Max 400 M,Min
• Transport Package：Plastic Packing
• Specification：CE ISO
• Trademark：HOOHA
• Origin：Dongguan China
• HS Code：8479400000
• Production Capacity：10 Sets,Month

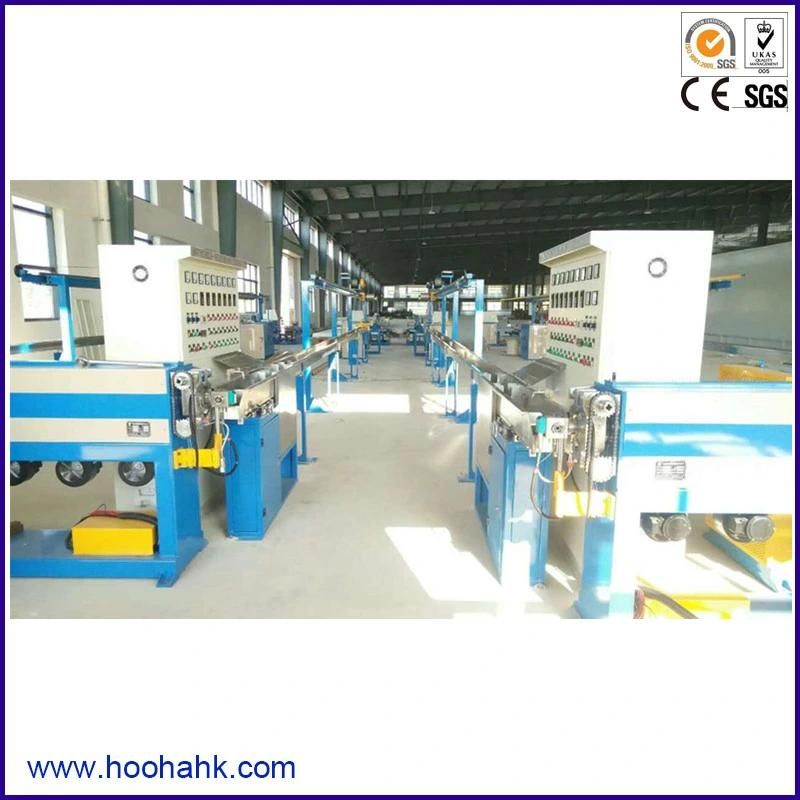

No.ItemsQuantity1400-500 motorized pay-off stand1 set25-wheel Straightening device1 set350 Host extruder1 set450 extrusion head1 set5Automatic drying and feeding machine1 set6PLC electric control box1 set71.5m Movable water tank with cover1 set8Diameter tester1 set98m Fixed water tank with cover and leak-proof1 set1010 m Slide rail type + anode guide wheel storage rack1 set11capstan 1 set12Meter counter1 set13High frequency spark tester1 set14400-500 Double-head shaftless motorized take-up stand1 set1535 Injection Machine1 set16Display board1 set17Accessories1 set

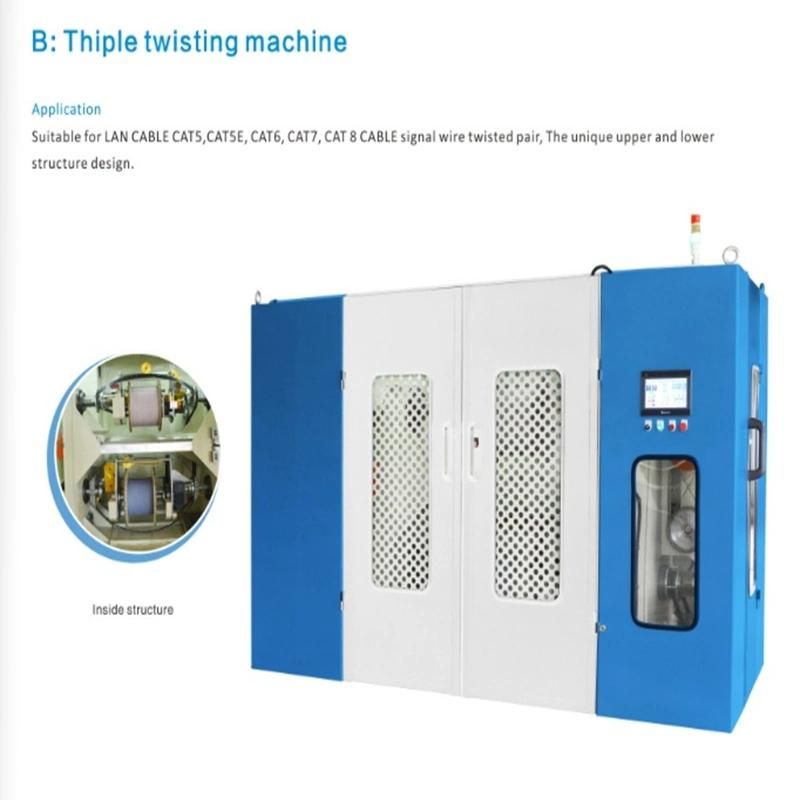

2.HDPE/FOAM Wire Pair Twisting→ HH-PT-PLC 500 triple twist machine

Itembakc twist+pair twisting machine
(horizontal type)Triple twisting machine
(horizontal type)Application twisting lan cablebelow cat6Application makign cat6,cat6a,cat7,cat7aPitch formGear ratioServo motor control, pitch keep stable
pitch set-up change
Replace gears, low efficiency, error-prone
Touch screen settings, fast and convenientMax rotate speed(rpm)back twist 1500 rpm,host machine 2000 rpmback twist and host machine are the same rotae speed:2000 rpm.Max twisting speed(TPM)4000 TPM6000 TPM
pair twist speed(33% back twist rate)

15mm pitch, normal speed 36m/min

15mm pitch, normal speed 54m/min


back twist qualityThe two core wires are twice twisted in the opposite direction on the twisting bow, and the tension loss is different. The damage to the core wire is large and the physical length value of the wire is different, and the return loss value of the wire is greatlyOne core wire is threaded through one end of the twisted bow, the other end is threaded out, and the other core wire is directly discharged. The tension is synchronized to form pitch(no twist), and the return loss is stable.
take-up tension control
Magnetic powder clutch
Gravity tension + motor frequency control, empty bobbin/ full bobbin tension is stablePower controlMotor and magnetic powder clutch controlServo control, stable speed

operating
Guide wheel and threading wire porcelain eye are small and numerous, and it takes time and effort to threading wire.
Guide wheels has large diameter and small quantity, spring lead wire, simple threading wire (opening door on both sides for easy
operation and maintenance)costNeed to back up gears and other consumablesNo consumablesFloor areaTwo-part design machine(Split machine), large footprintOne-piece structure machine, small footprint

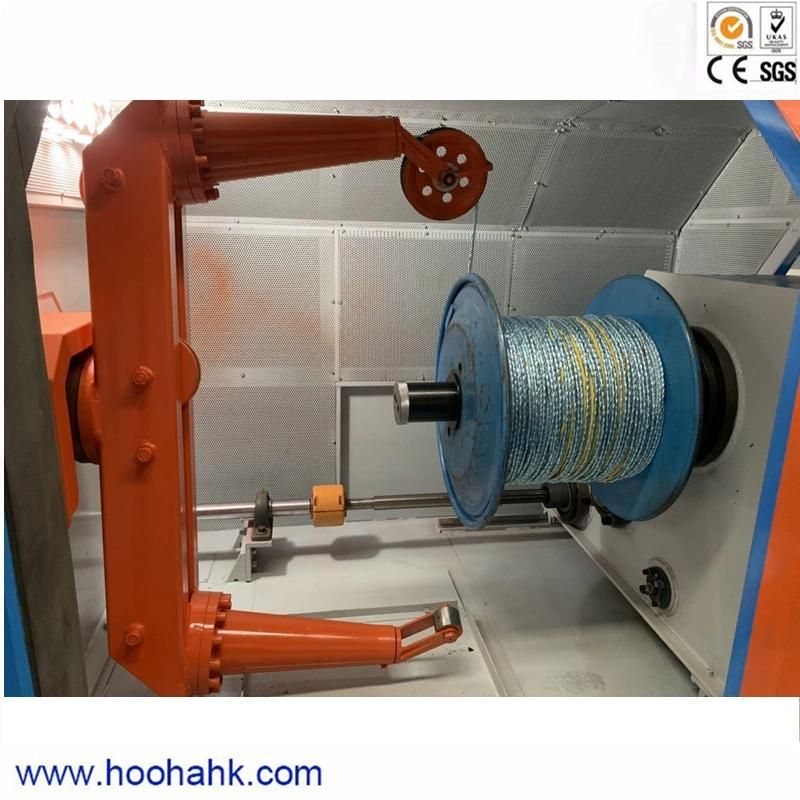

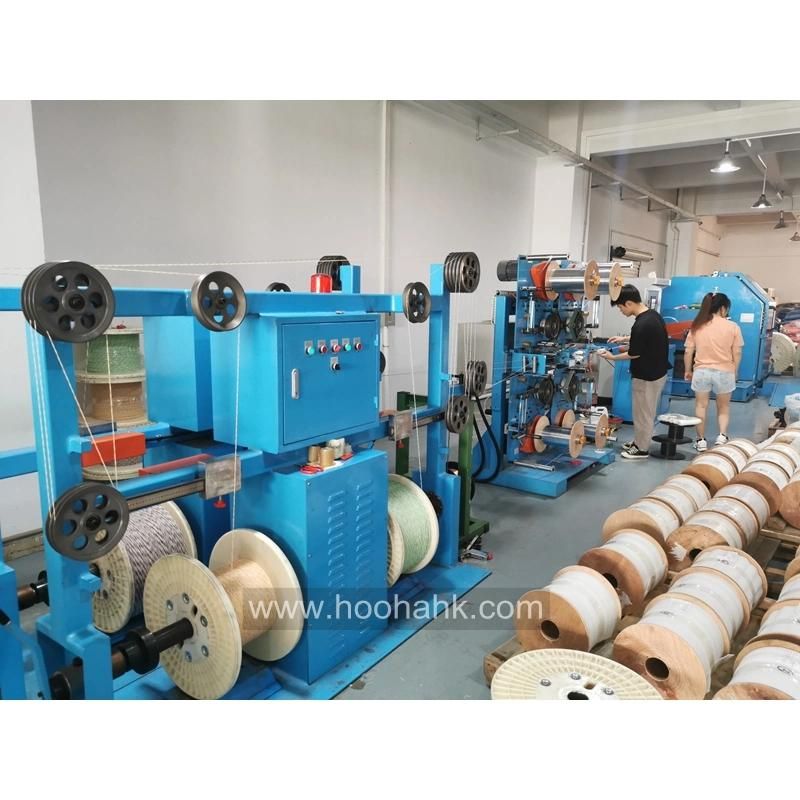

3. 4 Pairs Stranded Wire Laying Up→ HH-ST-PLC 800 Cantilever Single Twisting Machine

Application



This equipment is suitable for outer surface extrusion of wires and cables with insulation materials to twist.



Components



No.ItemsQTY14 heads motozied pay off stand1 Set2PLC Siemens electric control box1 Set3Wire collection device1 Set4Wrapping machine1 Set5800 Cantilever single twisting main machine1 Set64 heads vertical motorized tape (for S/FTP)1 Set

4. Jacket/Sheath→ HH-E-PLC 70 Extrusion Machine(PVC,LSZH)


Application:



suited for PVC,LSZH material to do the sheath and jacket on the cable .




Parameters:


No.ItemsFeatures1Inlet Wire Diameter1~4mm2Finished Wire Diameter2~8 mm3Cross Sectional Area1~6 square mm4Extrusion SpeedMax 400 m/min5Extrusion Capacity150 kg/h6Installed Capacity55 kva7Voltage380KV, can be customized8Weight4000 kg9Measurement (L*W*H)24*3.5*3.5 m



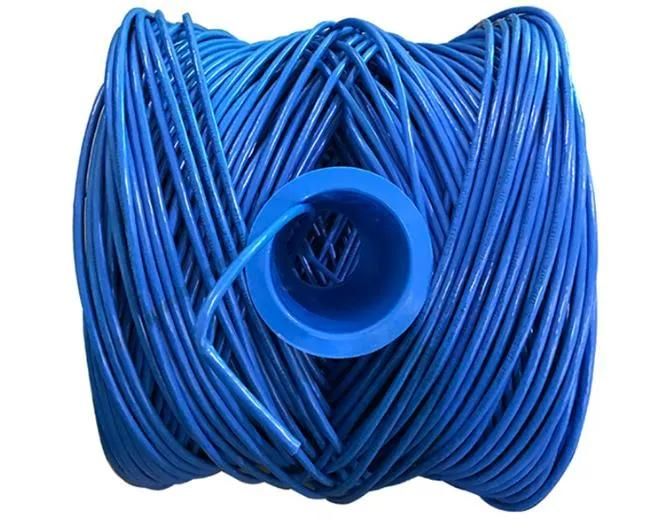

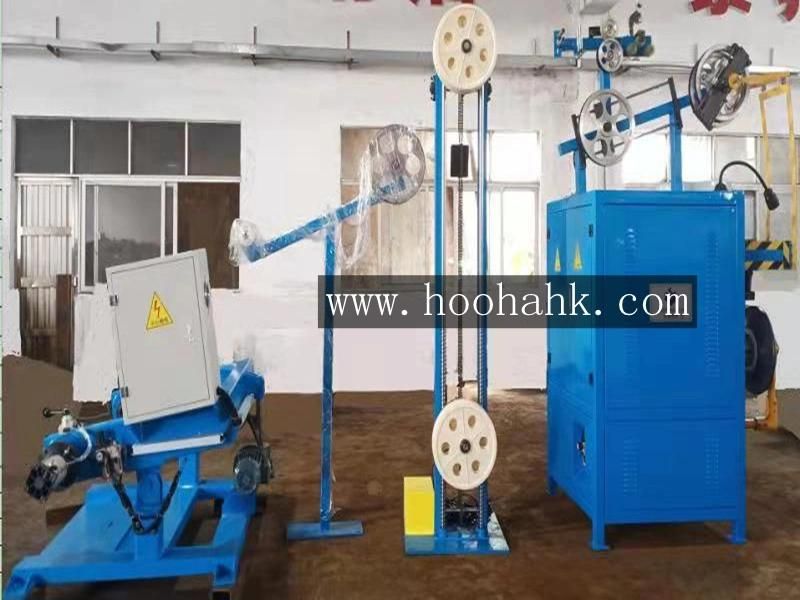

5. Packing→ 8 Figure Type Coiling machine (305m/Roll)








6. do you have some video of the machine to display how it works ?
A. yes,we have displayed video at the youtube channel : tiezhong chi / HOOHA CO.,LTD.
