• Model NO.：C1246,C1860,C2060,C2480

Basic Info.

Model NO. C1246/C1860/C2060/C2480

Product Description

COMPUTERIZED AUTOMATIC COILING MACHINE
1.Features

• Auto-coiling wire from an extrusion line or from the pay-off machine.
• Screen touch Graphic Operation Terminal makes it easy to operate.
• Servo motor traversing system produces coil with smooth surface.
• The machine will automatically detect the fault, and give alarm.
• You may input and keep 99 types of coil data in the PLC memory.
• It is unnecessary to adjust any device when change coil size to another.

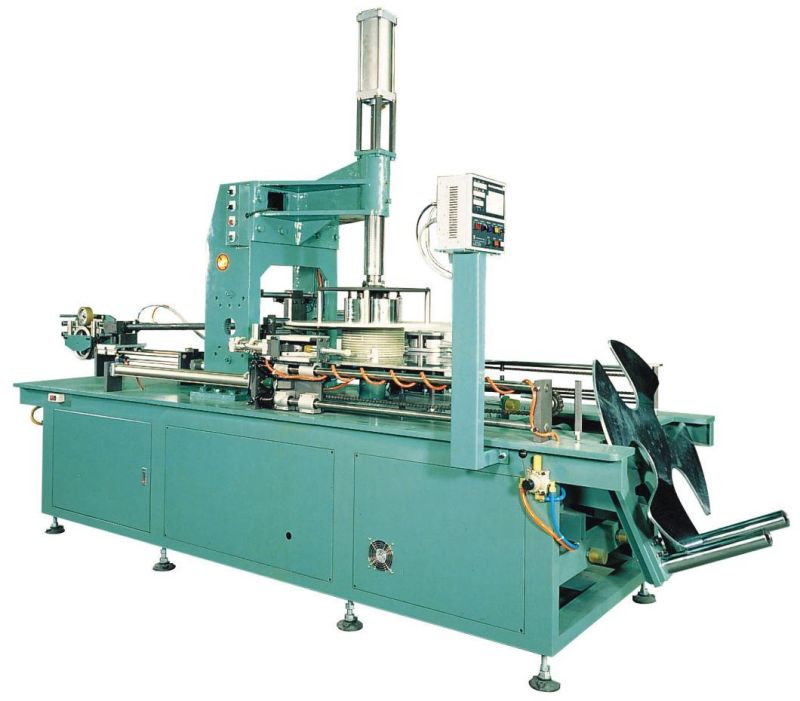

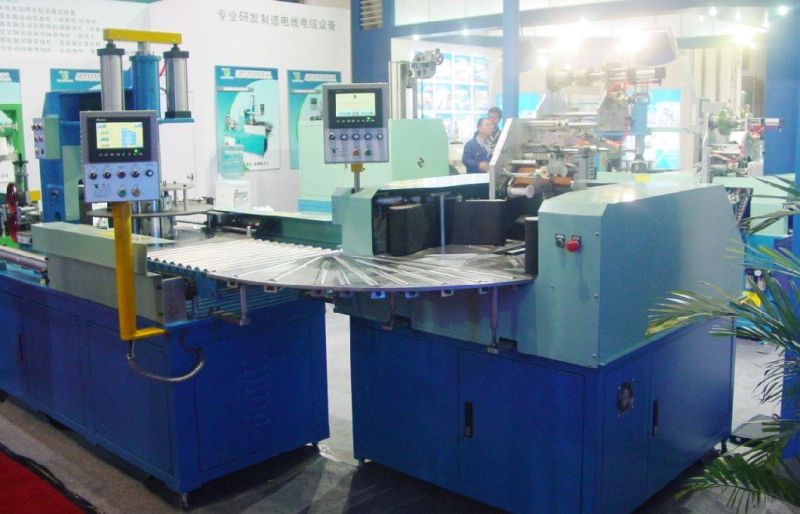

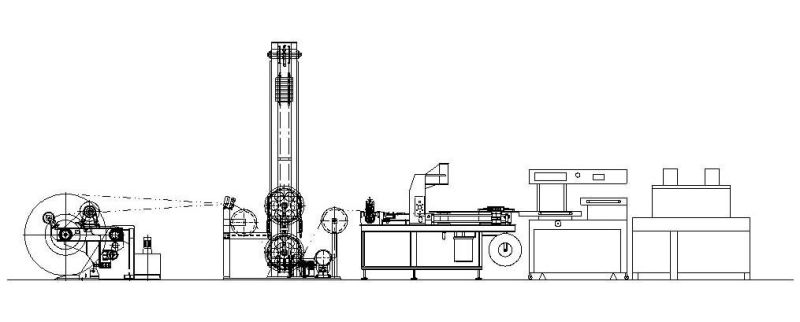

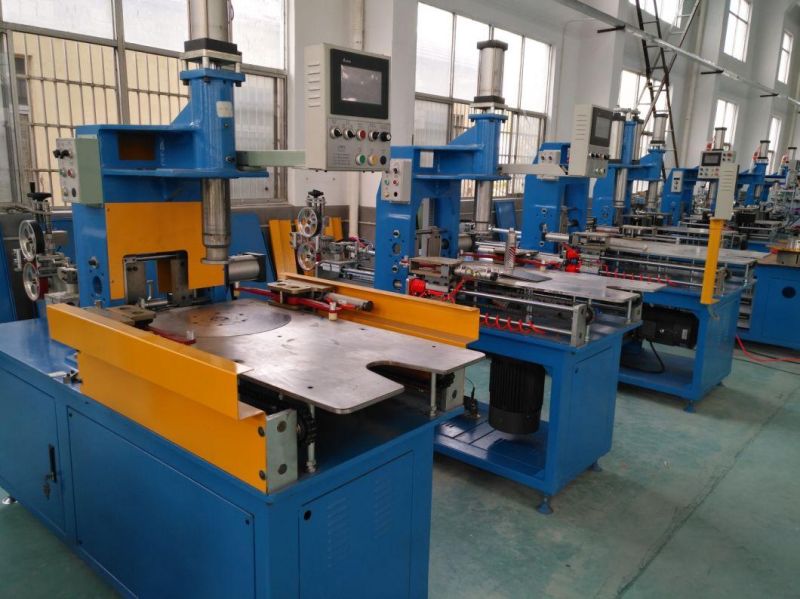

2.Equipment Picture




3.Technical Parameters

Model	Height (mm)	Outside Diameter O.D (mm)	Inside Diameter I.D  (mm)	Cable Diameter (mm)	Rotation speed (RPM)
C1246	50~120	180-460	120-220	1~12	900
C1860	60~180	220~600	180~250	5~15	300
C2060	60-200	220~600	180~250	5~15	300
C2480	80~240	250~800	250~320	10~25	100
