Basic Info.

Model NO. QQ Finished 6-14mm Transport Package Wooden Package Specification Customized Trademark Reliable Origin China

Product Description

Building Wire Extrusion Production Line

1.Description:
It is applied in the insulation extrusion of PVC,PE,XLPE,LSHF.
Auxiliary machine can be used to extrude insulation color bars and color wheel.
It can complete TJJN insulation, which includes series extruder matching for extrusion of PA (nylon) sheath.
It adopts MMI+PLC control, whole machine linkage, outer diameter feedback. The process parameters can be modified, stored, adjusted, and it is easy and quick operation.
Different take up devices can be configured as required.
These machines can be selected according to requirements: automatic feeding machine, granule dryer, metering color master machine, outer diameter measurement and control, inkjet machine (laser, ink), frequency spark testing machine and other auxiliary machines.

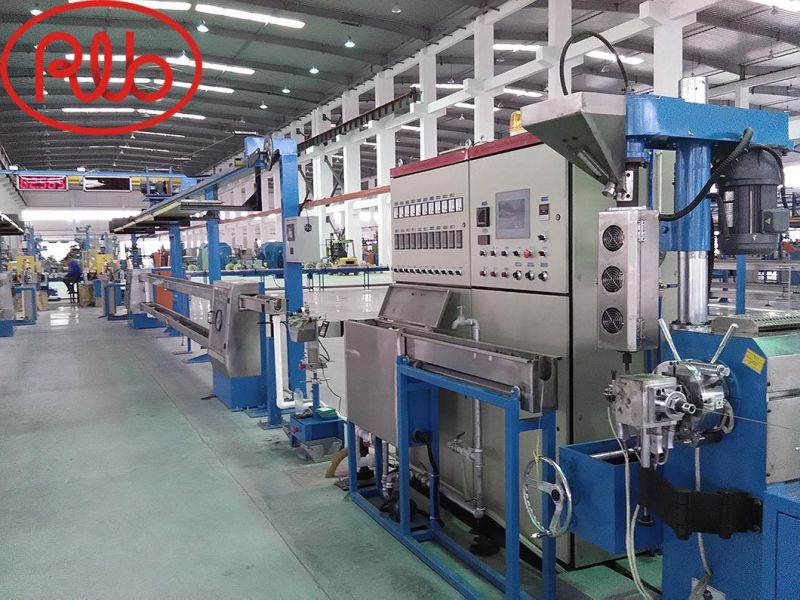

2.Equipment Picture

3.Technical Parameters


Model	RLBEH-75	RLBEH-90	RLBEH-100	RLBEH-120
Cross Section squaremeter	1.5-6	1.5-10	1.5-16	1.5-16
Finished  mm	6	8	10	14
Max Line Speed m/min	600	800	900	1200



Model	RLBEW-90	RLBEW-100	RLBEW-120	RLBEW-150
Cross Section squaremeter	10-50	10-70	16-150	25-240
Finished  mm	15	20	25	30
Max Line Speed m/min	100	150	250	350

4.Layout:


5.Application:
These machines can be selected according to requirements: automatic feeding machine, granule dryer, metering color machine, outer diameter measurement and control, inkjet machine (laser, ink), frequency spark testing machine and other auxiliary machines.
Different take up devices can be configured as required.
It can be connected online: coil winding envelop machine, coil taping and heat shrinkable envelop machine, coiling machine, etc.
It can provide the solution of the whole factory material transportation .
