Desktop Hot Wind SMT Reflow Soldering Reflow Furnace Solder Oven (IN6) for Leadfree Prototyping with CE Certified
Zhejiang NeoDen Technology Co., Ltd.- After-sales Service：1 Year Warranty
- Condition：New
- Certification：CE
- Warranty：12 Months
- Automatic Grade：Automatic
- Installation：Desktop
Base Info
- Model NO.：IN6
- Application：Lead, Lead-Free Soldering
- Rated Power：2kw
- Heating Zone：Upper3, Bottom3
- Heating Type：Nichrome Wire and Aluminum Alloy Heating
- Conveyor Speed：15-60cm,Min, 6-23 Inch,Min
- Standard Heating Height：30mm
- Temperature Range：Room Temperature-300 Degree Celsius
- Temperature Accuracy：+,-0.2 Degree Celsius
- Temperature Distribution Deviation：+,-1 Degree Celsius
- Soldering Width：260mm (10 Inches)
- Chamber Process Length：680mm (26.8 Inches)
- Heat-up Time：15min
- Machine Dimension：1020X507X350mm (Lxwxh)
- Transport Package：Heavy-Duty Carton
- Specification：CE
- Trademark：Neoden
- Origin：Zhejiang, Cn
- HS Code：8515809090
- Production Capacity：200sets,M
Description
Overview
Customers' Cases

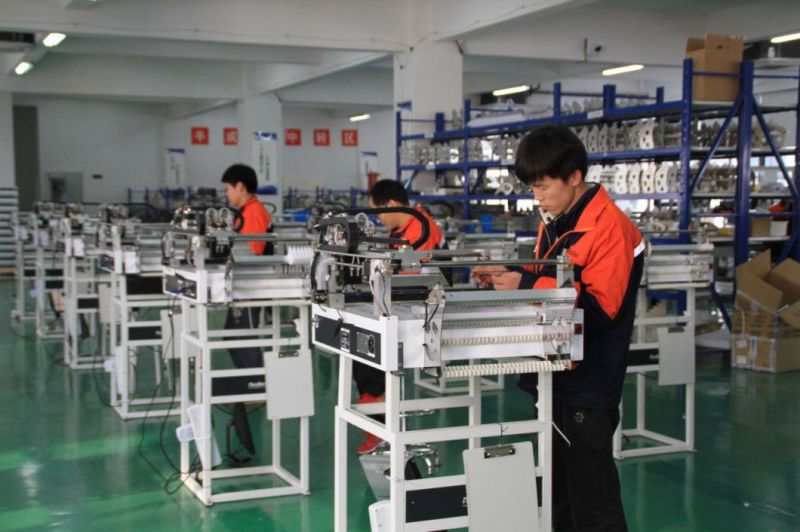

NeoDen in ExhibitionsFactory Tour
