• Model NO.：HH-70+35MM
• Motor：Germany-Siemens
• Inverter：Yaskawa
• Demoulding：Automatic
• Bearing：Japan-NSK
• Model Number：Hh-70+35
• Color：Customized
• Line Speed(M/Min)：Max 500
• Take-up Ratio(Kw)：5HP
• Max. Accumulation Length(M)：200
• Cooling System：Single Layer,Double
• Wire Diameter(mm)：1.5-12
• Host′s Power(Kw)：30HP
• Output(Kg/H)：140
• Screw Diameter Proportion：25:1 Bm Type
• Transport Package：Plastic Packing
• Specification：CE ISO
• Trademark：HOOHA
• Origin：Dongguan China
• HS Code：8477209000
• Production Capacity：10 Sets,Month

Team of HOOHA serviceNameEducationPositionMainly responsible for projectSpecializing in projectIndustry working history    ( year )Zanyang XiecollegeGeneral EngineerThe total project design and planningpower cable machine15Xiaohua HucollegeVis general engineerThe total project design and planningnet cable,data cable machine10Changhong ChengcollegeEngineerDrawings and after-sales serviceTeflon,Optical fiber cable machine25Xiuwu ChencollegeGeneral EngineerThe total project design and planningcopper drawing machine15Lixin YuancollegeEngineerThe project design and planningcoppwer wire making technical16Zhenghai Qiucollegecable engineerAfter servicecable making and cable factory management servie15Jinxin LiucollegeMarketing engineerAfter serviceelectrical engineer7Xingguo TangHigh schoolElectrical engineerAfter serviceelectrical engineer10Changqiang LiHigh schoolMaintain engineerAfter servicemachina maintain and install service10Haipin LiUniversityEngineering directorMarketing and salesproject consulting8Sen YangUniversityEngineering translatorMarketing and salesproject consulting5

2. Application:

Applied to BV, BVV, BVR, RV, Nylon sheath, and halogen-free environmently-friendly building wire.




3. Technical parameter:


Model	HH-70
Pay-off type	Double axes/Dynamic drum take-up
Pay-off bobbin size(mm)	PN 400-630
Screw diameter(mm)	φ70
L/D of screw	25:1 BM type
Output(kg/h)	140
Host's power(kw)	30HP
Wire diameter(mm)	φ1.5-12
Cooling system	Single layer/Double
Max.accumulation length(m)	200
Take-up ration(kw)	5HP
Linear speed(m/min)	Max 500
Take-up type	Double axes bundle packing/axis packing/swaying tray coiler packing
Receiving reel	PN500-630
Take-up power	5HP

4. Spare Parts Brands:

Motor:  Siemens
Inverter : Japan Yaskawa,
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK,

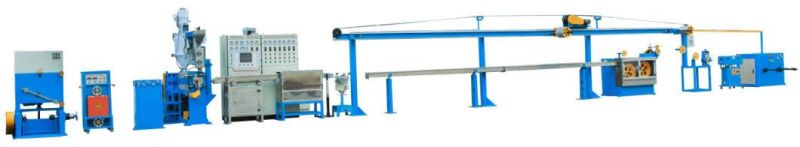

5. Consisting Components:

1,Magnetic powder machine
2,straightening workbench

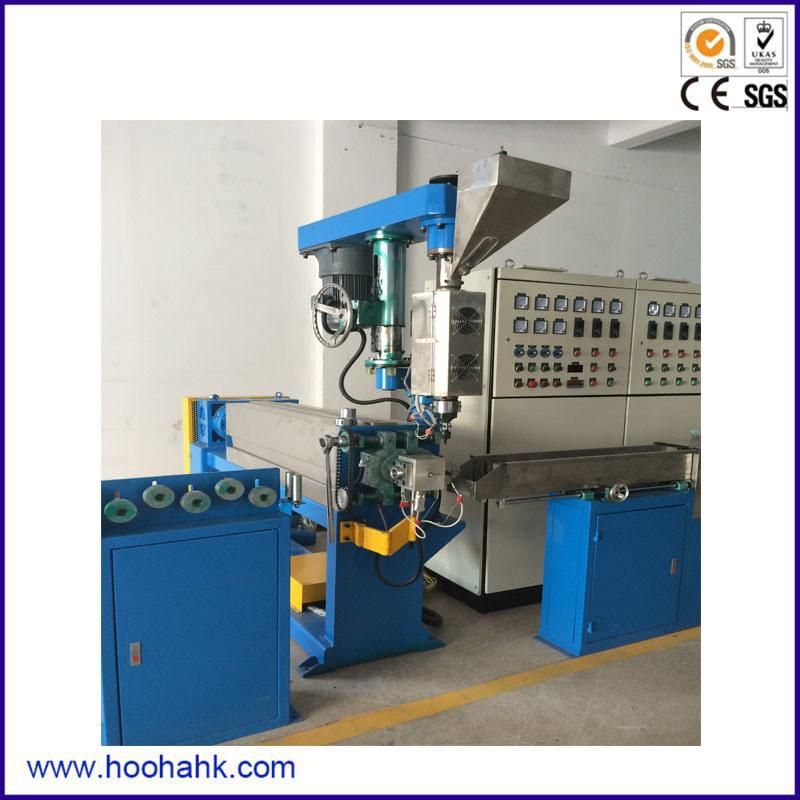

3,extrusion host
4,automatic dryer and hopper

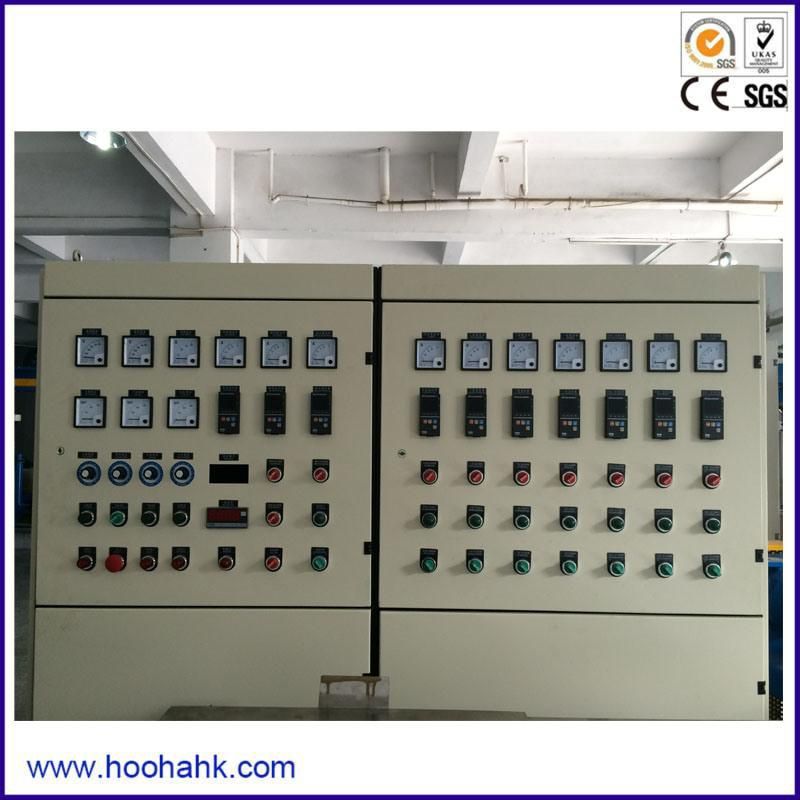

5,main control box
6,injection machine
7,active water tank
8, OD tester
9, printer
10, Fixed water tank
11,accumulate
12, Meter counter
13, double shaft capstan
14, take-up machine


6. Products






 7.After-sales service

1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: plastic packing ensure the goods' safety during the transportation.
4).Installation and training service:   2 professional engineers who has over 5 years overseas installation and cable manufacturing training experience


8. Contact information:


Web: http//:hoohaco.en.made-in-china.com
Address: 3rd Floor, Building D, Huifu Science Park, No.38, Houhu Road, Humen Town, Dongguan, Guangdong, China


9. Why us?

1.We are the cable equipment manufacturer.
2.Professional engineer,long-term to research and development for to cable equipment .
3.High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .
4.Our machine use the international qualified brand,like Siemens ,Omron,NSK,LG etc.
5.Install and training service.Guarantee overseas install and cable manufacture training experience.
6.Technical support and spare parts service.
