1250 Bow Double Cable and Wire Twisting Buncher Machine
HOOHA Co., LIMITED- Driven Type：Electric
- Condition：New
- Certification：CCC, UL, RoHS, ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
- Mould Life：>1,000,000 Shots
Base Info
- Model NO.：HH-,800,1000,1250
- Type：Single Stranding Machine
- Model Number：Gem-630,800,1000,1250
- Twisting Pitch：20-300mm
- Pay-off Bobbin Size：500-630mm
- Traverse Pitch：3-20mm
- Take-up Bobbin Size：630-800mm
- Motor：Siemens
- Inverter：Siemens
- Transport Package：Plastic Package
- Specification：CE ISO SGS
- Trademark：HOOHA
- Origin：Dongguan
- HS Code：8479400000
- Production Capacity：3 Sets,Month
Description
Motor-driven,fixed positionWeight(kgs) 9500 11000
Subject: 1250 Double Twist Buncher
But machine should be designed to last up to 5,000Kgs.
A. Supply scope and Specification:

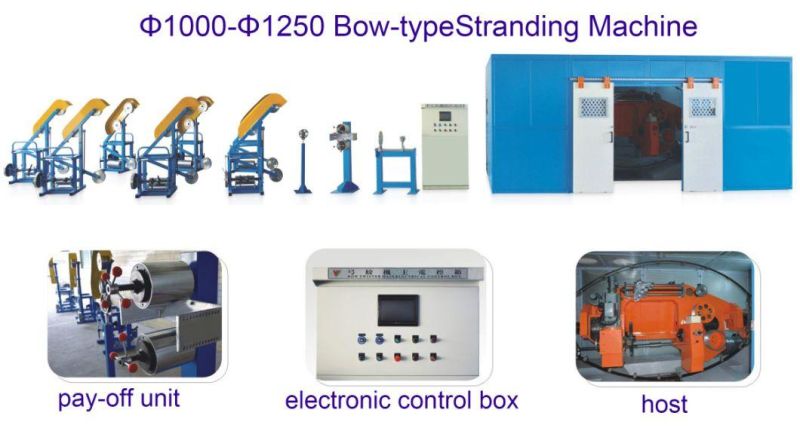

1. Line composed of:
1 ) 800 (630) mm pay-off: 800 (630) mm x 10 Head motorized pay-off
2) Collective base
3) Electrical Control Box
4) 1250 mm Double Twist Machine Main body
2. Specification of Main body:
1) Final application:
Bunching of Bare copper wire, Stranding of Insulated cable
2) Inlet size:
- Bare Cu. Wire 0.5 - 1 .5 mm dia.
- Insulated core cable 1.0 - 8.0 mm dia.
3) Finished size after bunching & Stranding:
- Bare Cu. Wire 7.0 mm dia.
- Insulated core cable 20.0 mm dia.
But this machine should produce bare copper wire stranded as finished product
up to 35 mm sq.
4-1 ) Lay pitch: 30 - 250 mm, Pitch range: 50 mm to 250 mm at each 10 mm interval
EHI will provide the supplier with data sheet for all pitches
4-2) Pitch changing mechanism: by Electronic pitch changing system
5) Traversing:
40 mm Rolling rod (German) + traversing unit (Tian Xiang) but inside Bearing equipped
with NSK Bearings
6) Line speed:
Max. 700 rpm, Speed controlled by Inverter
7) Standing & Bunching Direction:
S or Z direction, Direction by manual switch
8) Bobbin Lift Up and Down: By Oil (Hydraulic) lifter with 5 HP AC motor
9) Take-up bobbin: 1250 mm. As per the attached drawing
Max. weight of take-up bobbin (fully wound): 4,000Kgs
1 0) Motor:
Main body: 50 HP AC Motor (TECO) + 50 HP Inverter(YASKAWA)
1 1 ) Length counter: Taiwan TOFEK PM12-04N Sensor, 5 digit, Accuracy +/- 0.3%
12) Supply Power: 380 Volt., 60Hz, 3 Phase
13) Emergency stop for safety:
When door opened. When Lifter is not located in the right positions
1 4) Automatic stop:
Cable broken, Cable reached to preset length
1 5) Detecting device for Broken end: to be mounted
Its location: 1 inside + 1 outside
16) Main control panel:
Mitsubishi Touch screen & Mitsubishi PLC
1 7) HDI: Digital display for Rotational speed, Line speed, Length counter, Working hours,
Alarm failure indicator
18) Steel plate for Main frame
18-1) St. plate Grade: to be specified
18-2) St. plate Thickness:
- Thickness of Bottom steel plate base: mm T.
- Thickness of Wall side: mm T.
The supplier guarantee unacceptably severe Vibration (this severe vibration will effect
directly life-time of machine after long-term use) will not happen.
19) Main Bearing & Cooling system for main bearing:
19-1) Bearing brand: NSK
19-2) Cooling system: Auto. Grease Feeding System (total 2 sets)
20) Cooling system inside DTB: High speed 4 Fans
20-1) Capacity of Fan motor: 1 HP/fan
20-2) Air OUT from DTB: 4 Positions at Top side by 1 HP at each position
20-3) Air IN to DTB: 2 Positions at Back-wall side but no fans
21) Tension control: 20 Kg Powder Clutch (Taiwan)
22) Emergency Brake:
22-1) Inside by Electromagnetic brake (Brand name and its specification to be specified)
22-2) Outside by Disk type brake (Taiwan brand, its specification to be specified)
23) Flying Bow: Carbon fiber bow type
24) Heat-treatment:
Heat-treatment should be done for all metal moving parts & components
25) Bearings to be used at other places: NSK and NACHI
26) Dimension: mm L. x mm W. x mm H.
27) Tension ON/OFF: to be equipped
28) Size of Capstan inside main body: mm dia.
The supplier guarantee no damage to cable quality (insulated finished cable 35 mm sq.)
by bending severely even on the a.m. capstan size
29) Noise level: Below 85 dB
30) Lubricating system for inside Main shaft: to be located Outside but manual grease feeding
Spare Parts Brands:
Motor: Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
AfterService:
1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online
Why Choose Us?
1.We are the cable equipment manufacturer.
2.Professional engineer,long term to research and development for to cable equipment .
3.High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .
4.Our machine use the international qualified brand,like Siemens ,Omron,NSK,LG etc.
5.Install and training service.Guarantee overseas install and cable manufacture training experience.
6.Technical support and spare parts service.
