Product Description

ACCUMULATOR / DANCER

1.Features

• Type: Vertical or Horizontal
• To be installed in an Extrusion, CV's and Rewind Lines to accumulate or control Payoff or Take-up during Reel change over.
• Accumulation capacity could be made according to customer's requirement.

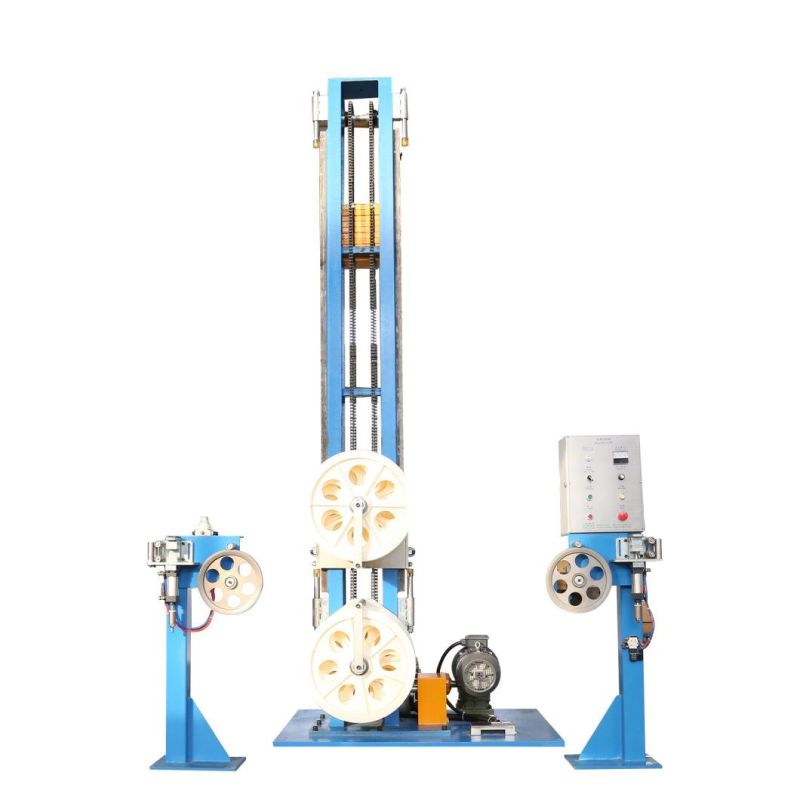

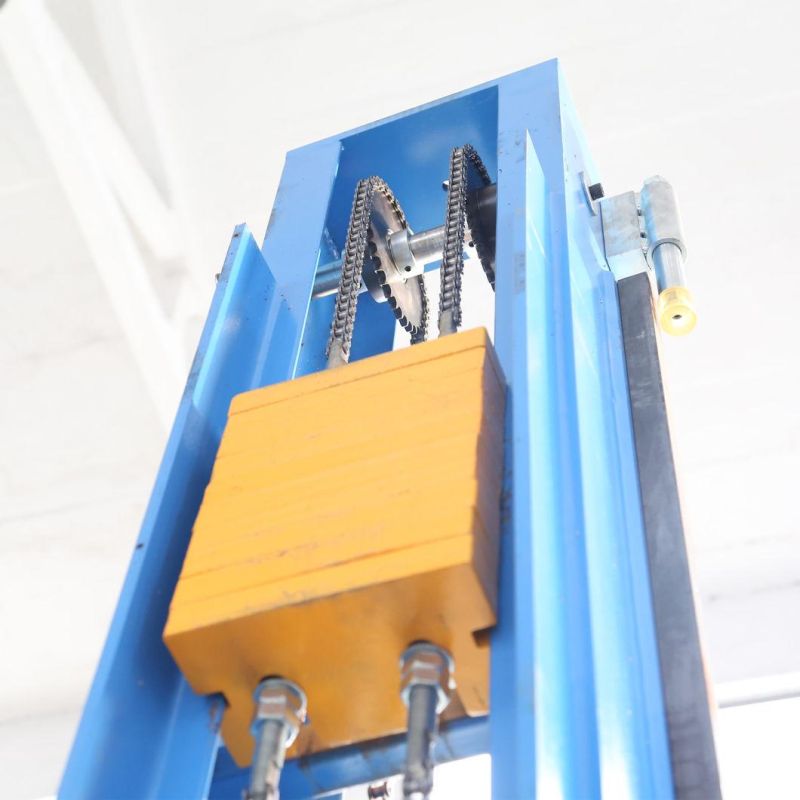

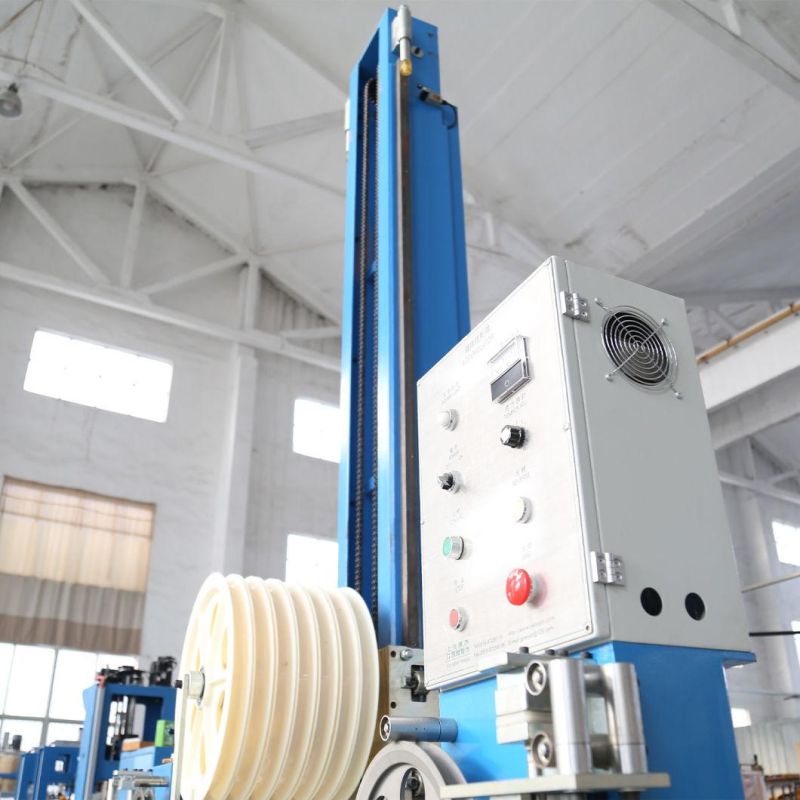

2.Equipment Picture



3.Technical Parameters

Model	Wheel Diameter (mm)	Number of Wheels	Capacity (m)	cable diameter (mm)
AC-0330V	300	10+11	41	2~6
AC-0335V	350	9+10	38	4~11
AC-0340V	400	7+8	30	6~12
AC-0345V	450	7+8	31	8~13
AC-0350V	500	6+7	24	10~15
AC-0360V	600	6+7	24	12~20
