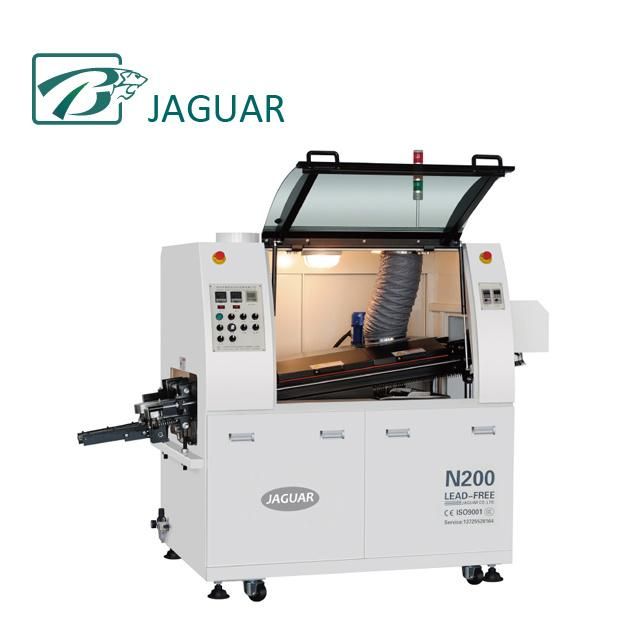

JAGUAR Lead-free Wave Solder N200



Specification:

Model No	JAGUAR N200
Number of heating zones	1
Length of heating zones	500mm
Body size	1400*1200*1560mm
Outside dimension	2100*1200*1560mm
Weight	500KG
Total/running power	16KW/3KW
Air supply	0.5MPa
Preheating method	IR(standard)
Preheating power	220V 5KW
Control  method	Press key +PLC
Range of temp. control	Room temperature---300ºC
Preheating time	About 10-15mins for setting 150ºC
Solder type	Lead-free / Sn-Pb
Solder pot capacity	180KG
Solder pot temperature	300ºC
Solder power	380V 6KW
Solder temp. control method	PID&SSR
Wave crest drive power	500W 220V
Warm-up time of solder	About 120mins for setting 250ºC
PCB  width	30-250mm
Convey  speed	300-1200mm/min
Convey  direction	L→R (R→L optional)
Convey   angle	4-6 º
Flux pressure	3-5 bar
Flux capacity	3.2L

Introduction
1. Automatic conveying power system and auto synchronous board feeding functions.

1.  Solder Pot peak uses frequency conversing speed adjustment which can independently control the wave height.
2.  Fluxer system using transverse Japanese spray nozzle, driven by pneumatic cylinder and PLC control, accurate and reliable.
3.  PLC is used to control the machine, to ensure the reliability and stability of the system.
4.  Pre-heaters using Infrared heating element, heat radiated efficiently to the circuit board with fast ramp up and fully activating liquid flux.
5.  Special alloy solder fingers, strengthened double v-groove.
6.  Solder-motor adopts imported high frequency conversion motor with independent control, stable performance and long lifetime.
7.  Pre-heater passage with modularized design, meet with environmental protection requirement, safety and convenient to cleanup.
8. Preheaters uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
9. Timer startup feature for solder pot, solder melted within 90 minutes.
10.  Automatic finger cleaner ensure the cleanliness of solder fingers.
