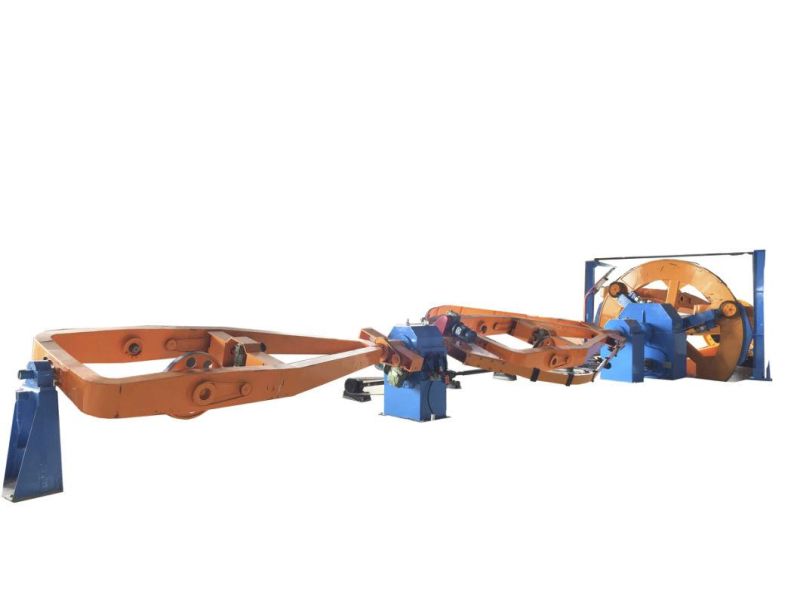

Cage Type Planetary Wire Cable Stranding Machine with Back Twist (Anti Torsion)

Guangdong Chipeng Electrical Technology Co., Ltd.
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Single Strand Diameter：2-5mm
  • Maximum Stranding Diameter：55mm
  • Cage Speed：23~118r,Min
  • Stranding Pitch：41~2542mm

Base Info

  • Model NO.：JLY400-JLY630
  • Traction Speed：4.86~65.4m,Min
  • Speed Changer：36 Stages
  • Pay-off Bobbin：Pn400-Pn630
  • Take-up Bobbin：Pn1000~Pn2000
  • Central Height：1000mm
  • Precision：Precision
  • Transport Package：Standard International Shipment Packing
  • Trademark：CP
  • Origin：Foshan
  • HS Code：8479400000
  • Production Capacity：2 Sets,Month for Cage Stranding Machine

Description

No.Parameter nameUnitJLY400/6+12+18+24JLY500/6+12+18+24JLY630/6+12+18+241wire core diametermm2-52.5-52.5-52Max stranding diametermm455055 Cage speedr/min51.5-11835-9423-804Cabling pitchmm41-113660-175483-25425Cable speedm/min4.86-58.55.63-61.46.72-65.46Pay-off bobbinmmPN400PN500PN6307Take-up bobbinmmPN1000-PN2000PN1000-PN2000PN1000-PN20008Armoring head speedr/min191-781191-781191-7819Armoring pitchmm6-3067-3218-34210Taping head speedr/min128-686128-686128-68611Taping pitchmm7-4578-4799-49812Central heightmm100010001000
Cage Type Planetary Wire Cable Stranding Machine with Back Twist (Anti Torsion)


Cage Type Planetary Wire Cable Stranding Machine with Back Twist (Anti Torsion)

Our advantage:
1.Can strand cable very fast.Cage speed can be 98r/min.
2.Have protective system for breaking wire and cable.
3.Best after-sales service.Will give our service within 2 days.
4.Will give you professional instruction to how to manage these machines.
5.Good quality for testing.
