• Model NO.：DL300,400,500,630,800,1000,1250
• Mould Life：300,000-1,000,000 Shots
• Type：To Back Stranding Machine
• Twisting Section：0.035-6.7
• Marketing Type：Ordinary Product
• Voltage：380V, 50Hz, 3phase,Customized
• Color：Customized
• Feature：Fast Speed
• Video Outgoing-Inspection：Provided
• Transport Package：Export Wooden Case
• Specification：1200*2500*1350
• Trademark：DL
• Origin：China
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. DL300/400/500/630/800/1000/1250 Mould Life 300,000-1,000,000 Shots Type To Back Stranding Machine Twisting Section 0.035-6.7 Marketing Type Ordinary Product Voltage 380V, 50Hz, 3phase/Customized Color Customized Feature Fast Speed Video Outgoing-Inspection Provided Transport Package Export Wooden Case Specification 1200*2500*1350 Trademark DL Origin China Production Capacity 100 Sets/Year

Product Description

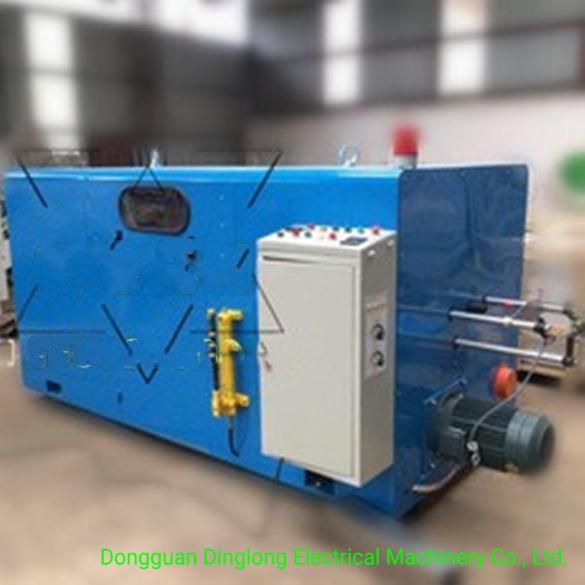

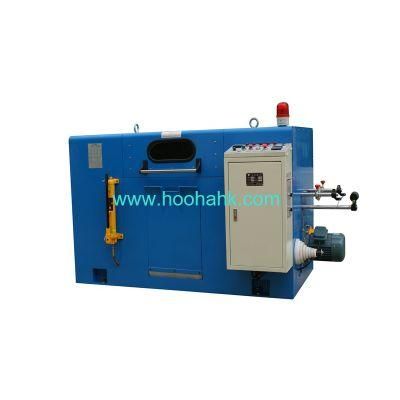

Customized 500 high-speed stranding machine

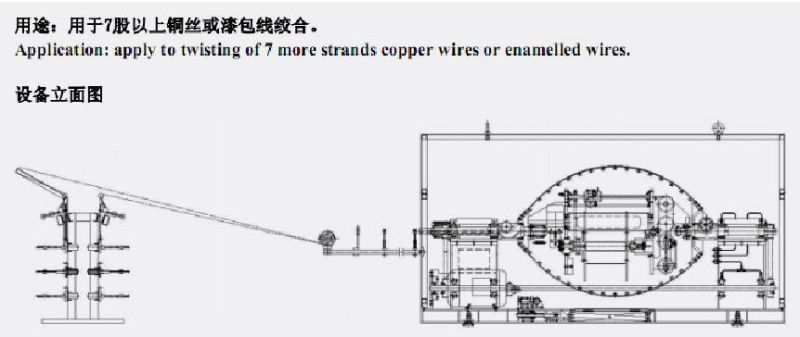

Application:

apply to twisting of 7 more strands copper wires or enamelled wire.

High speed stranding machine, also known as wire bunching machine, can be widely used for stranding all kinds of soft / hard conductor wires (copper wire, enamelled wire, tinned wire, copper-clad steel, copper-clad aluminum, etc.) and electronic wires, such as power line, telephone line, audio line, video line, automobile line, network line, etc.

[technical feature]:

1. The maximum speed of spindle is 3000rpm.

2. Automatic tension control: during strand winding, the winding tension needs to increase continuously when the winding is received from the bottom of the reel. This function can automatically track and adjust the winding tension; Make the winding tension of the whole reel uniform, and the machine can adjust the tension without stopping.

3. The main engine is lubricated by oil and cooled by natural circulation, which effectively prolongs the service life of the main shaft bearing.

The wire passing system adopts a new structure. The wire passes directly from the main shaft guide wheel to the bow belt, minus the scratch and strand jumping caused by the failure of the corner guide wheel on the aluminum plate.

4. Three tightening devices are set in the machine to ensure the roundness of the conductor after stranding and reduce the loss of insulating materials

5. The whole machine is driven by synchronous belt. There is no lubrication point in the machine. The machine is kept clean and the stranded wire is free of oil stain. It is suitable for conductor stranding of various wire types with high surface cleanliness requirements.

6. Only one take-off pulley needs to be replaced to adjust the stranding distance, and only the reversing rod needs to be pulled to adjust the stranding direction, so as to operate simply, so as to reduce the error rate and work intensity of the operator· The bearings of the whole machine are well-known brands in Japan, and the bow belt is made of new materials with good flexibility, so as to avoid stock jumping caused by vibration during high-speed operation. The frequency converter, PLC, magnetic particle clutch, electromagnetic brake and hydraulic jack are all imported well-known brands, so as to reduce the failure rate and maintenance cost.

Technique specifications:

Machine modle	DL300	DL500	DL630
Twisting section(m)	0.035-0.937	0.073-2.5	0.8-6.7
Diameter of single wire(mm)	0.05-0.28	0.08-0.45	0.16-0.63
Max speed(RPM)	3000	3000	2000
Power(KW)	3.7	5.5	7.5
Gross weigh(KW)t	30	150	550





FAQ1
Q1: How long is the delivery time?
A1: It will take 20 days from the beginning to the end of the production.
      It takes more than 30 business days to customize complex mechanical equipment.
Q2: What is terms of payment? MOQ?
A2: T/T. 1 set.
Q3: How do you gurantee the machine stable operating?
A3: We do pre-shipment test for every single piece of machine.
      We have seperate QC, delivery, sales and after-sales departments.
      Also strict management process from pre-sales to after-sales.
Q4: How is your after-sales service?
A4: 1 year warranty with 60+ oversea after-service engineers
     (oversea after-service team of high efficient, professional and enough experience for various non-standard project) .
Q5: How can I install my machine when it arrives?
A5: For simple and semi-auto machine, we will send manual instruction and teaching video.
      For complex operation, we will send the engineers overseas to help client installing, operating and training.

Our Services
What to provide customers with after-sales service?
Pre-sales services:
1. Inquiry and consulting support.
2. Customized design program.
3. Pre-sale training: in order to guarantee all customers fully to operate the machine, if a customer needs, we can help our customer training, includes:
1) Correct operating mode.
2) Correct maintenance way.
3) Remove simple problem of our product.
After-sales service:
Since the shipment date, our company freely assuring period of after-sale maintenance service is:
1) 1year for mechanical part.
2) 6 month for electrical part.
3) Offer lifetime consultation on problems occurred.

Our products include:
1. Silicone strip equipment series.
2. 3D printer filament extruders.
3. LED strip equipment series.
4. Rubber processing machines.

Since our company was founded, over the past 13 yeas, our products have been extensively exported to Africa, Southeast Asia, Latin America, Europe and other markets.
