Soft Silicone High Temperature Line Extruder
Dongguan Dinglong Electrical Machinery Co., Ltd.- After-sales Service:The Warranty for Normal Use Is One Year, Excluding
- Driven Type:Electric
- Condition:New
- Certification:ISO
- Warranty:12 Months
- Screw:Single-Screw
Base Info
- Model NO.:DL45,65,80,90
- Extrusin Output(Max.):70kg,H
- Transport Package:Wooden Box
- Specification:1200*1000*1200
- Trademark:DL
- Origin:China
- HS Code:5305
- Production Capacity:10000pieces,Year
Description
Basic Info.
Model NO. DL45/65/80/90 Extrusin Output(Max.) 70kg/H Transport Package Wooden Box Specification 1200*1000*1200 Trademark DL Origin China HS Code 5305 Production Capacity 10000pieces/YearProduct Description

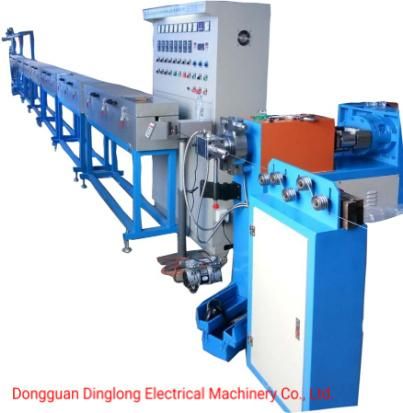

Soft silicone high temperature line extruderApplication:apply to extruding single core or sheath of silicone cable
Equipment components:
- Payoff(driven,non-driven,pintle,shaftless,porlal type)
- Preheater(optional)
- Wire straighting device
- Extruder
- Diameter gauge
- Ink jet printer or mark printer(optional)
- Vulcanization tunnel
- Cooling trough(optional)
- Capstan
- Accumulator(optional)
- Powder coater
- Spark test
- Take up(dual reel,pintle,shaftless,portal type)
- Control panel(manual or PLC type)
DL45 | DL65 | DL80 | DL90 | |
Finished hose diameter | 1.5-30mm | 1.5-30mm | 3.0-60mm | 5.0-80mm |
Line speed (max.) | 30m/min | 30m/min | 30m/min | 30m/min |
Extrusion output (max.) | 60kg/h | 70kg/h | 100kg/h | 150 kg/h |
L/D | 12:1 | 12:1 | 12:1 | 12:1 |
Extruder power | 7.5KW | 11KW | 22KW | 30KW |
High temperature curing length | 0.5m-1.3m | 0.5m-1.3m | 0.8m-1.3m | 0.8m-1.3m |
Horizontal curing length | 6-8m | 6-8m | 8-10m | 8-12m |
Capstan power | 0.75KW | 0.75KW | 0.75KW | 0.75KW |
I Technical advantage (technology wins the market)
1, In 1997, we committed ourselves to the R & D and manufacturing of silica gel equipment and wire and cable equipment, with rich experience
2, Provide customers with solutions for various stages of silicone hose, wire, profile and cable production process, improve the equipment according to customers' products, and provide customers with the best equipment.
3, Provide customers with one-stop services such as plant planning, whole plant equipment investment planning, selection and allocation of developers and staff operation technology training.
4, New product development and certification technical support services. Our technicians are familiar with the production process of various silica gel products and national wire standards, the performance of various silica gel raw materials, and the development and certification of various electronic wires, silica gel wires, network wires, HDMI wires, power wires, Teflon wires, rubber wires and other products
5, With strong market share and good reputation, our company has gathered a large number of information about silica gel, cable materials and various conductors to provide good, most affordable and most convenient investment services.
II Team advantage (team building brand)
1, We have the most professional mechanical equipment design and R & D team in China to provide our customers with the most authoritative solutions to process difficulties and equipment shortcomings.
2, We have the most professional business team in the industry to provide our customers with the most considerate service, the most elaborate technical questions, the most comprehensive investment scheme, the most high-end silicone products and cable production technology.
3, We have the fastest service team in China, set up a 24-hour service hotline and stationed service teams all over the country to provide customers with timely and professional services.
4, We have the most stable production and manufacturing team in China to provide customers with punctual, high-quality and cost-effective mechanical equipment.
5, We have the largest industrial chain cooperative enterprise team in China, which can provide our customers with services other than equipment (rubber and conductor), and provide customers with free proofing and machine testing materials.
III Service advantage (service retention)
The company always attaches importance to customer requirements, has a strong sense of customer service, regularly provides customers with professional equipment maintenance services, has a perfect customer network, and can provide customers with fast localized personal services.
