• Model NO.：HH-50MM,70MM,80,90,120MM
• Motor：Germany-Siemens
• Inverter：Siemens
• Control Box：International Standard
• Demoulding：Automatic
• Bearing：Japan-NSK
• Electric Element：Siemens and Omron
• Available Material：PVC, PE, XLPE, Lshz
• Model Number：Hh-90,100,110,120,150,180,200mm
• Transport Package：Plastic Packing
• Specification：CE ISO
• Trademark：HOOHA
• Origin：Dongguan China
• HS Code：8479400000
• Production Capacity：10 Sets,Month

Team of HOOHA serviceNameeducationPositionMainly responsible for projectSpecializing in project Industry working history    ( year )zanyang XiecollegeGeneral EngineerThe total project design and planning power cable machine15xioahua HucollegeVis general engineerThe total project design and planning net cable,data cable machine10Chnaghong ChengcollegeEngineerDrawings and after-sales serviceTeflon,Optical fiber cable machine25xiuwu ChencollegeGeneral EngineerThe total project design and planning copper drawing machine15lixin YuancollegeEngineerThe project design and planning coppwer wire making technical16zhenghai Qiucollegecable engineerAfter servicecable making and cable factory management servie15jinxin LiucollegeMarketing engineerAfter serviceelectrical engineer7xingguo TangHigh schoolElectrical engineerAfter serviceelectrical engineer10changqiang LiHigh schoolMaintain engineerAfter servicemachina maintain and install service10haipin LiUniversityEngineering director Marketing and salesproject consulting 8sen YangUniversityEngineering translatorMarketing and salesproject consulting 5

Specifications

1, sz stranding machine
2, production speed:80m/min
3, automatic high-speed
4, double wheels
5, single screw


Equipment application

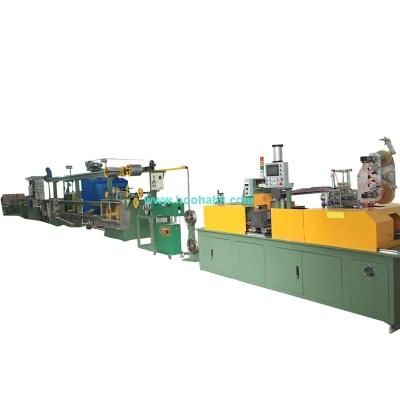

 SZ stranding machine mainly used for SZ stranding and laying-up of ¢ 2.0-¢4.5mm loose tube oil-filled optic-fiber.


Technical parameters of  SZ stranding equipment
 reinforcement core pay-off reel specificationPN800-PN1250MMtension wheel diameterø800mm(double wheels)pay-off reels no of optical-fiber bundle tube12reels(according to clients' requirement)Max laying-up outer diameterø32mmproduction speedmax.80m/minlaying-up pitch(single screw ) (80-1500mm)±5-10mm  SZ stranding angle  ±(4-24)π  max revolution speed of cotton wrapping head  3000rpm max revolution speed of SZ stranding heads  850rpm  cotton wrapping pitch  20mm-50mm  reinforcement core pay-off tension 50N-300N   take-up tension 50-150N  take-up reel specification  PN1000-PN1800  excess loss of laying-up  0.02db/km


Certificate:



Main composition are as follows
 NOAll parts' name and specificationQTY1 Single shaft strengthen core  pay-off rack1SET2tension dancer1SET3Optical fiber tube drive pay-off rack12set4SZ stranding device1set5double-deck concentric with the points  yarn device1set6single-deck yarn and strip longitudinal device 1set7800KG pedrail type haul-off machine1set8Roller holder1set9Single shaft cantilever take-up line machine1set10Electric apparatus, main temperature control cabinet(PC+PLC Computer process control)1set
 Spare Parts Brands

Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF




After service

1). Delivery dates: 45 days
2). Payment: TT or L/C
3). Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5). After service phone number online
