• Model NO.：SS900B6
• Automatic Grade：Automatic
• Installation：Desktop
• Driven Type：Electric
• Function：High Precision and Steady
• Mould Life：Depend on Wire Diameter
• Transport Package：Customs approved wood box
• Specification：SS900B6
• Trademark：SanShine
• Origin：China
• HS Code：8479811000
• Production Capacity：6000sets,year

Overview Detailed Photos

Product Description

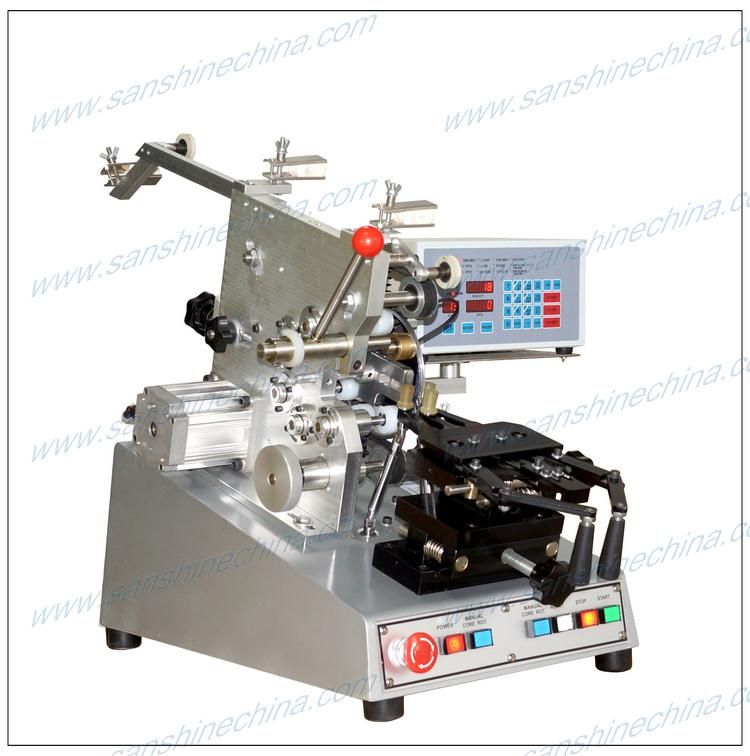

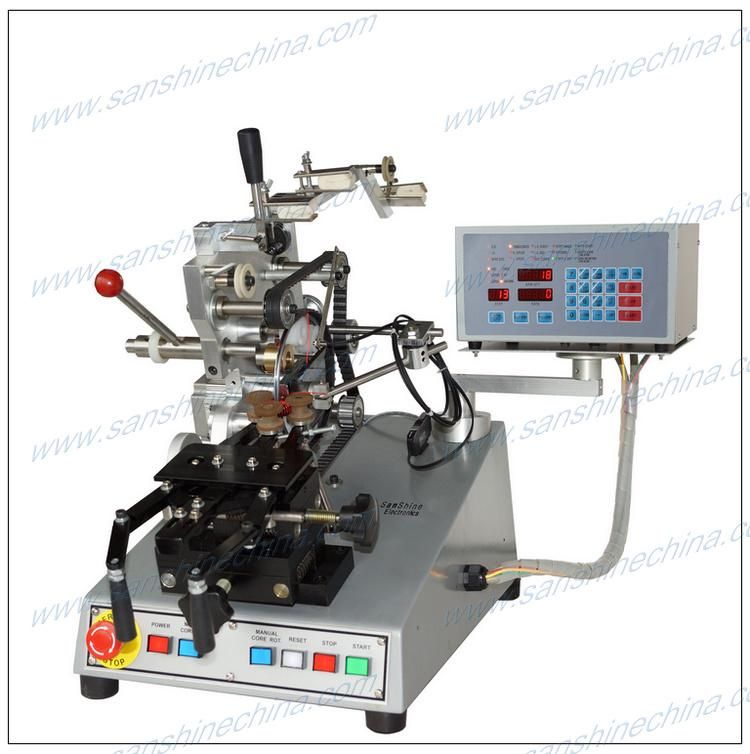

The SS900 series automatic toroid coil winding machine include SS900B series and SS900S series.The SS900B series digital automatic toroid winding machine adopts CNC toroid controller,it is belt type winding shuttle.belt type is used for the thick copper wire winding. It's an accurately and reliability digital toroid-winding machine.is used for toroidal inductor,toroidal transformer,toroidal current transformer,toroidal current sensor,toroidal coil,toroid chock coil, power inductors,power magnetics,UPS inductor,converter inductors,watter metter sensors,toroid current transformer of electronic watter-hour meter, power factor corrector toroid coil, etc.

Features :

1. Collocate belt type winding head,interchangeable roller table with different size shuttle(magazine) for different toroid coil demensions, wire size, turns, so that to reduce the cost. one set standard automatic toroid coil winding machne include one PCS winding shuttle only, other sizes winding shuttles are optional.

2. Hi-tech shuttle for highest efficiency.

3. Separate speed controls for wire loading and winding.

4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.

5. Accurately count turns of winding by high frequency response photo-electricity sensor.

6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.

7. Accurately wire spacing by programmable controller.

8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.
Specification :

Copper wire diameter: 0.07~1.5mm(will be different by different machine model,different shuttle size).

Min. Finished ID: 2.5mm (will be different by different machine model,different shuttle size and coil height).

Finished OD range: 5~150mm(will be different by different machine model,different shuttle size and coil height. )

Max. Speed: 1200RPM

Winding motor: 1/2HP DC brushless motor

Spread motor: Stepping motor

Memory capacity: 999 steps

Power source: AC220V /110V +10%, 50/60 Hz

Dimension: L60x36x60(cm)

Net weight: 40Kgs

SS900B88 10 12 15 or customized0.35 ~1.51220 ~1508 ~80

How to select the best suited automatic toroid coil winding machine for your toroid coil?

Tell us your toroidal coil of data as below please:

1. toroid core outside diameter before winding?
2. toroid core inside diameter before winding?
3. toroid core height before winding?
4. how many windings on this core?
5. how many turns of each winding?
6. how about the copper wire diameter of each winding?
7. provide pictures of product which is better.
