Neoden3V Pick and Place Machine for SMT PCB Assembly Line
Zhejiang NeoDen Technology Co., Ltd.- Condition:New
- Speed:Medium Speed
- Precision:Precision
- Certification:CE
- Warranty:12 Months
- Automatic Grade:Semiautomatic
Base Info
- Model NO.:NeoDen3V
- Type:Medium-speed Chip Mounter
- Board Dimension (X*Y):320*390mm
- Qty of Placement Head:2
- Feeders:44
- Max Mounting Capability:5000cph(Vision off);3500cph(Vision on)
- Ics:10PCS
- External Dimension(Lxwxh):820*680*410mm
- Tape Width:8,12,16mm
- Support Ics:10
- Components Supply Configuration:0402-5050,IC
- Power Supply:220V(Convertible to 110V)
- Transport Package:Funigation-Free Wooden Packing
- Specification:CE
- Trademark:Neoden
- Origin:Zhejiang, Cn
- HS Code:84798962
- Production Capacity:200sets,M
Description
Feeder CapacityTape feeder:44(all 8mm)
Generally, if not customized, the standard reel feeder on machine is: 33x8mm,6x 12mm,3x 16mm Vibration feeder: 0~5 Tray feeder: 5~10
(Customization supported) Board Dimension Maximum:320*390mm Component Range Smallest components:0402 Largest components:TQFP144 Max height:5mm Numbers Of Pumps 3 Placement Accuracy ±0.02mm Operate System WindowsXP-NOVA Power 160~200W Electricity Supply 110V/220V Machine Size 820(L)*680(W)*410(H)mm Packing Size 1001(L)*961(W)*568(H)mm Net Weight 60kg Gross Weight 85kg
If require less feeder model, could take below NeoDen3V--Standard for ref.
Feeder CapacityTape feeder:24(all 8mm)
Generally, if not customized, the standard reel feeder on machine is: 18x8mm,4x12mm,1x16mm. Vibration feeder: 0~5 Tray feeder: 5~10
(Customization supported) Board Dimension Maximum:320*420mm Component Range Smallest components:0402 Largest components:TQFP144 Max height:5mm Numbers Of Pumps 3 Placement Accuracy ±0.02mm Operate System WindowsXP-NOVA Power 160~200W Electricity Supply 110V/220V Machine Size 820(L)*650(W)*410(H)mm Packing Size 1001(L)*961(W)*568(H)mm Net Weight 55kg Gross Weight 80Kg
Development:
NeoDen have built long-term cooperation with 7 overseas agents and 5000 customers in more than 110 countries.
Delivery:
By TNT or as customer's requirement.
This model can combine with T962A reflow oven, PM3040 solder printer to build up a small SMT production line, which is very popular by Amrican and European electronics enthusiasts.
If you prefer high precision type smt production line, you can check

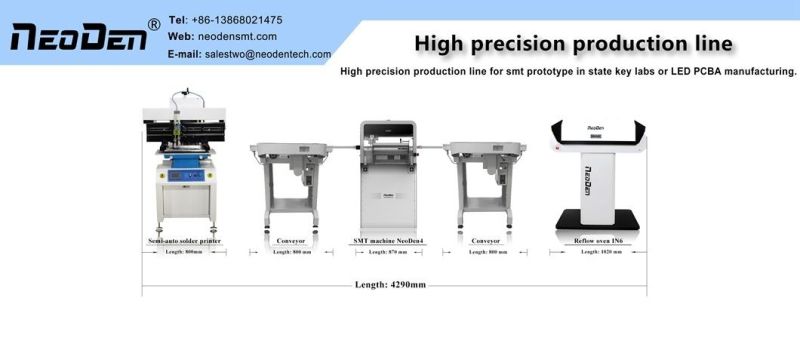

4-head pick and place machine assembly line:

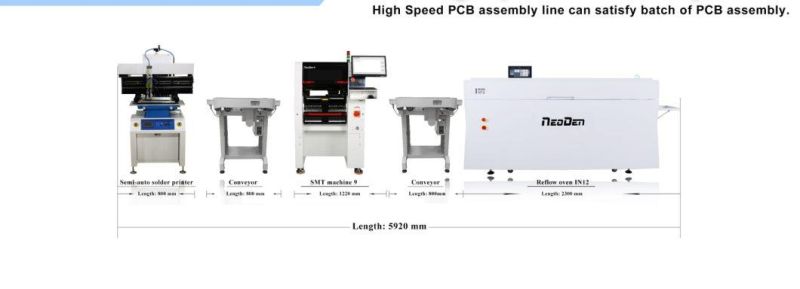

6- head pick and place machine assembly line:

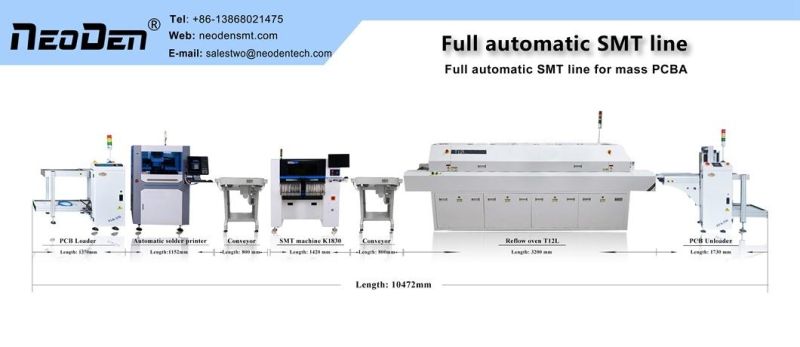

8- head pick and place machine assembly line:
Generally, if not customized, the standard reel feeder on machine is: 33x8mm,6x 12mm,3x 16mm
(Customization supported)
If require less feeder model, could take below NeoDen3V--Standard for ref.
Feeder Capacity
Generally, if not customized, the standard reel feeder on machine is: 18x8mm,4x12mm,1x16mm.
(Customization supported)
Development:
NeoDen have built long-term cooperation with 7 overseas agents and 5000 customers in more than 110 countries.
Delivery:
By TNT or as customer's requirement.
This model can combine with T962A reflow oven, PM3040 solder printer to build up a small SMT production line, which is very popular by Amrican and European electronics enthusiasts.
If you prefer high precision type smt production line, you can check
4-head pick and place machine assembly line:
6- head pick and place machine assembly line:
8- head pick and place machine assembly line:
