• Model NO.：BZW-882DH50+X
• Customized：Non-Customized
• Weight：298 Kg
• Cable Diameter：2-14mm
• Transport Package：Wooden Case
• Specification：1100*615*1270mm
• Trademark：bozhiwang
• Origin：Changzhou, China
• HS Code：8538900000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. BZW-882DH50+X Customized Non-Customized Weight 298 Kg Cable Diameter 2-14mm Transport Package Wooden Case Specification 1100*615*1270mm Trademark bozhiwang Origin Changzhou, China HS Code 8538900000 Production Capacity 1000 Set/Year

Product Description

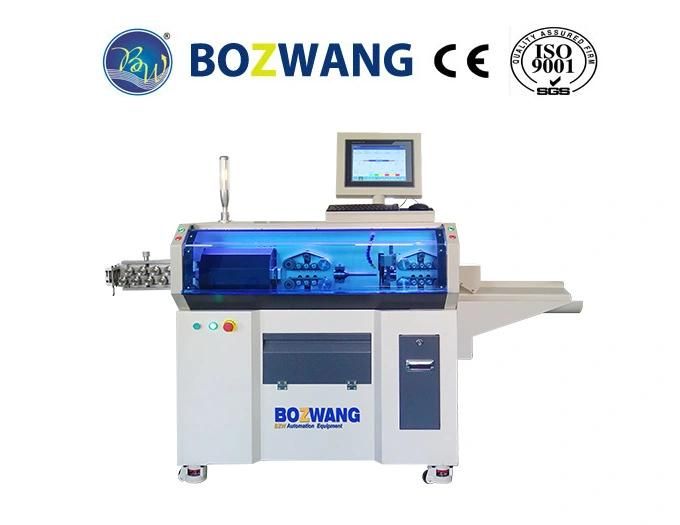

BZW-882DH50+X Computerized Cutting and Stripping Machine for 50 Sq. mm Cable with Rotary and Double Blades

 Product feature
 1.This machine is mainly aimed at processing new energy cable, power cable, coaxial cable, RF cable, communication cable, multi-core wire, shield net wire, which can achieve functions of automatic cutting, rotary stripping and multi-layer cable stripping.
2. The machine is equipped with advanced independent rotary cutting core, two sets of cutting and stripping blades, with the design of independent and adjustable double-blade frame, which make the cross section perfect after cutting.
3. The machine can cut and strip different types of wires and cables without tool change.
4. Cable parameters and different processing programs can be stored in the system, it takes about 5s to switch to different wire specifications.
5. More than one layer can be stripped on both ends of the wire.
6. The machine is multi-functional, there have been reserved some communication ports for connecting auxiliary devices.
7. Auxiliary devices: automatic wire feeder, wire collecting device, mechanical arms, wire winding unit and so on.



Technical parameters

Outer diameter:Φ 2-14mm
Stripping range: 4-25mm²
Cutting length: 0.1-100000mm
Cutting precision: ±(0.2+0.002*L)mm
Drive:Belt conveyor , 8 wheels independently servo driven
Stripping type:Rotary and stripping cutter
Stripping length: wire head 0.1-200mm, wire end 0.1-100mm
Tool materials: Imported high speed steel and import tungsten steel
Stripping speed: 450-650pcs/h
Power: AC220V/110V  50/60HZ
Motor: 0.75KW
Air pressure:0.4-0.6 Mpa
Weight: 298kg
 Dimension: 1100*615*1270mm
Display mode: touch screen
Display interface: 10 Inch Touch screen with English and Chinese system

Technical Support
After-sales service and technical support
1. Direct access to BZW Machinery specialists
2. Free telephone support all the time
3. Assist your workers in performing adjustment.
4. Remote access for very efficient trouble shooting
5. Fast reaction time for on-site repair
6. Breakdown plan with guaranteed reaction times

Installation & more
The first stage of production is crucial to achieving high precision results. Know-how and correct handling can ensure trouble-free wire processing for your company.
Installation
Professional installation is the key to a smooth production start. Our experts lead you through the main functions of the equipment. We set up your machine and produce your first custom sample application on the product together with you.
Production support
New machine or software solutions require time and professional know-how.To ensure production runs smoothly and to avoid inefficiencies, our machinery offers a variety of wire processing solutions suited to your individual demands. Ask your representative for a personal product demonstration or a Product Demo Video. Or our service engineers are available to assist your operators at the beginning of production.
