Thread Taper: Automatic Teflon Taping Machine

Ningbo Yiluqihang Educational Technology Co., Ltd.
  • Warranty：1
  • Condition：New
  • Voltage：220V
  • Packaging Material：Wooden
  • Automatic Grade：Automatic
  • Application：Medical, Food, Beverage, Apparel

Base Info

  • Model NO.：MS-001
  • Tape Width：7mm,10mm,14mm,18mm
  • Power：750W
  • Pressure：0.6MPa
  • Weight：67kg
  • Working Speed：3-5pieces,Second (Wrap 2-3 Circles)
  • Transport Package：by Sea or by Express
  • Specification：72*52*52cm
  • Trademark：Masion
  • Origin：China
  • HS Code：8479899990

Description

FeatureNo need for a dedicated master, the number of turns and winding speed can be set by intuitive operation. High efficiency and high quality, an average of 3 seconds to complete a complete process, the normal operation without any rework and loss,
it is 5 times the efficiency of the traditional skilled manual operation, raw material tape winding closely, not easy to fall off. Servo drive data is accurate, reliable, and stable performance.1 hour to produce 600-800 valves.Automatic winding machine, a new automatic winding method. Completely replace
 the traditional manual winding method, improve quality and efficiency.
Reduce consumption, cost savings, widely used in drinking water, medicine,
chemical, used for plumbing connector, water purifier connector, food industry
mechanical joint, valve industries, gas/air connector joint, fire fighting ringing
connector joint engineering and other industries.Features:

This automatic Thread Seal Teflon/PTFE tape wrapping machine is suitable for wrapping Teflon/PTFE tape for all screwed joints,
including pipe threads, valve fittings, plumbing fittings, water purifier connectors, hydraulic oil pipe fittings, tracheal joints and so on.
It highly improves production efficiency.

  • Easy to operate, no need for skilled workers, the number of turns and winding speed can be set

  • High efficiency and high quality, no rework and loss

  • Finishing a complete process in an average of 3 seconds

  • 5 times faster than the traditional skilled manual operation, 1 hour to produce 600-800 pieces

  • Winding closely and tightly, not easy to fall off

  • The data of servo drive is accurate, reliable and stable

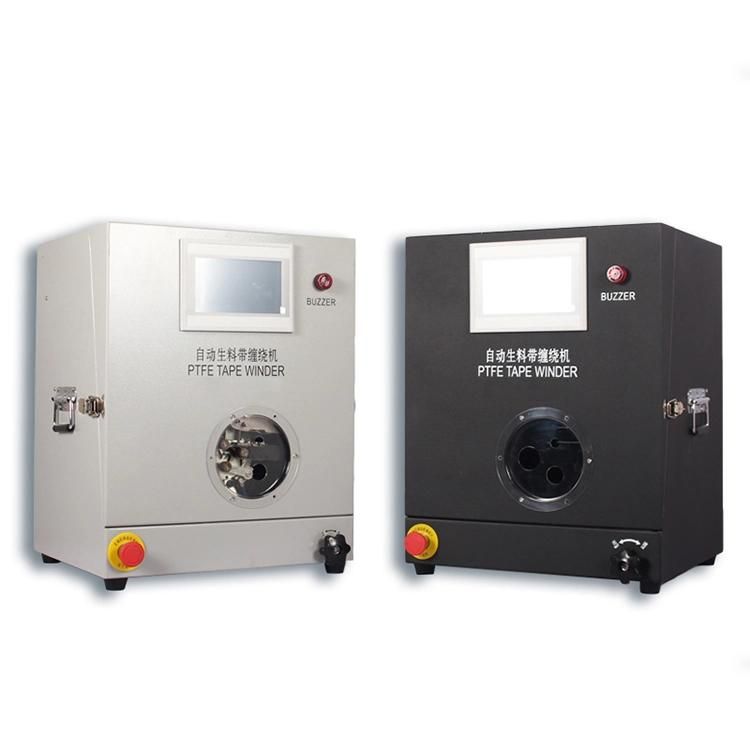

    Product PictureThread Taper: Automatic Teflon Taping Machine

Thread Taper: Automatic Teflon Taping Machine

Teflon taping machine(Thread winding machine, PTFE Thread Seal Tape Wrapping Machine,PTFE tape winder,thread tape machine) is designed for automatic winding of PTFE tape to thread parts, which can effectively improve production efficiency and the tightness of PTFE tape to thread parts; the speed of automatic winding a thread part is 3 to 4 times faster than that of manual winding; it takes only 2-4 seconds to wind a thread part; in addition, the machine has the following advantages:
1.The winding direction of the PTFE tape is correct, and the anti-winding will not occur .
2. When winding the PTFE tape to the thread part, the PTFE tape of each layer is closely bonded with the thread of the thread part, and there is no need to press the PTFE tape by hand again, so as to ensure good thread sealing performance and improve the efficiency of continuous operation. .
3. It is convenient and quick to install and replace the PTFE tape without any tool.

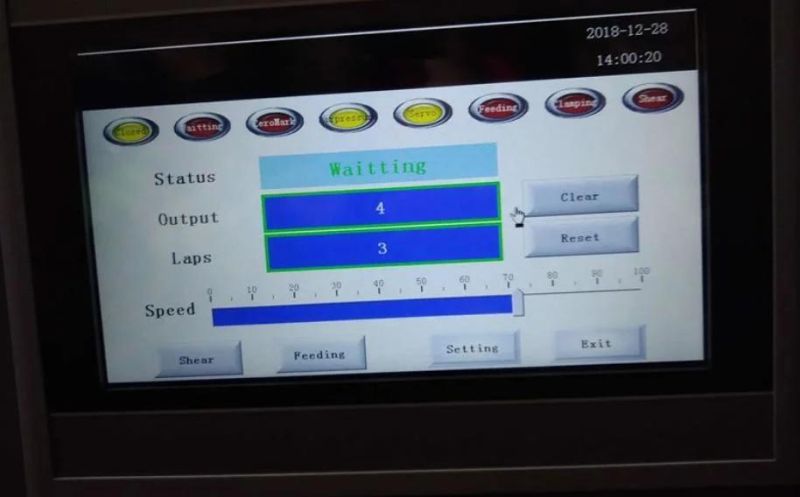

4.Using touch screen parameter setting and selection, you can set winding number and winding speed, automatic counting and other functions. .
5. The internal structure of the machine is a combination of servo motor drive and pneumatic components, which does not pollute the operator and the use environment during the winding process, and a door protection device is installed at the front door of the chassis, which will not cause any risk accidents to the operator when replacing the PTFE tape and cleaning. .
6.The specification of thread parts suitable for winding: 1/8' to 1-1/2'.  (3.175MM-38.1MM)

7.The PTFE tape could be used for different sizes such as 5mm width(0.2'), 7mm width(0.27'), 10mm width(0.39'),14mm width(0.55'),18mm width(0.71').
