• Model NO.：Jaguar N250
• Model：Jaguar N250
• Number of Heating Zones：1
• Weight：700kg
• Solder Pot Capacity：220kg
• Air Supply：0.5MPa
• Solder Power：380V 8kw
• Heating Zone Longth：800mm
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Jaguar
• Origin：Shenzhen, China
• HS Code：85151900
• Production Capacity：100PCS,Month

Basic Info.

Model NO. Jaguar N250 Model Jaguar N250 Number of Heating Zones 1 Weight 700kg Solder Pot Capacity 220kg Air Supply 0.5MPa Solder Power 380V 8kw Heating Zone Longth 800mm Transport Package Wooden Case Specification CE Trademark Jaguar Origin Shenzhen, China HS Code 85151900 Production Capacity 100PCS/Month

Product Description

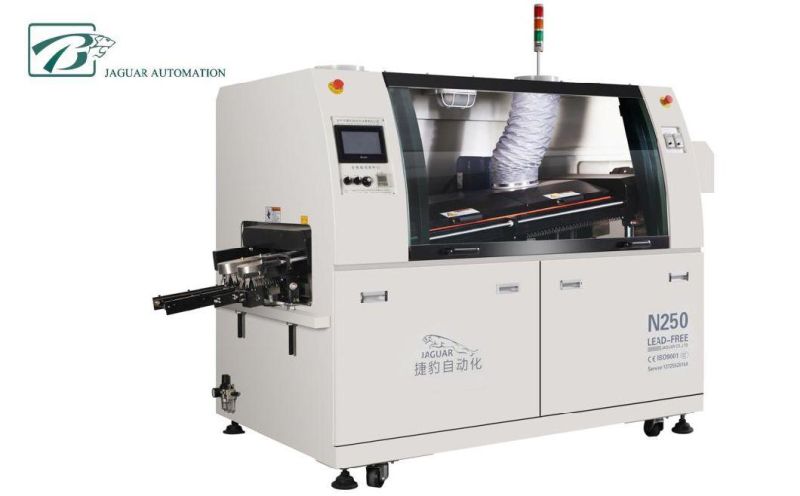

JAGUAR Lead-free Hot Air Wave Soldering N250Touch Screen Style

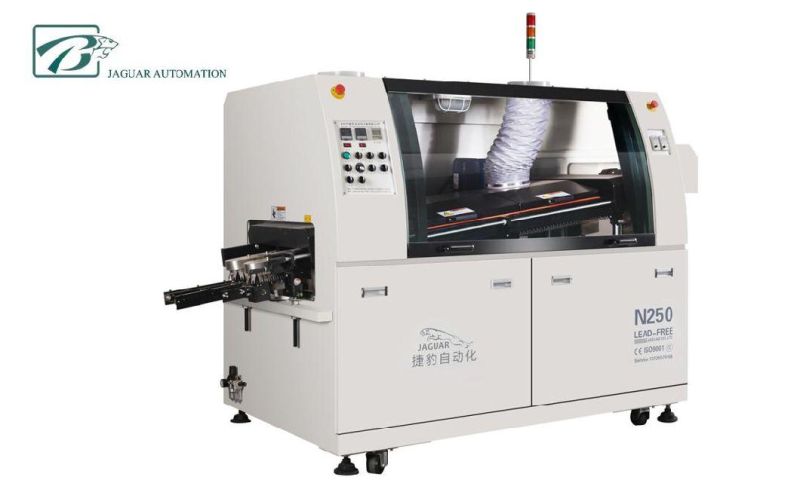

Button Style

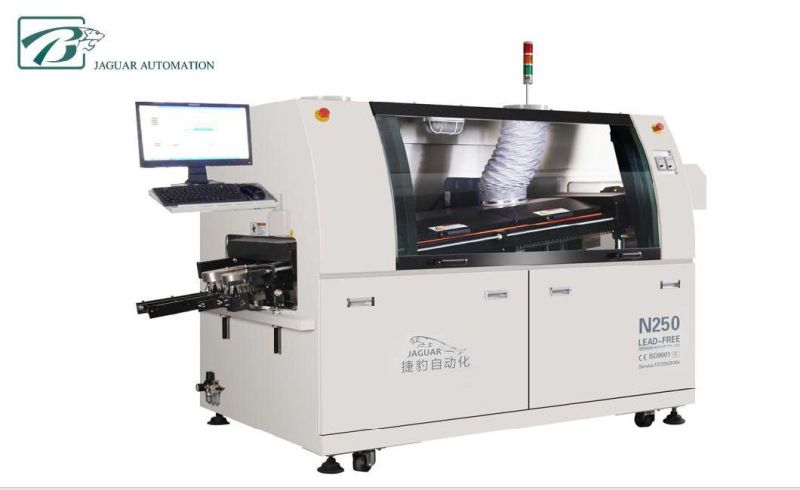

PC Style
Specification:


Model No.	JAGUAR N250
Number of Pre-heaters	2
Pre-heater Passage	800mm
Body Size	1800(L)*1200(W)*1600(H)
Outside Dimension	2500(L)*1200(W)*1600(H)
Weight	800KG
Total/Steady consumption	11KW/4-6KW
Air Supply	0.5MPa
Preheating Style	Hot air
Preheater Consumption	220V 5KW
Control  Method	Button+PLC (Option: Touch Screen, PC)
Range of Temp. Set-point	Room Temperature---300ºC
Preheating Time	About 10-15mins for Setting 150ºC
Solder Application	Lead-free / Sn-Pb
Solder Pot Capacity	220KG
Solder Pot Temperature	300ºC
Solder Pot Consumption	380V 6KW
Solder Temp. Control Method	PID&SSR
Wave Motor Power	180Wx2pcs 220V
Solder Melting	About 120mins for Setting 250ºC
PCB  Width	50-250mm
Conveyor  Speed	0-1800mm/min
Conveyor  Direction	L→R (R→L Optional)
Solder Angle	4-7 º
Flux Pressure	3-5 Bar
Flux capacity	3.2L

Introduction:
1. Automatic conveying power system and auto synchronous board feeding functions.2. Solder Pot peak uses frequency conversing speed adjustment which can independently control the wave height.3. Fluxer system using transverse Japanese spray nozzle, driven by pneumatic cylinder and PLC control, accurate and reliable.4. PLC is used to control the machine, to ensure the reliability and stability of the system.5. Pre-heaters using Infrared heating element, heat radiated efficiently to the circuit board with fast ramp up and fully activating liquid flux.6. Special alloy solder fingers, strengthened double v-groove.7. Solder-motor adopts imported high frequency conversion motor with independent control, stable performance and long lifetime.8. Pre-heater passage with modularized design, meet with environmental protection requirement, safety and convenient to cleanup.9. Preheaters uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.10. Timer startup feature for solder pot, solder melted within 90 minutes.11. Automatic finger cleaner ensure the cleanliness of solder fingers.
