• Model NO.：DL120
• Extruder Power：55kw
• Transport Package：Export Wooden Case
• Trademark：DL
• Origin：China
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. DL120 Extruder Power 55kw Transport Package Export Wooden Case Trademark DL Origin China Production Capacity 100 Sets/Year

Product Description

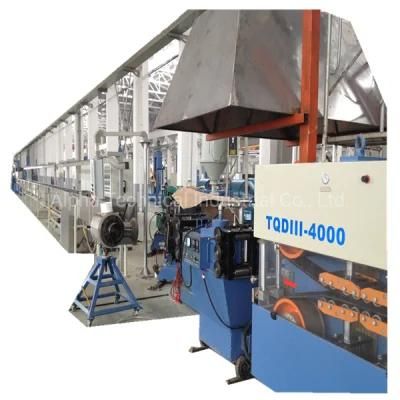

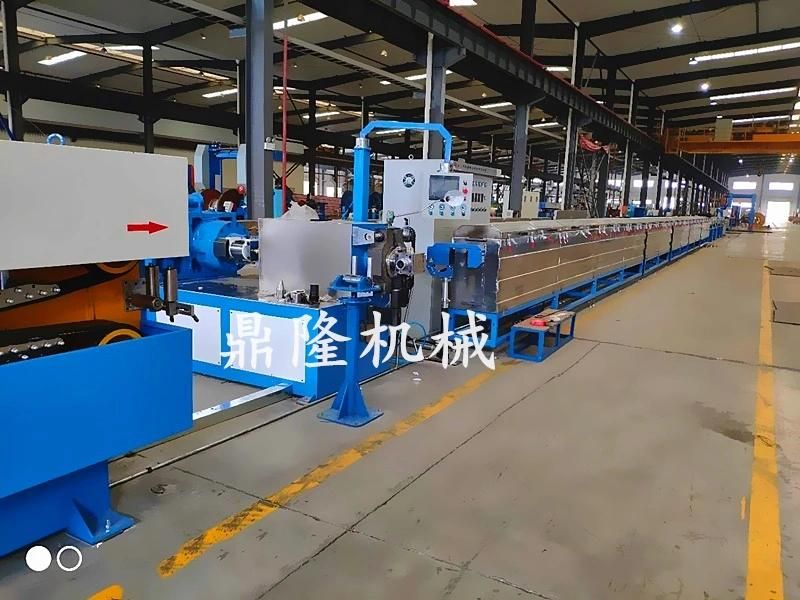

Silicone Cable Extrusion Line equipment
Application:

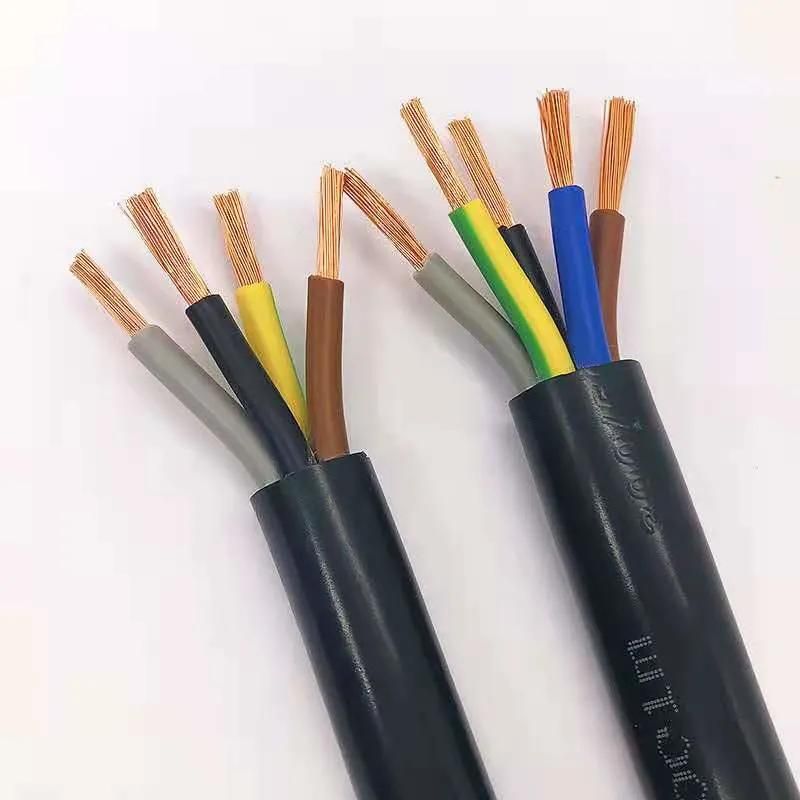

                             apply to extruding core or sheath of silicone cable. Equipment Elevation
 Technical Specifications

	DL90	DL100	DL120	DL150
Finished diameter	5-30mm	10-40mm	15-50mm	20-70mm
Line speed (max.)	70m/min	50m/min	40m/min	30m/min
Extrusion output (max.)	200 kg/h	260 kg/h	350 kg/h	400 kg/h
	12:1	12:1	12:1	12:1
Extruder power	22KW	45KW	55KW	75KW
Payoff  reel	PN800-1250	PN800-1250	PN1250-1600	PN1600-2500
Curing length	24m	28m	30m	36m
Capstan power	7.5KW	10KW	15KW	20KW
Take-up reel	PN800-1250	PN800-1250	PN1250-1600	PN1600-2500

Equipment Components

1. Payoff (driven, non-driven, pintle, shaftless, portal type)
2.  Preheater (optional)
3. Wire straighting device
4. Extruder
5.  Diameter gauge
6.  Ink jet printer or mark printer (optional)
7. Vulcanization tunnel
8. Cooling trough (optional)
9. Capstan (wheel )
10. Accumulator (optional)
11. Powder coater
12. Spark test
13. Take up (dual reel, pintle, shaftless, portal type)
14.  Control panel (manual or PLC type)

Our team

1. We have the most professional mechanical equipment design and R & D team in China to provide our customers with the most authoritative solutions to process difficulties and equipment shortcomings.

2. We have the most professional business team in the industry to provide our customers with the most considerate service, the most elaborate technical questions, the most comprehensive investment scheme, the most high-end silicone products and cable production technology.

3. We have the fastest service team in China, set up a 24-hour service hotline , and set up stationed service teams all over the country to provide customers with timely and professional services.

4. We have the most stable production and manufacturing team in China to provide customers with punctual, high-quality and cost-effective mechanical equipment.

5. We have the largest industrial chain cooperative enterprise team in China, which can provide our customers with services other than equipment (rubber and conductor), and provide customers with free proofing and machine testing materials.
