• Model NO.：HH-50MM,70MM,80,90
• Wire Spec.(mm)：0.8-8mm
• Wire Speed(M/Min)：Max500
• Take-up Bobbin Size(mm)：500-630mm
• Take-up Line Power：3HP
• Transport Package：Wood Package
• Specification：CE ISO SGS
• Trademark：HOOHA
• Origin：Dongguan
• HS Code：8479400000
• Production Capacity：5 Sets,Month

HOOHA  R&D TEAMNamePositionworking experienceMain research successful projectzanyang XieGeneral engineer10 yearsDrawing and designerpower cable machinexiaohua HuVice general engineer8 yearsDesignercate5 cable machinejingxin Liucable technology engineer15 yearscable making designerteflon cable machineweihua Lielectrical engineer7 yearselectrical researchover seas machine installkangyou Wuproduce manager6 yearsproduct producecar cable machineJacksells manager5 yearsexport service 3 times overseas after service



Application:

This is designed for insulating low-voltage building wire with various plastic materials including PVC, HFFR, LSHZ.etc.
Also it is suit for making power cable, building wire, communcation cable, and so on.

Specification:
 Machine modelHH-WE-60HH-WE-70HH-WE-80HH-WE-90Pay-off line typeDouble axes /Dynamic drum take-upDouble axis wayPay-off bobbin size(mm)Φ400-630mmΦ400-630mmΦ400-630mmΦ400-630mmScrew diameter(mm)Φ65Φ70Φ80Φ90L/D of screw25:1BM type25:1BM type25:1BM type25:1BM typeExtrusion capacity(kg/hr)100140200250Main unit power20HP30HP40HP50HPWire spec.(mm)Φ0.8-8Φ1.5-12Φ2-20Φ3-25Cooling deviceSingle layer/DoubleSingle layer/DoubleSingle layer/DoubleSingle layer/DoubleAccumulator capacity(m)250200200200Capstan power3HP5HP7.5HP7.5HPWire speed(m/m)MAX500MAX500MAX450MAX400Take-up line typeDouble axes bundle packing /axis packing /swaying tray coiler packingDouble axis way /axisTake-up bobbin size(mm)Φ500-630mmΦ500-630mmΦ500-630mmΦ500-630mmTake-up line power3HP5HP5HP5HP

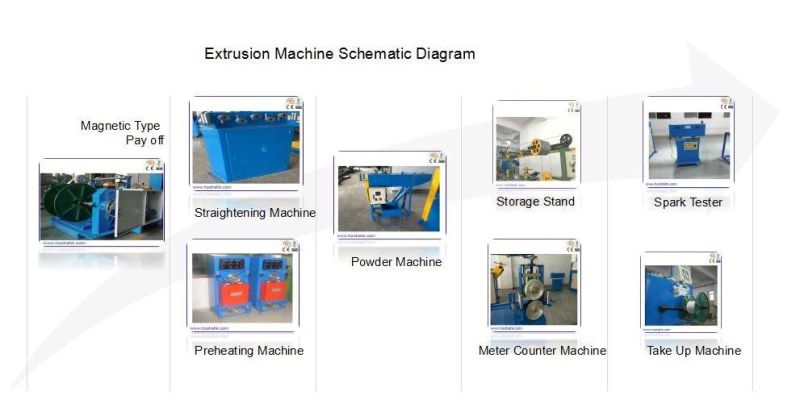

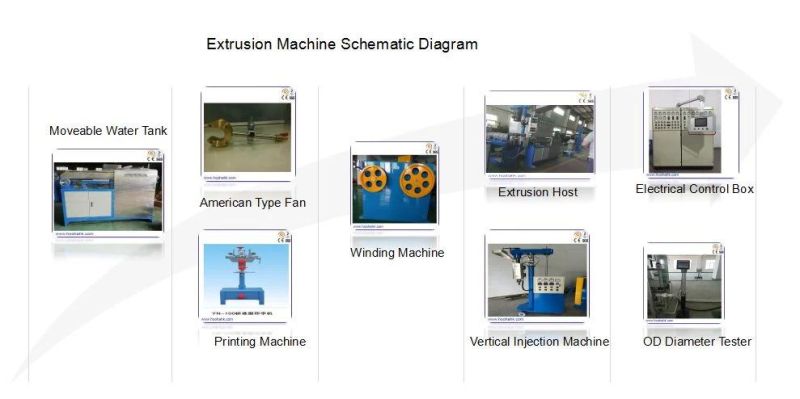

Consisting Components:
 1. Double shaft type Pay off stand 2. Dancer3. Main extruder4. Automated loader & dryer5. Crosshead6. Double layer Moving trough7. Main cooling trough8. Water wiper9. Digital Diameter controller10. Mark printer11. Accumulator12. Capstan13. 15KV Spark tester14. Meter counter15. Dual shaft type Take up16. Master control Control box


HOOHA  Spare Parts Brands:

Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF



After Service:

1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online


Contact Information:



Add: 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan  City, Guangdong Province,China

If the machine is not suitable for your wire spec., please contact me.




Where are we:

Hongkong airport to Humen by boat 2 hours
Guangzhou airport to Humen by car 2 hours
Shenzhen airport to Humen by car 1 hour
Guangzhou South high speed train station to Humen 20 minutes
Shenzhen North high speed train station to Humen 20 minutes
