• Model NO.：HH-50MM,70MM,80,90,120MM
• Motor：Germany-Siemens
• Inverter：Siemens
• Control Box：International Standard
• Certificate：ISO
• Bearing：Japan-NSK
• Electric Element：Siemens and Omron
• Available Material：PVC, PE, XLPE, Lshz
• Weight：7000kgs
• Transport Package：Plastic Packing
• Specification：CE ISO
• Trademark：HOOHA
• Origin：Dongguan China
• HS Code：8479400000
• Production Capacity：10 Sets,Month

HH-50MM extrusion machineNO.Condctorconductor sectionMax.WireInsulation materialMax.Speed1Solid0.5-10mm²10mmPVC,PE,XLPE,HFFR,LSHZ460M/MIN2stranded1.0-16mm²3Bunched0.5-25mm²
HH Extrusion MachineNO.Pay offTension controllerMain estrusionCooling troughTractionTake up1630MM500KG50+35MMSingle layer  Double layer600KG800MM2800MM60+35MM1000MM31000MM70+35MM1250MM41250MM80+35MM1600MM


 90+35MM

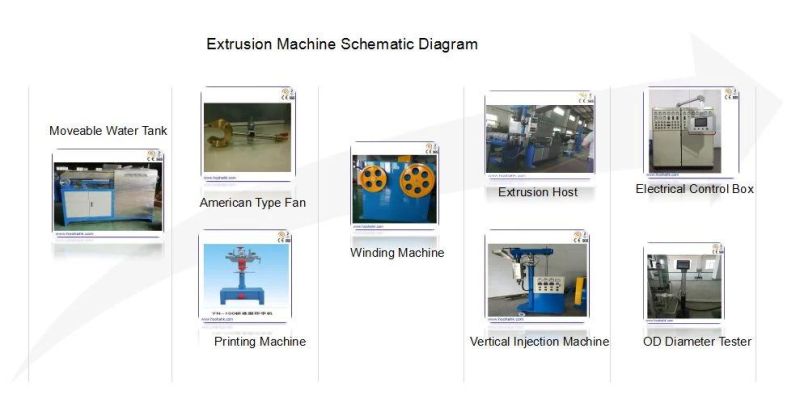

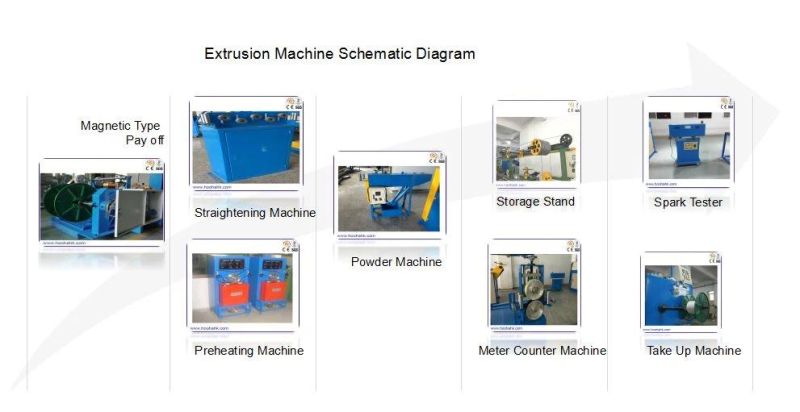

Consisting Components:
1. Double shaft type Pay off stand2. Dancer3. Main extruder4. Automated loader & dryer5. Crosshead6. Double layer Moving trough7. Main cooling trough8. Water wiper9. Digital Diameter controller10. Mark printer11. Accumulator12. Capstan13. 15KV Spark tester14. Meter counter15. Dual shaft type Take up16. Master control Control box


HOOHA Extrusion MachineNO.Model50+35MM60+35MM70+35MM80+40MM90+50MM1Pay off typeinitiatire typeinitiatire typeNo-axis magneticNo-axis magneticNo-axis magnetic2Screw L/D



 3Out put110KG170KG210KG270KG390KG4Main motor15HP30HP30HP40HP50HP5Wire diameter1-4MM1.5-8MM2-10MM3-20MM4-45MM6Temperature control7 zones8 zones8 zones9 zones9 zones7Cooling deviceFolds W type/U typeFolds W type/U typeSingle layer/doubleSingle layer/doubleSingle layer/double8Capstan motor3HP4HP5HP7.5HP7.5HP9Take upDouble axisDouble axisNo-axis magneticNo-axis doubleNo-axis doublec




Team of HOOHA  serviceNameeducationPositionMainly responsible for projectSpecializing in project Industry working history
 ( year )zanyang XiecollegeGeneral EngineerThe total project design and planning power cable machine15xioahua HucollegeVis general engineerThe total project design and planning net cable,data cable machine10Chnaghong ChengcollegeEngineerDrawings and after-sales serviceTeflon,Optical fiber cable machine25xiuwu ChencollegeGeneral EngineerThe total project design and planning copper drawing machine15lixin YuancollegeEngineerThe project design and planning coppwer wire making technical16zhenghai Qiucollegecable engineerAfter servicecable making and cable factory management servie15jinxin LiucollegeMarketing engineerAfter serviceelectrical engineer7xingguo TangHigh schoolElectrical engineerAfter serviceelectrical engineer10changqiang LiHigh schoolMaintain engineerAfter servicemachina maintain and install service10haipin LiUniversityEngineering director Marketing and salesproject coansulting 8sen YangUniversityEngineering translatorMarketing and salesproject consulting 5
