Bare Copper Wire, Tinned Cable Wire Plastic Winding Cutting Extrusion Twisting Bunching Coiling Winding Rewinding Machine

Kunshan Fuchuan Electrical and Mechanical Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Mould Life：300,000-1,000,000 Shots

Base Info

  • Model NO.：FC-200B
  • Type：Double Stranding Machine
  • Single Wire Dia：0.016-0.08
  • Pitch：0.8-4.0
  • Take up Bobbin Size：Diameter 200mm
  • Main Motor Power：2.2kw
  • Magnetic Powder Clutch：0.05kgf
  • Operation Mode：Touch Screen Operation
  • Max Rotating Speed：5000rpm
  • Color：Sky Blue
  • Direction of Lay：Optional for Right or Left
  • Transport Package：Standard Packing
  • Specification：ISO9001
  • Trademark：Fuchuan
  • Origin：Jiangsu Kunshan
  • HS Code：8479111000
  • Production Capacity：50sets,Month

Description

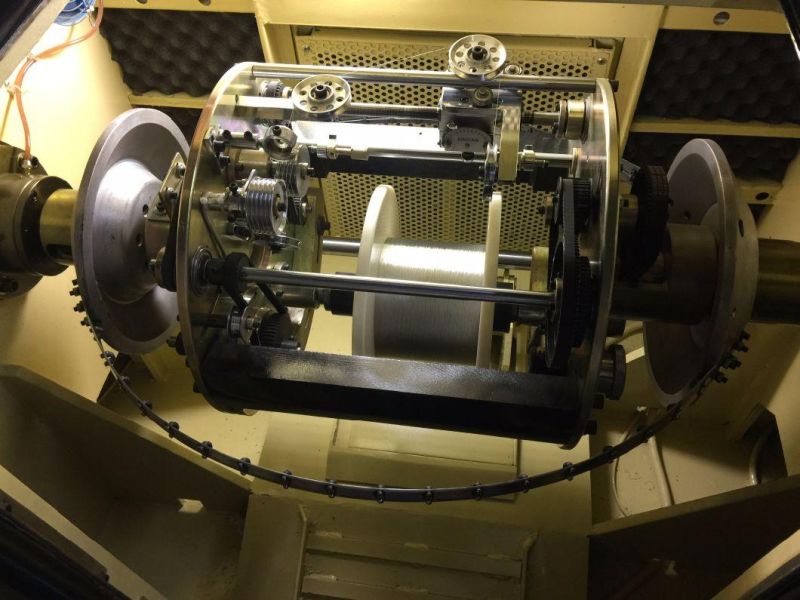

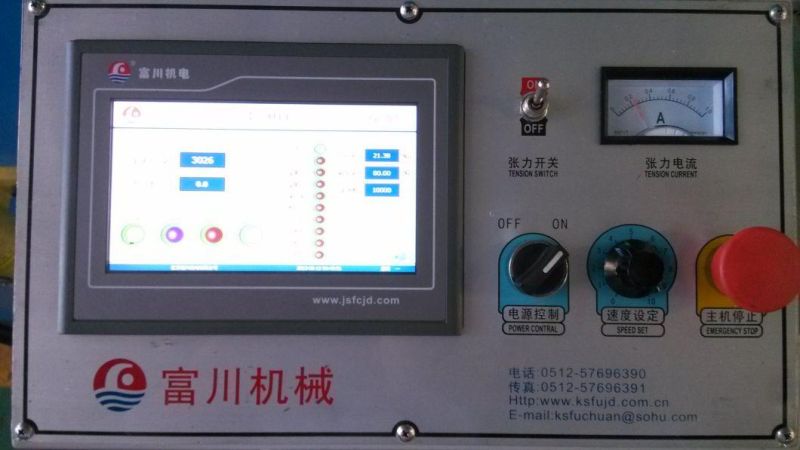

Equipment modelsFC-200BTwisting usageIt is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.Single wire dia(mm)φ0.016-φ0.08Stranding section area (mm²)0.0014-0.035Pitch(mm)0.8-4.0(14zones)Direction of layOptional for right or leftOuter dia*bore*outer widthφ200*φ31*135Max rotating speed5000(10000twist)Main motor power2.2KWInverter power2.2KWTension control methodTouch screen+PLC+magnetic powder clutch,it may ensure the constant tension from empty bobbin to full bobbinMagnetic powder clutch0.05kgfProtectionMachine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived.Brake modeElectromagnetic brakeTraversing methodRolling ring drive units,winding pitch and breadth are adjustableOperation modeTouch screen operationDimension(mm)2000L*960W*1100HBare Copper Wire, Tinned Cable Wire Plastic Winding Cutting Extrusion Twisting Bunching Coiling Winding Rewinding Machine
