• Model NO.：P100,P120,P140,P180,P210

Basic Info.

Model NO. P100/P120/P140/P180/P210

Product Description

AUTO-WRAPPING MACHINE FOR CIRCULAR OBJECT

1.Features

• High speeds coil wrapping with PVC, PE film, PP woven band, or paper.
• Screen touch Graphic Operation Terminal makes it easy to operate.
• The 4 arms carrier, driven by motor, turns the coil smoothly for wrapping.
• You may input and keep 99 types of coil wrapping data in the PLC memory.

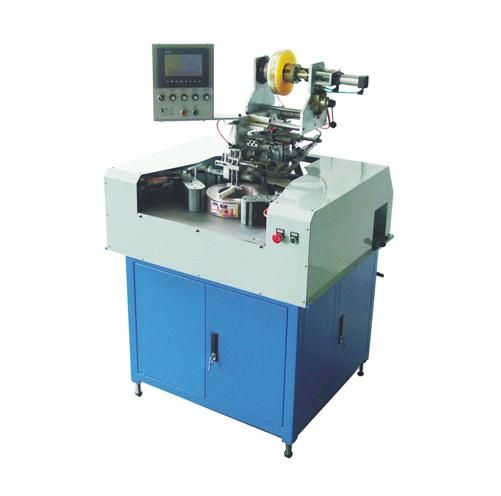

2.Equipment Picture




3.Technical Parameters

Model	Height (mm)	Outside Diameter O.D (mm)	Inside Diameter I.D (mm)	Coil Weight (Max.)	Wrapping Material	Width of packing material (mm)	Thickness of  packing material (mm)
P100	50~100	180~460	120	35kg	PVC,PE film	40	0.04~0.07
P120	70~120	220~460	140	40kg	PVC,PE film	45	0.04~0.07
P140	70~140	300-600	180	60kg	PVC,PE film PP woven band Paper	50	0.04~0.07
P180	90~180	320~600	180	80kg	PVC,PE film PP woven band Paper	60	0.04~0.07
P210	100~210	400~800	250	100kg	PVC,PE film PP woven band Paper	80	0.04~0.07
