Motorized Pay-off/Take up Machine
JIANGSU YESSJET PRECISE MACHINERY CO., LTD.- Automatic Grade：Semi-automatic
- Driven Type：Electric
- Warranty：12 Months
- Origin：China
Base Info
Description
Product Description

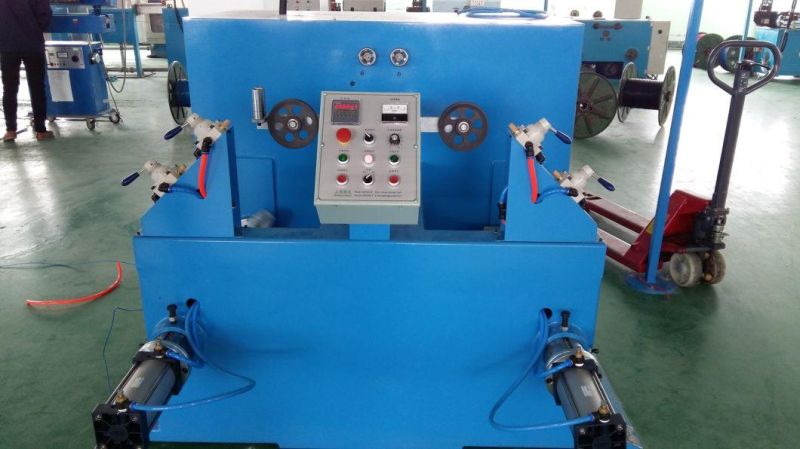

Motorized Pay-off/Take up machine
1.Features
- Type: Shaft-less type, drum loaded by cantilever arms with hydraulic lifters both side. Drum lock/release done by motors or hand screw.
- Motorize cable-sending unit is available, machine completed with bobbin driven system.
- Application: for cable pay off in the process of cable manufacturing or rewinding.
3.Technical Parameters
PAY-OFF
| Model | Drum dia. (mm) | Drum width (mm) | Load (Kg) |
| PF-1000M | 630~1000 | 300~750 | 1500 |
| PF-1250M | 800~1250 | 450~950 | 2500 |
| PF-1600M | 1000~1600 | 600~1200 | 4000 |
| PF-2000M | 1000-2000 | 750-1500 | 7000 |
PAY OFF- Hand SCREW SERIES
| Model | Drum dia. (mm) | Drum width (mm) | Load (Kg) |
| PFS-630M | 400~630 | 300~475 | 600 |
| PFS-800M | 630~800 | 475~600 | 1000 |
| PFS-1000M | 800~1000 | 600~750 | 1500 |
| PFS-1250M | 1000~1250 | 750~950 | 2500 |
