• Model NO.：DL45,65,80,90
• Marketing Type：Ordinary Product
• Voltage：380V, 50Hz, 3phase,Customized
• Color：Customized
• Feature：Fast Speed
• Video Outgoing-Inspection：Provided
• Machinery Test Report：Provided
• Transport Package：Wooden Box
• Specification：1200*1000*1200
• Trademark：DL
• Origin：China
• HS Code：5305
• Production Capacity：10000pieces,Year

Basic Info.

Model NO. DL45/65/80/90 Marketing Type Ordinary Product Voltage 380V, 50Hz, 3phase/Customized Color Customized Feature Fast Speed Video Outgoing-Inspection Provided Machinery Test Report Provided Transport Package Wooden Box Specification 1200*1000*1200 Trademark DL Origin China HS Code 5305 Production Capacity 10000pieces/Year

Product Description

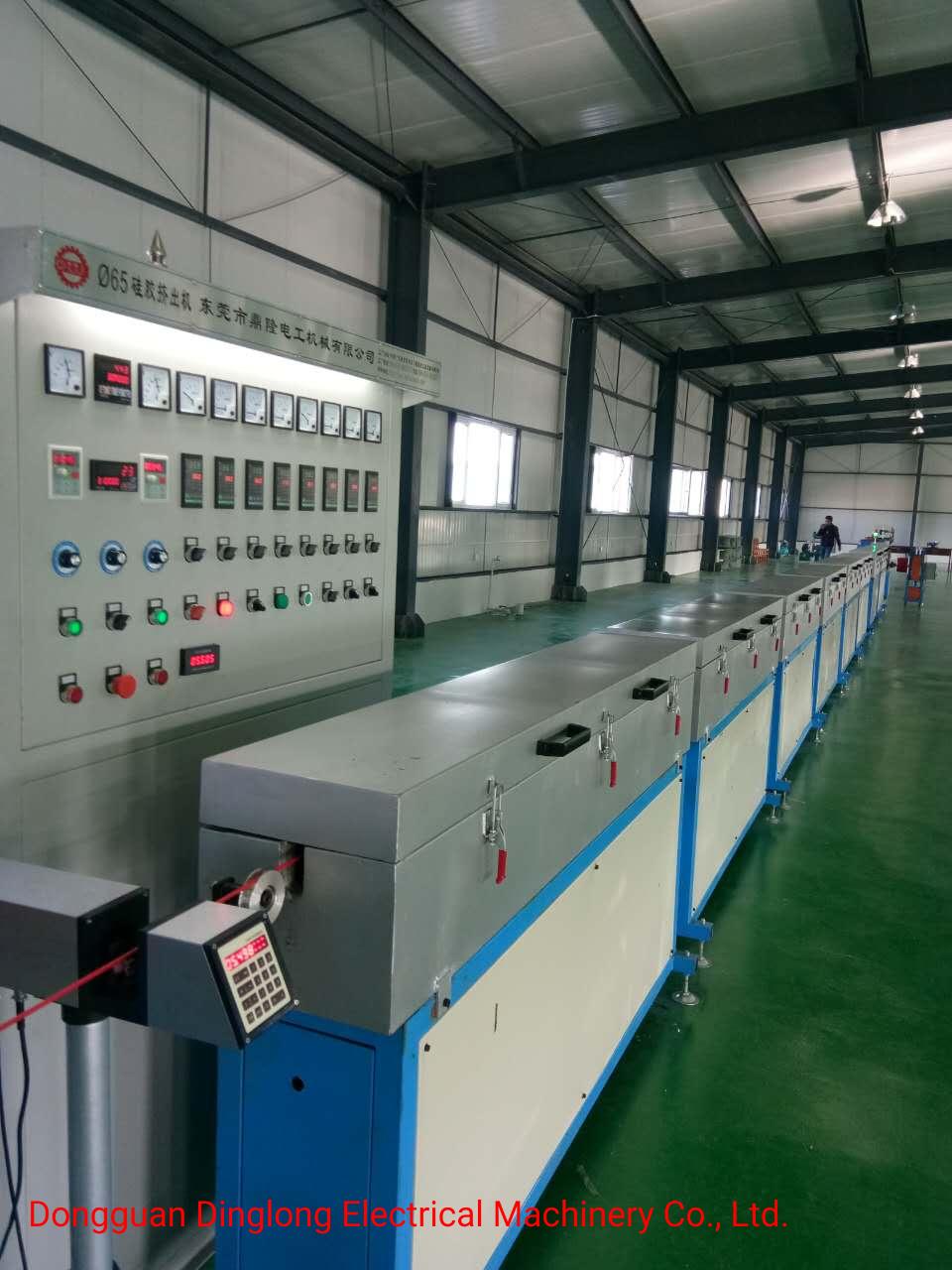

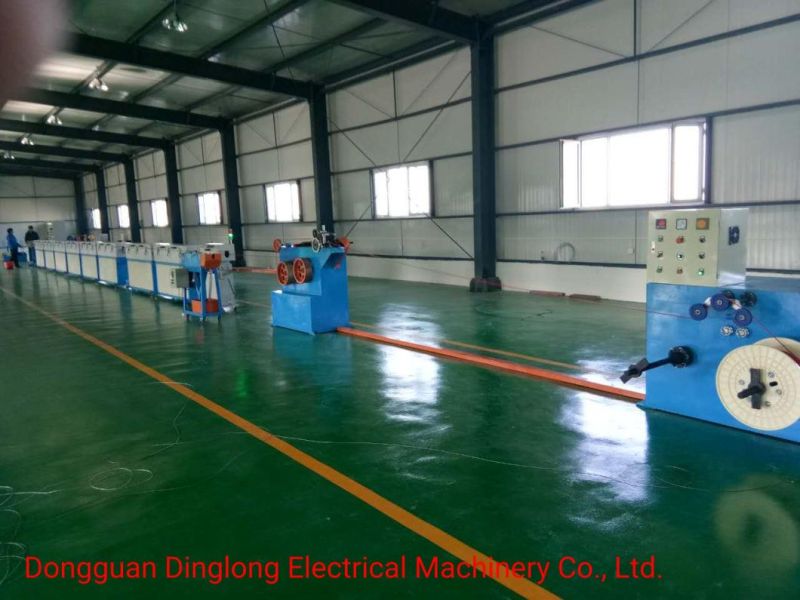

Price of silicone high temperature hot wire extrusion production line

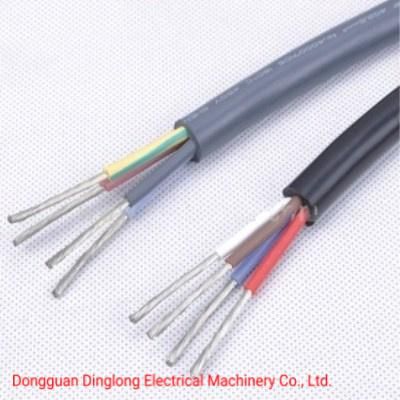

Application:apply to extruding single core or sheath of silicone cable
Equipment components:

1. Payoff(driven,non-driven,pintle,shaftless,porlal type)
2. Preheater(optional)
3. Wire straighting device
4. Extruder
5. Diameter gauge
6. Ink jet printer or mark printer(optional)
7. Vulcanization tunnel
8. Cooling trough(optional)
9. Capstan(wheel)
10. Accumulator(optional)
11. Powder coater
12. Spark test
13. Take up(dual reel,pintle,shaftless,portal type)
14. Control panel(manual or PLC type)

Technical Specifications


	DL45	DL65	DL80	DL90
Finished hose diameter	1.5-30mm	1.5-30mm	3.0-60mm	5.0-80mm
Line speed (max.)	30m/min	30m/min	30m/min	30m/min
Extrusion output (max.)	60kg/h	70kg/h	100kg/h	150 kg/h
L/D	12:1	12:1	12:1	12:1
Extruder power	7.5KW	11KW	22KW	30KW
High temperature curing length	0.5m-1.3m	0.5m-1.3m	0.8m-1.3m	0.8m-1.3m
Horizontal curing length	6-8m	6-8m	8-10m	8-12m
Capstan power	0.75KW	0.75KW	0.75KW	0.75KW

FAQ1
Q1: How long is the delivery time?
A1: It will take 20 days from the beginning to the end of the production.
      It takes more than 30 business days to customize complex mechanical equipment.
Q2: What is terms of payment? MOQ?
A2: T/T. 1 set.
Q3: How do you gurantee the machine stable operating?
A3: We do pre-shipment test for every single piece of machine.
      We have seperate QC, delivery, sales and after-sales departments.
      Also strict management process from pre-sales to after-sales.
Q4: How is your after-sales service?
A4: 1 year warranty with 60+ oversea after-service engineers
     (oversea after-service team of high efficient, professional and enough experience for various non-standard project) .
Q5: How can I install my machine when it arrives?
A5: For simple and semi-auto machine, we will send manual instruction and teaching video.
      For complex operation, we will send the engineers overseas to help client installing, operating and training.

Our Services
What to provide customers with after-sales service?
Pre-sales services:
1. Inquiry and consulting support.
2. Customized design program.
3. Pre-sale training: in order to guarantee all customers fully to operate the machine, if a customer needs, we can help our customer training, includes:
1) Correct operating mode.
2) Correct maintenance way.
3) Remove simple problem of our product.
After-sales service:
Since the shipment date, our company freely assuring period of after-sale maintenance service is:
1) 1year for mechanical part.
2) 6 month for electrical part.
3) Offer lifetime consultation on problems occurred.

Our products include:
1. Silicone strip equipment series.
2. 3D printer filament extruders.
3. LED strip equipment series.
4. Rubber processing machines.

Since our company was founded, over the past 13 yeas, our products have been extensively exported to Africa, Southeast Asia, Latin America, Europe and other markets.
