• Model NO.：ADSGW22-2
• Max.Winding Speed：1500rpm
• Winding Motor：1,2HP DC Motor
• Supply Voltage：AC 220V(50Hz)
• Mechanical Dimensions：60*62*55
• Weight：70kg
• Certification：RoHS, CE, ISO
• Transport Package：Export Standard Carton or Customize Strong Pallet
• Specification：CE
• Trademark：Grewin
• Origin：China
• HS Code：85043190
• Production Capacity：100PCS

Basic Info.

Model NO. ADSGW22-2 Max.Winding Speed 1500rpm Winding Motor 1/2HP DC Motor Supply Voltage AC 220V(50Hz) Mechanical Dimensions 60*62*55 Weight 70kg Certification RoHS, CE, ISO Transport Package Export Standard Carton or Customize Strong Pallet Specification CE Trademark Grewin Origin China HS Code 85043190 Production Capacity 100PCS

Product Description

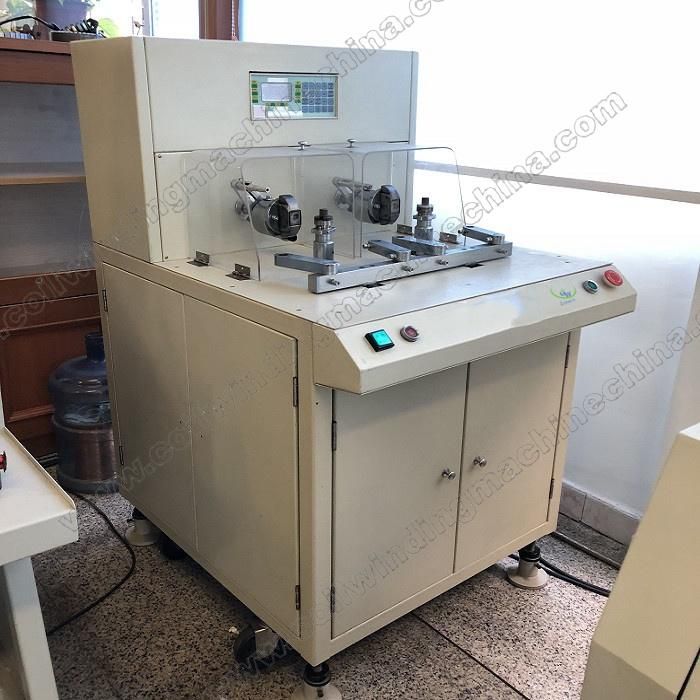

Product Description: ADSGW22-2 Ceiling fan winding machine

Spindle number	2
Wire size range	0.1-1.2mm
Loop diameter	200mm
The max wire spacing	9.99mm
Winder width	100mm
Max speed	2200 RPM
Spindle motor	Three Phase motor+AC Driver
Winder motor	Stepping motor
Input power	220V  50HZ/60HZ
Machine size	720×950×1300mm
Package size	860×1400×1320mm
Net weight	180kg
Gross weight	220kg

Features:
This Ceiling fan winding machine design of 32 bit controller chip, It'll be faster and higher reliability.
In Chinese and English display,easy to operation,winding data retention after power failure, not to discarded products.
All the parts for this machine are imported prats,such as:Japan Bearing (NSK,NTN),Japan BANDO belt ,U.S.A GATES belt ,Taiwan Ball screw (TBI),Taiwan AC Drive and so on.
Fan Winding Machine use two spindle synchronous design, selection of high-power phase motor, making a thick wire around the low-speed torque when larger and more stable. Coupled with high-power stepper motor ,when it rotates will get higher accuracy, so that customers to feel save time,save worker,high production.
Stator Winding Machine suitable for all kinds of  motor stator winding, a variety of ceiling fan stator, pole number stator, locomotives generators.

Advantages:
Ceiling fan winding machine design of 32 bit controller chip, It'll be faster and higher reliability.
In Chinese and English display,easy to operation,winding data retention after power failure, not to discarded products.
All the parts for this machine are imported prats,such as:Japan Bearing (NSK,NTN),Japan BANDO belt ,U.S.A  GATES belt ,Taiwan Ball screw (TBI),Taiwan AC Drive and so on.
Warranty period 1 year
The technicians are experienced

                       Following are our strong advantages:
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
Service tenet
Provide you the best service with "fast + satisfactory + safe".
Warranty period:
12 months long after the user received the product.
Warranty items:
Only for abnormal breakdown caused by the machine design or manufacture defect,free repair and accessory will be provided.
Technology service ability:
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell:
In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English
manual, video, guiding on line.
Use instruction:
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should be taken care. All done help to extend the use period.Product packing:Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.) Packaging: Packaging material: Carton/Wooden case with foam inside.
FAQ:1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.And 100% quality check before shipping.
F.Send your order by air or by sea

Company introduction information:

GREWIN INDUSTRIAL GROUP CO.,LTD is a leading manufacturer of toroidal coll winding equipment. The program includes machines for winding toroidal power transformers, current transformers El coil, inductors and variable voltage transfomers, as well as toroidal taping machines, toroidal winding transformer tester.
Always alming towards improving quality and performance a highly qualified research and design team and the most advanced manufacturing equipment secure a long life and dependability of all GREWIN products, Many features of the equipment are covered by Chinese and foreign patents. contributing to its reputation for the highest productivity in today's tough work environment.Top quality is assured according to the IEC ISO 9001 standard system, Products are subjected to a strict testing program before they are released to customers, and we offer an extensive warranty and after sales service including easy access to replacement parts; directly or through our network of distributors. Excellent service has helped make our products known all over Southeast Asia and Europe and boosted sales in many other markets.
