• Model NO.：HC-10+T
• Power：220V
• Demension：810*1280*1960mm
• Display：Chinese,English Interface
• Cutting Length：0.5-99999.99mm
• Stripping Length：0.1-10mm
• Wire Material：PVC and Glass Wire
• Waterproof Plug：Can Be Customized
• Transport Package：Wooden Box
• Specification：1450*700*1340mm
• Trademark：Hechang
• Origin：China
• HS Code：8479899990
• Production Capacity：1000PCS,Year

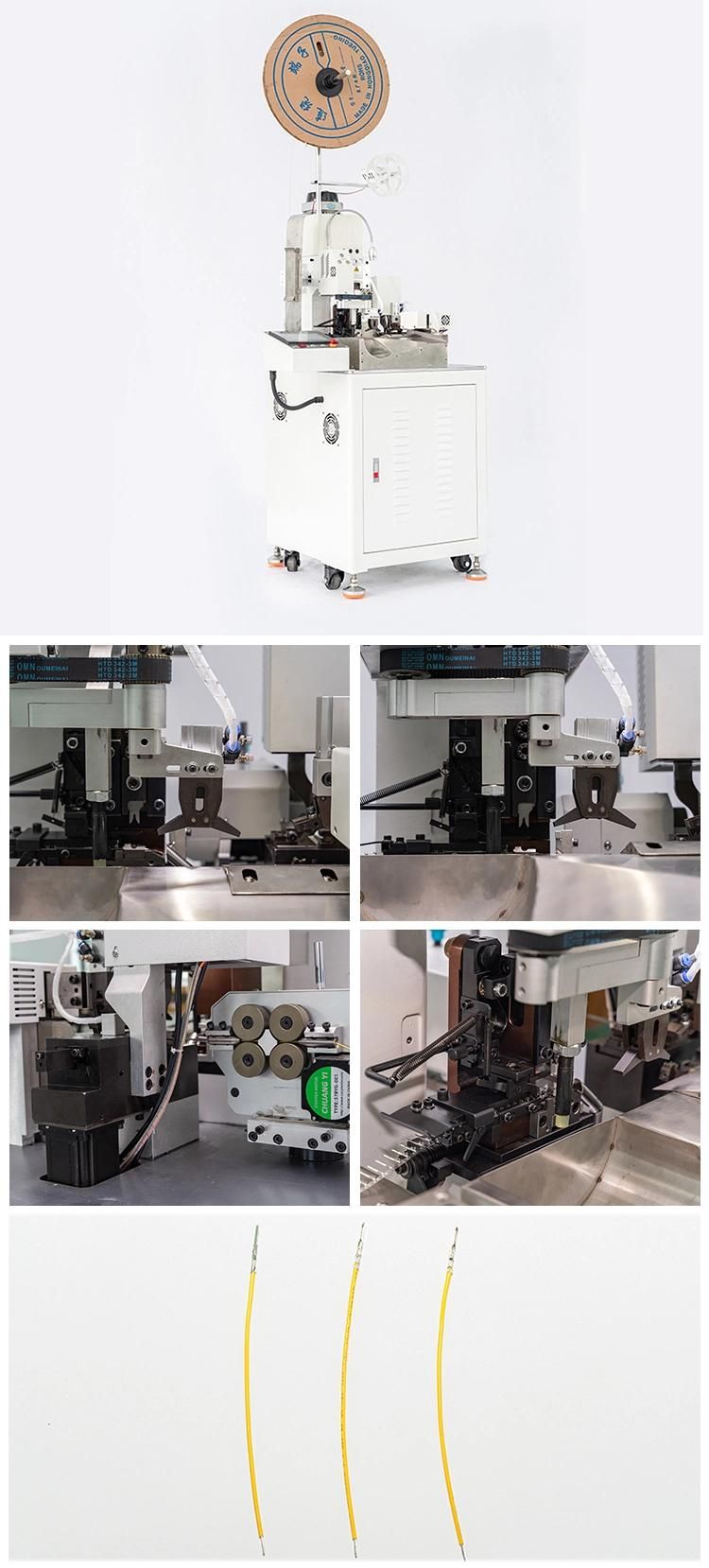

Product ParametersHC-10+TDimensionL600mm*W708mm*H1050mmWeight165KGPower220VFunctionWire cutting ,end stripping and twisting, the other end crimpingDisplayEnglish / Chinese interfaceCutting length40mm--99999.99mmCutting tolerances±( 0.002×L )mm L : indicates a cutting length.Stripping length0.1mm--10mmApplicable wireSize: 0.03 - 2.5mm2 AWG32-AWG10Compressed Air6--6.5kg use clean dry airProductivity(pcs/h)4000pcs/hDetailed Photos

Changzhou Hechang Intelligent Technology Co., Ltd. was established in 2005, specializing in the production of wire and cable processing equipment, wire harness processing equipment, and primary and secondary line equipment. It is a professional enterprise integrating sales, innovation and service. Since its establishment, the company has successively passed ISO9001, CE certification, obtained a number of utility model patents, and established a Jiangxi production base and branch in 2018. The company has a professional R&D technical team, advanced processing technology and efficient after-sales service. The equipment produced is widely used in electronics, new energy vehicles, 5G, 3C, home appliances, medical, aerospace and other industries.

The equipment and accessories of Changzhou Hechang Intelligent Technology Co., Ltd. are independently developed and manufactured, combined with advanced technology in Europe, America and Taiwan, and continue to develop and innovate. It cooperates with many well-known domestic and foreign companies such as Amphenol, Siemens, Delixi and Johnson Controls. Established long-term cooperative relations, products are exported to Europe, America, Southeast Asia, Oceania, Africa and many other countries and regions.

1.What are the wearing parts?
Blade and belt. More spare parts info, please contact us.

2.Operation and user manual?
English and Chinese optional.

3.How long is the warranty period?
1year, all belts and blades without of the warranty.

4.What after sales service do you provide?
Technicians online support, video technical support within 24 hours.
If you need local service please check with Hechang Machinery. Generally require additional charges.
