• Model NO.：SR-LS01
• Power：200W
• Step Motor Speed：6000rpm
• Step Torque：8n,M
• Air Supply：>0.4MPa
• Laser Power：60W
• Efficiency：1300PCS,H
• Transport Package：Plywood Case
• Specification：1500*700*1250mm
• Trademark：Sinrad
• Origin：China
• HS Code：8479899990
• Production Capacity：100 Sets,Month

Specification:

Model

SR-LS01

Function

Stripping the aluminum foil of data cable

Voltage

AC220V 50/60HZ

Power

2000W

Air supply

4PaG

Step speed

6000rpm

Step torque

8N/m

Laser power

Max. 60W

Efficiency

1300pcs/H

Size

1500*700*1250mm

 Features:

1. Using laser non-contact cutting, can accurately control the stripping position, scale and depth, high repeat positioning accuracy, can peel off the inner shielding layer well, and the yield is very high.

2. By selecting different lasers, different cable materials can be cut and peeled.

3. After laser stripping, there is no wire drawing or irregularity in the cut of the inner and outer insulating layers of the wire.

4. There is no change in the insulation performance of the wire before and after laser stripping.

5. The processing speed is extremely high.

6. High quality consistency and reliability.

7. Can set and save multiple processing files.

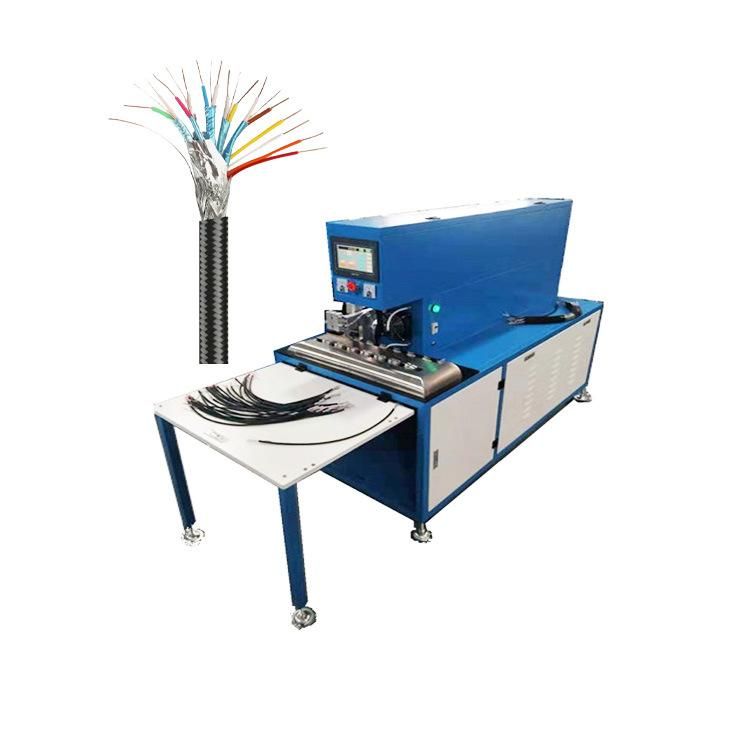

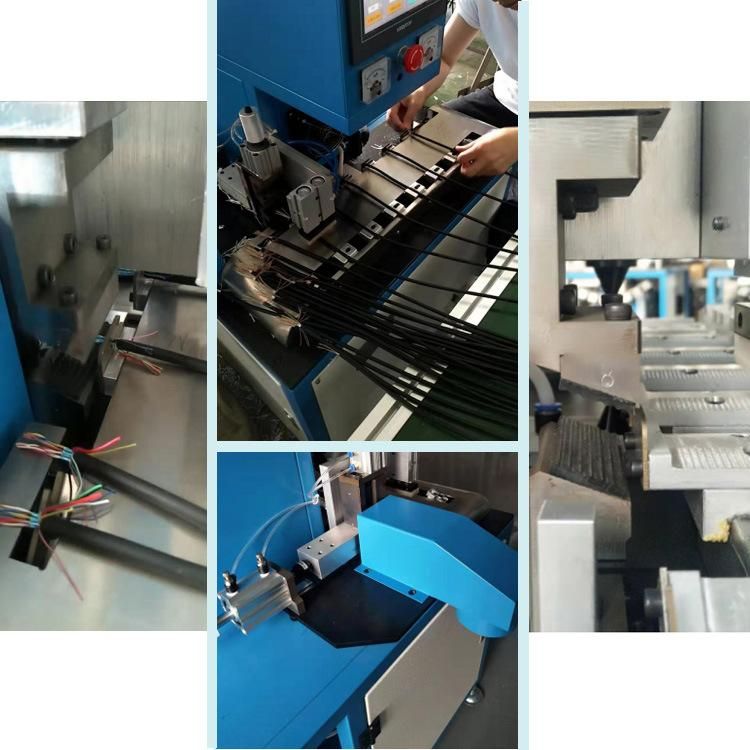

Pictures:



Service:

 FAQ:

1 Price terms

The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.

2 Can I send samples to check the machine quality.

Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.

3 How to learn the machine?

1) Offer free technology learning support in our factory

2) Provide detail user manual with detail video illustration

3) Support engineer service at site if clients asking for

4 How about the lead time and delivery time of order?

Standard model, can be ship out within 3~7days after confirmed order and deposit.

Customized model, normally lead time is 10~30 days, after confirmed all order detail deposit and got samples.

Company info:
Sinrad Technology Co.,Ltd, specialized in automation machine, customizing and manufacturing cable processing(cutting, striping, twisting, crimping, soldering, housing inserting, winding, binding, testing, etc.) machine, automatic soldering machine, intelligent soldering machine, and other production equipment.
