• Model NO.：GW-976
• Supply Voltage：AC 220V(50Hz)

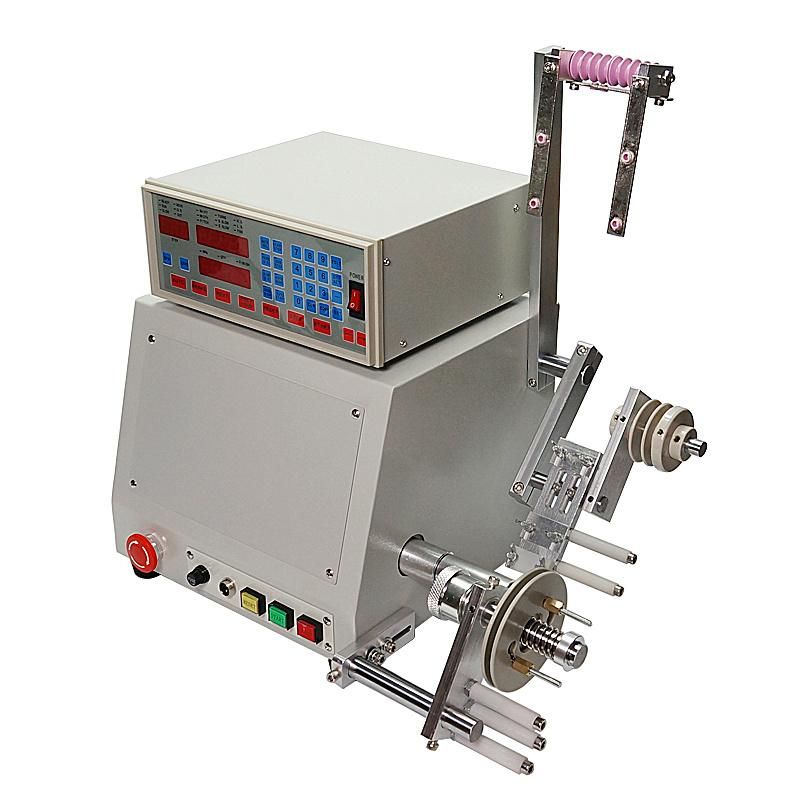

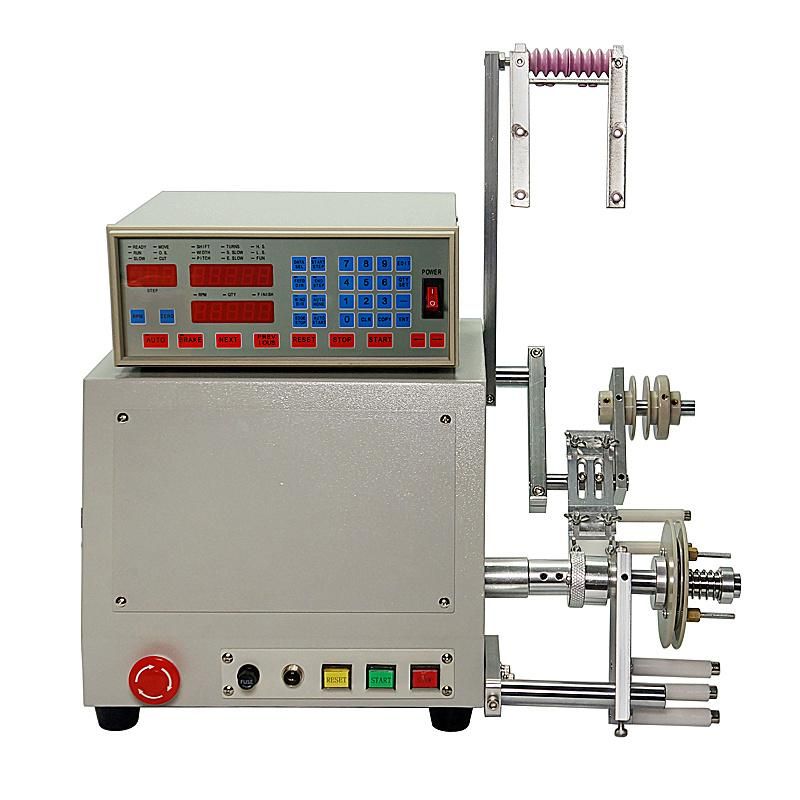

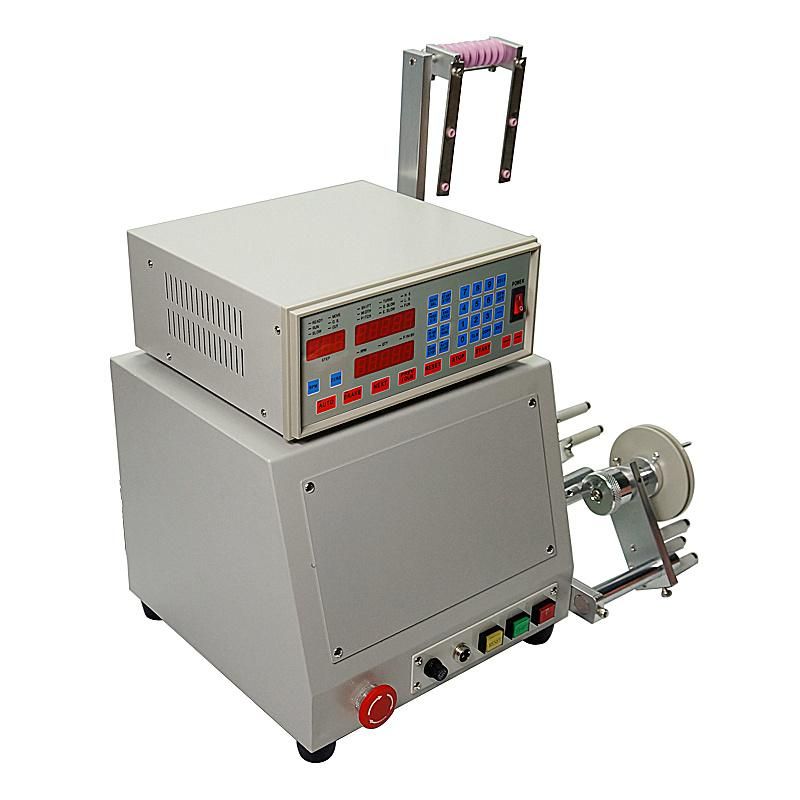

• Name 1：Coil Winder Machine
• Name 2：Transformer Winding Machine
• Automatic：Automatic
• Certification：RoHS, CE, ISO
• Power Voltage：Single Phase AC 220V 50Hz
• Cop Motor：Three Phase Machine 400W(1,2HP
• Winding Displacement Machine：Step-Servo Motor
• Spindle Motor：Brushless DC
• Numbers of Cop：1
• Transport Package：Export Standard Carton or Customize Strong Pallet
• Specification：CE
• Trademark：Grewin
• Origin：China
• HS Code：84798110
• Production Capacity：100PCS

Basic Info.

Model NO. GW-976 Supply Voltage AC 220V(50Hz) Name 1 Coil Winder Machine Name 2 Transformer Winding Machine Automatic Automatic Certification RoHS, CE, ISO Power Voltage Single Phase AC 220V 50Hz Cop Motor Three Phase Machine 400W(1/2HP Winding Displacement Machine Step-Servo Motor Spindle Motor Brushless DC Numbers of Cop 1 Transport Package Export Standard Carton or Customize Strong Pallet Specification CE Trademark Grewin Origin China HS Code 84798110 Production Capacity 100PCS

Product Description

Product Description

FEATURE

1.This series of automatic filament winder computer controller adopts the latest synchronous winding , it is with high precision and there will be no obstacles appear when in excessive speed winding displacement process .

2.Super elevated wisdom model , it has self-inspecting functions, including the errors of the equipments ,excessive speed tracking and the calibration of the speed.

3.Has vernier caliper functions and can measure the winding width and starting point easily.

4.The speed of the cop motor can be changed at random when in operation , and the strand oscillator  also can synchronize with it.

5.After the startup of the cop motor , the time of speed growing can be changed at random depend on the type of the machines.

6.Obtain winding excessive speed detecting function , and it can reduce the winding speed automatically to the most steady state.

7.Can settle data: starting point, wire gage, winding displacement width, circles, speed of starting the winding , stopping slow-speed, winding speed, slow lathe speed , winding displacement direction , winding direction , two-terminal stopping , automatic reset, automatic start (job-hopping winding)

8.Foot-switch connection for better efficiency.

9.Winding parameters and options can be set independently for each step.

10.Memory capacity accommodates 999 steps of parameters with off-power memory retention.

SPECIFICATION

Power voltage	single phase AC 220V  50HZ
Cop motor	three phase machine 400W(1/2hp)
Winding displacement machine	step-servo motor
Spindle motor	Brushless DC
Numbers of cop	1
Windable wire gage	0.03-1.2mm
Maximum winding width	110mm
Maximum screw diameter	120mm
Maximum turning speed of cop	6000circles/minute,speed adjust function
Storable winding groups	999 groups
Counting resolution	0.1 circle
Complete appliance weight	30kg
Size	510*490*450mm


Why choose GREWIN INDUSTRIAL GROUP CO.,LTD:Following are our strong advantages:
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
Service tenet
Provide you the best service with "fast + satisfactory + safe".
Warranty period:
12 months long after the user received the product.
Warranty items:
Only for abnormal breakdown caused by the machine design or manufacture defect,free repair and accessory will be provided.
Technology service ability:
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell:
In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.
Use instruction:
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should be taken care. All done help to extend the use period. Product packing:Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.) Packaging: Packaging material: Carton/Wooden case with foam inside.  FAQ:1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea
