Bench Top IR Vacuum Solder Reflow Oven by Torch

Termway (Beijing) Precision Technology Co., Ltd.
  • After-sales Service：Engineer Go Oversea for Training
  • Condition：New
  • Certification：ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Semiautomatic
  • Installation：Vertical

Base Info

  • Model NO.：RS220
  • Working Size：220*220mm
  • Chamber Height：100mm
  • Max Temperature：450 Degree
  • Connector：Serial 485 Network , USB
  • Control Way：40 Segments Temperature Control + Vacuum Pressure
  • Gas：N2, Formic Acid
  • Cooling Rate：2 Degree,Second
  • Heating Rate：2 Degree,Second
  • Transport Package：Plywood with Foam Inside
  • Specification：SiC graphite heating plate
  • Trademark：TORCH
  • Origin：China
  • Production Capacity：50 Sets,Month

Description

40mm(other Hights is optional) Temperature RangeUp to 400ConnectorSerial 485 network / USBControl Way 40 segments Temperature control + Vacuum Pressure ControlTemperature curve can store several curves Temperature of 40 segmentsVoltage220V 25A220V 28A220V 36ARated Power9KW11KW15KWActual Power6KW(Don't choose a vacuum pump)8KW(configurate  molecular pump)11KW(Don't choose a vacuum pump)8KW(configurate  molecular pump)10KW(configurate  molecular pump13KW(configurate  molecular pump)Dismension450*450*1300mm450*450*1300mm500*450*1300mmWight210KG240KG270KGThe maximum heating rate120/min120/min120/minThe maximum cooling rate80k/min80k/min80k/minCooling WayAir cooling/water coolingAir-cooled / water-cooledAir-cooled / water-cooled

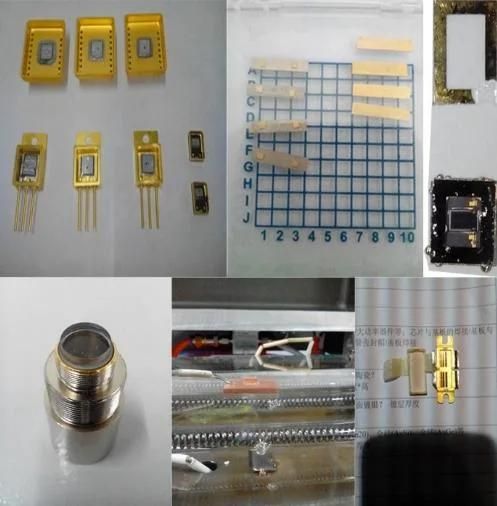

Vacuum soldering result:

Bench Top IR Vacuum Solder Reflow Oven by Torch

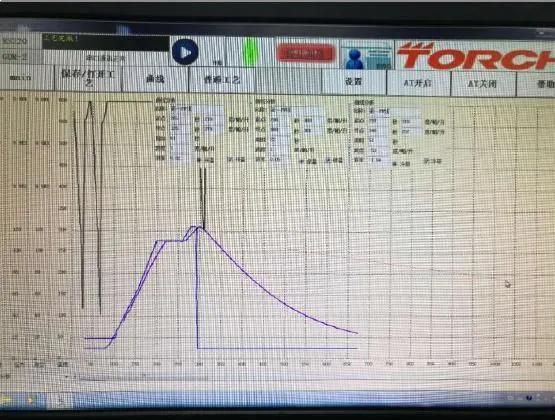

Process
Bench Top IR Vacuum Solder Reflow Oven by Torch
More information welcome to send us email!
