• Model NO.：HC-10+NT
• Cutting Length：0.5-99999.99mm
• Stripping Length：9,15mm
• Cutting Range：AWG30-18
• Power：220V,50Hz
• Productivity：4500CS,H
• Display：English Interface or Chinese Interface LED Display
• Press Capacity：2000kg
• Twisting Length：4-15mm
• Transport Package：Wooden Box
• Specification：700*900*1220MM
• Trademark：HeChang
• Origin：Changzhou City, China
• HS Code：8479819000
• Production Capacity：20,Month

L700mm*W900mm*H1220mmWeight300kgPower supplyAC220V/50HZFunctionWire cutting and Stripping, one side twisting tinning , another
side crimpingDisplayEnglish / Chinese interfaceCutting length40mm-800mm( standard type )Cutting tolerances±(1mm+ 0.002×L )mm L : indicates a cutting length.Stripping length0.1mm--15mmApplicable wiresAWG30-AWG20 (standard)
Optional : up to AWG14 ,AWG13Twisting length4-10mmDetectorWire existence,wire overload, strip error,terminal existence,
crimp error. Bad crimpingCompressed Air6--6.5kg use clean dry airProductivity(pcs/h)Productivity(pcs/h) 4500pcs/h (wire length within 300mm) 5000pcs/h (length

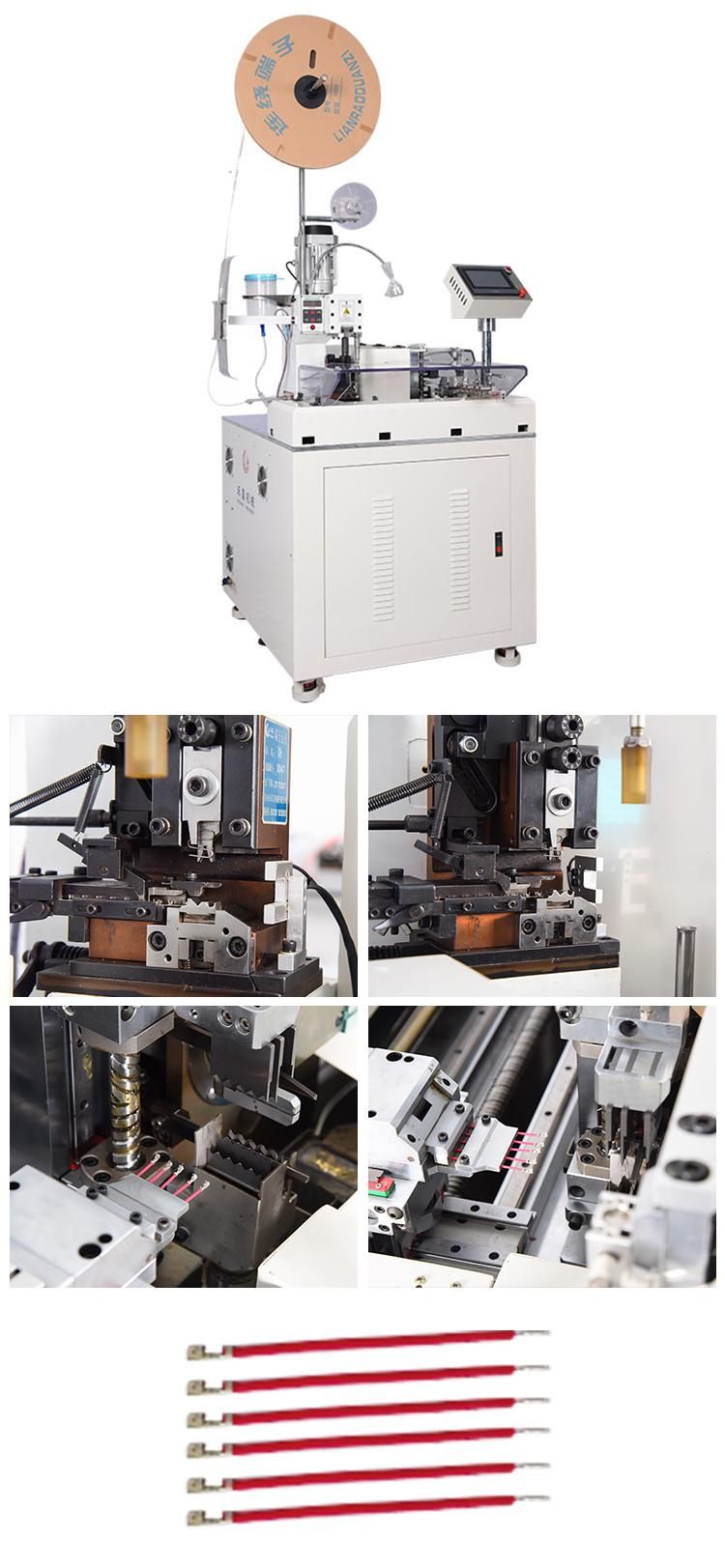

100mm)Detailed Photos

Changzhou Hechang Intelligent Technology Co., Ltd. was established in 2005, specializing in the production of wire and cable processing equipment, wire harness processing equipment, and primary and secondary line equipment. It is a professional enterprise integrating sales, innovation and service. Since its establishment, the company has successively passed ISO9001, CE certification, obtained a number of utility model patents, and established a Jiangxi production base and branch in 2018. The company has a professional R&D technical team, advanced processing technology and efficient after-sales service. The equipment produced is widely used in electronics, new energy vehicles, 5G, 3C, home appliances, medical, aerospace and other industries.

The equipment and accessories of Changzhou Hechang Intelligent Technology Co., Ltd. are independently developed and manufactured, combined with advanced technology in Europe, America and Taiwan, and continue to develop and innovate. It cooperates with many well-known domestic and foreign companies such as Amphenol, Siemens, Delixi and Johnson Controls. Established long-term cooperative relations, products are exported to Europe, America, Southeast Asia, Oceania, Africa and many other countries and regions.

1.What are the wearing parts?
Blade and belt. More spare parts info, please contact us.

2.Operation and user manual?
English and Chinese optional.

3.How long is the warranty period?
1year, all belts and blades without of the warranty.

4.What after sales service do you provide?
Technicians online support, video technical support within 24 hours.
If you need local service please check with Hechang Machinery. Generally require additional charges.
