• Model NO.：A4
• Weight：350kg
• Warming Time：About 15 Mins
• Temp. Control Method：Pid
• Range of Rail Width：0-400mm
• Transmission Type：Mesh
• Mesh Belt Width：400mm
• Max. Width of PCB：300mm
• Length of Heating Zones：1400mm
• Number of Heating Zones：Upper Four Bottom Four
• Transport Package：Wooden Box
• Specification：2600× 615× 1400
• Trademark：jaguar
• Origin：Shenzhen
• Production Capacity：25 Sets

Basic Info.

Model NO. A4 Weight 350kg Warming Time About 15 Mins Temp. Control Method Pid Range of Rail Width 0-400mm Transmission Type Mesh Mesh Belt Width 400mm Max. Width of PCB 300mm Length of Heating Zones 1400mm Number of Heating Zones Upper Four Bottom Four Transport Package Wooden Box Specification 2600× 615× 1400 Trademark jaguar Origin Shenzhen Production Capacity 25 Sets

Product Description

Technology Parameters:

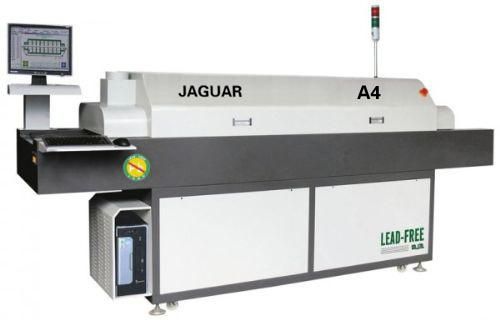

Model	Jaguar A4
Number of heating-zone	up four/bottom four
Length of heating-zone	1400mm
Heating way	Independent and cycle full hot air
Max width of PCB board	300mm
Transmission direction	left→right(option: right-left)
Transmission belt height	800±20mm
Transmission speed	0-2000mm/min
Starting power	10KW
Normal working consume	4KW
Warm-up time	About 20 minutes
Temperature control range	Room temperature-400ºC
Temperature control way	PID controlling
Temperature precision	accuracy ±1ºC
Temperature disparity on PCB board	±2ºC
Abnormity alarm	Temperature abnormity supper high or supper low temperature
Power supply	Five lines and three phase 380V 50/60Hz
dimension(mm)	2600×615×1400
weight	350KG

Features:
1.The heating system is unique , advanced and long-life.
2.High efficiency and energysave nickel cauterize heating pipe is used in heating system(replacement within one year), strong hot air cycle structure , making PCB and components heating equally, high efficiency and rapid heating speed.
3.The intelligent microcomputer precision controller (replacement within one year), through intelligent operation of PID, control heating automatically , temperature controlling function can detect the changing of temperature, and then make inner temperature stable by controlling. Modular design , easy to repair and assembly.
4.Import high temperature and high speed motor are used (replacement within one year), stable operation,small tremble and low noise.The efficiency be improved greatly, extending the using time. The heating system use import components to make sure high stability and reliability of all system.
5.Reliable and stable transmission system, stable operation driver, and the speed range is 0-2000mm/min.
6.stable operation special stainless steel net chain is durable and wearable. So it didn't need to be change for a long time that can save cost.
7.Stable and reliable electronic controller system.
8. Computer is option.







Notice: Free shipping is provided to the unit reflow oven Jaguar A3; Considering its weight 150kg and packing dimension, we support sea shipping to customers'sea port. Sea shipping cost is 0.

FAQ:
 1) This is the first time I use this kind of machine, is it easy to operate?
 There is English manual or guide video that show you how to use machine.
 If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
 2) If machine have any problem after I receive it, how can I do ?
 Free parts send to you in machine warranty period.
 If the part is less than 0.5KG, we pay the postage.
 If it exceeds 0.5KG, you need to pay the postage.
 3) MOQ ?
 1 set machine, mixed order is also welcomed.
 4) How can I buy this machine from you? ( Very easy and flexible !)
 A. Consult us about this product on line or by e-mail.
 B. Negotiate and confirm the final price , shipping , payment methods and other terms.
 C. Send you the proforma invoice and confirm your order.
 D. Make the payment according to the method put on proforma invoice.
 E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
 And 100% quality check before shipping.
  F.Send your order by air or by sea.
