• Mould Life：>1,000,000 Shots
• Type：To Back Stranding Machine
• Material：Metal
• Colour：as Required
• Wire Diameter Specification：1.5-5.0mm
• Cage Speed：80-106 Rpm
• Stranding Pitch：61-1383 mm
• Traction Wheel Diameter：2000 mm
• Pay-off Bobbin in Cage：Pn 500
• Central Pay-off Bobbin：Pn800-Pn1600
• Take-up Bobbin：Pn1250-Pn2500
• Central Height：1000 mm
• Transport Package：Seaworthy Packing
• Specification：500 , 6+12+18
• Trademark：BH
• Origin：Hejian, Hebei, China
• HS Code：8479400000
• Production Capacity：15 Sets,Month

4.Technical parametersModel (Planetary Stranding Machine)JLY-315JLY-400JLY-500JLY-630Diameter of single wireCopperφ1-1.6 mmφ1-4 mmφ1.2-5 mmφ1.5-5 mmAluminumφ1.2-2 mmφ1.2-4 mmφ1.4-5 mmφ2.0-5 mmMaximum stranded conductor ODφ14 mmφ28 mmφ35 mmφ45 mmStranding Pitch6 Bobbin Stranding Cage26-43539-69544-77048-84012 Bobbin Stranding Cage30-52643-77447-85850-92818 Bobbin Stranding Cage34-63947-85855-100165-120124 Bobbin Stranding Cage38-74951-94063-115175-1601Rotating Speed6 Bobbin Stranding Cage218 r/min120 r/min106 r/min55 r/min12 Bobbin Stranding Cage118 r/min110 r/min97.5 r/min45 r/min18 Bobbin Stranding Cage108 r/min100 r/min82.9 r/min35 r/min24 Bobbin Stranding Cage98 r/min90 r/min74 r/min25 r/minCapstanCapstan Wheel Diameter1000 mm1600 mm1800 mm2000 mmMaximum Haul-off Force2T5T10T15TMotor Power18.5 KW22 KW37 KW55 KWBobbin Size315 mm400 mm500 mm630 mmCenter Payoff Bobbin315 mm1250 mm1600 mm1600 mmTake-up Bobbin1250 mm2000 mm2000 mm2500 mmMaximum Haul-off Linear Speed25 m/min30 m/min34.7 m/min20 m/minCentral Height1000 mm1000 mm1000 mm

1100 mm

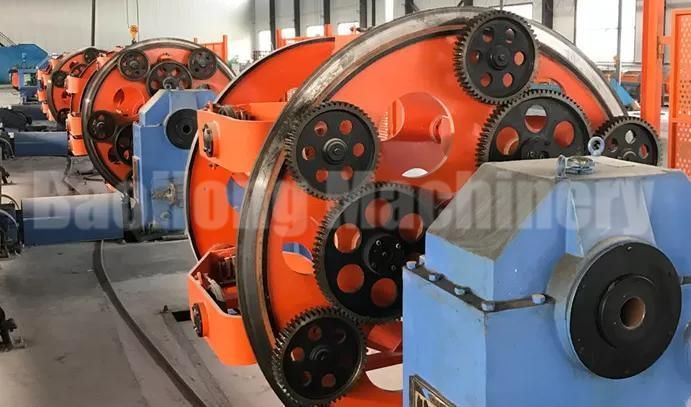

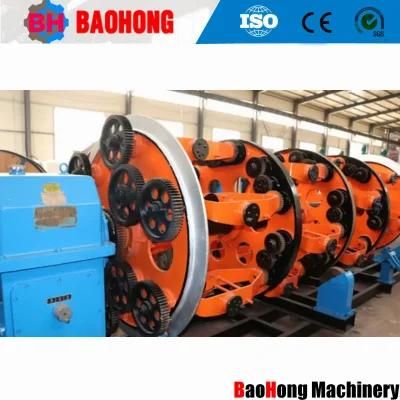

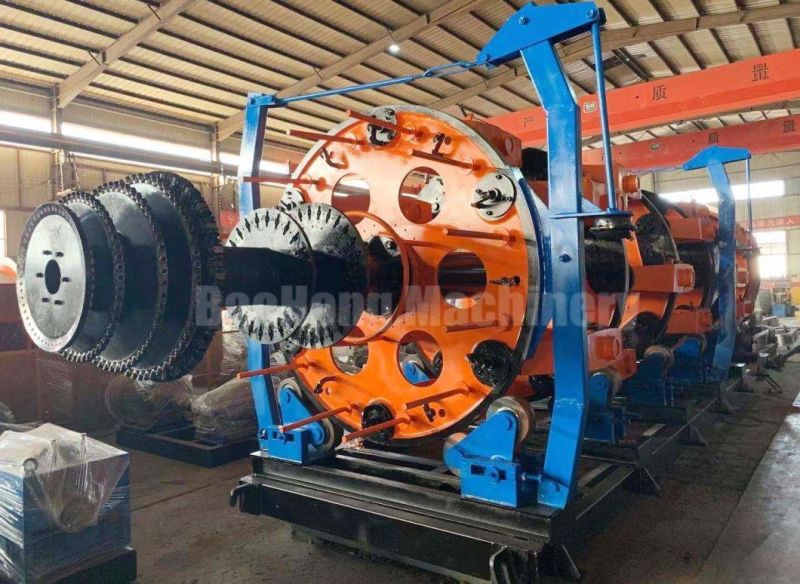

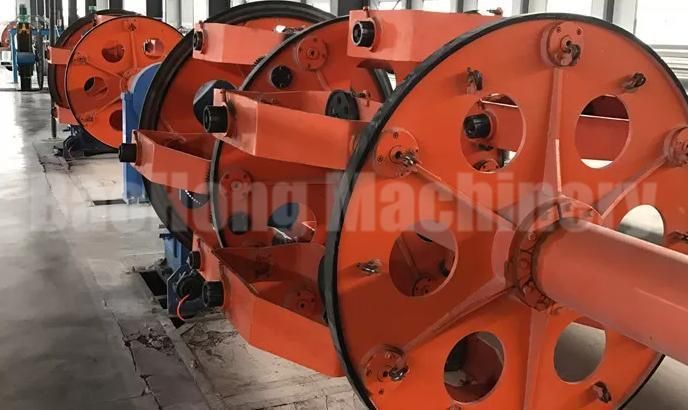

5.Photos
