• Model NO.：WL-3.0TZ
• Certification：RoHS, CE
• Warranty：12 Months
• Automatic Grade：Automatic
• Power Supply：110,220VAC,50,60Hz
• Power Consumption：Motor: 250W; LED Light: 220V 1W; Vibration Plate:
• Stroke：35mm (40mm)
• Crimping Frequency：120 Times,Min
• Weight：About 175kg
• Dimensions：96*60*146cm
• Transport Package：Wooden Carton
• Specification：120*60*200cm
• Trademark：crown
• Origin：China
• HS Code：8479819000
• Production Capacity：1000set,Month
• Package size per unit product：96.00cm * 60.00cm * 146.00cm
• Gross weight per unit product：175.000kg

Basic Info.

Model NO. WL-3.0TZ Certification RoHS, CE Warranty 12 Months Automatic Grade Automatic Power Supply 110/220VAC,50/60Hz Power Consumption Motor: 250W; LED Light: 220V 1W; Vibration Plate: Stroke 35mm (40mm) Crimping Frequency 120 Times/Min Weight About 175kg Dimensions 96*60*146cm Transport Package Wooden Carton Specification 120*60*200cm Trademark crown Origin China HS Code 8479819000 Production Capacity 1000set/Month

Packaging & Delivery

Package size per unit product 96.00cm * 60.00cm * 146.00cm Gross weight per unit product 175.000kg

Product Description

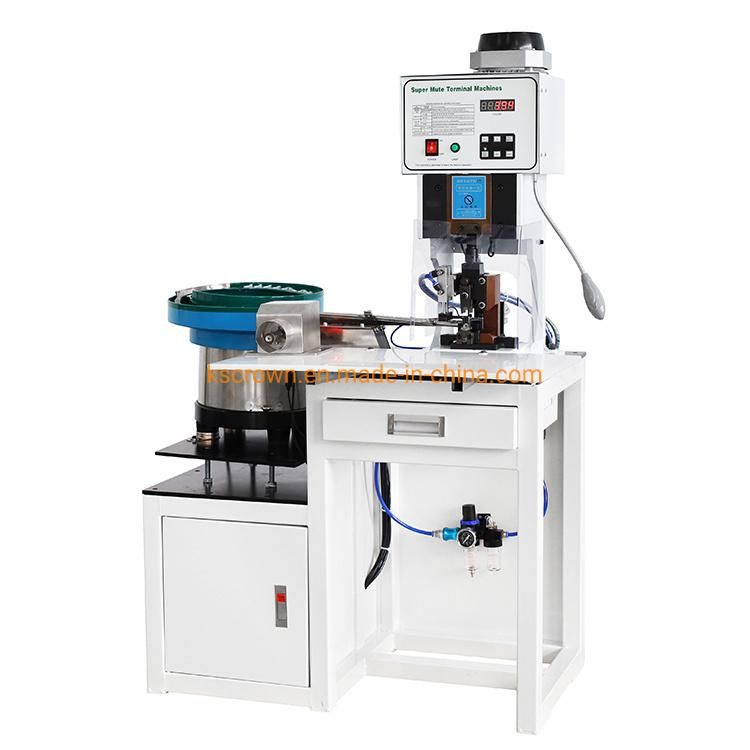

Semi-automatic Loose Terminal Crimping Machine With Vibration Plate Feeding

This is a semi-automatic cable connector crimping machine. It is suitable for crimping loose piece terminals with vibration plate feeding. The operating speed is comparable to that of the chain terminals, saving labor and cost, and having more cost-effective advantages.


Features:

• Based on the silent terminal machine, using cassette molds, easy and convenient to disassemble;

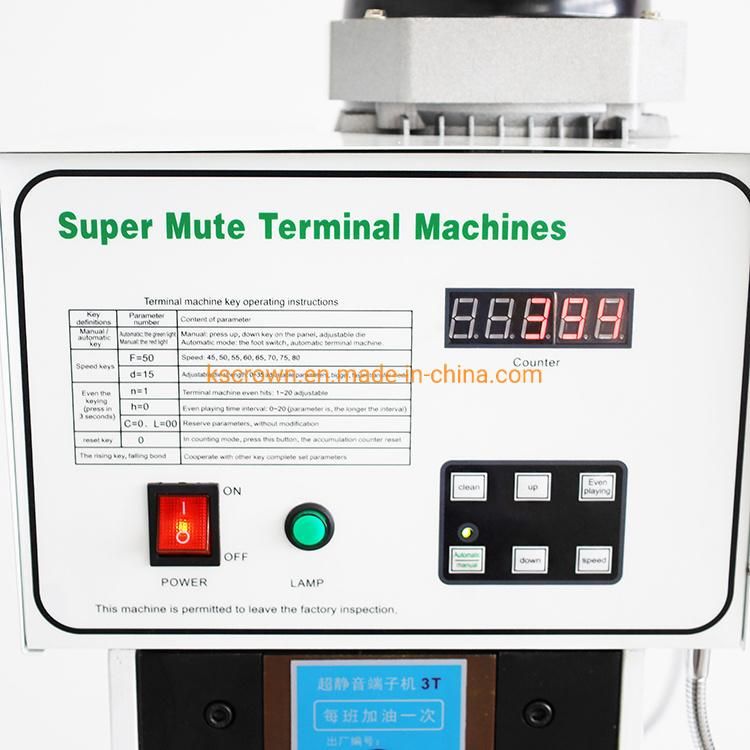

• Microcomputer chip control, humanized program design, safe and reliable operation;

• Replace expensive chain terminals and use more economical loose terminals;

• Centrifugal vibration feeding, frequency conversion speed regulation, precise positioning of cylinder, unified riveting standard;

• The operating speed is comparable to that of the chain terminals, saving labor and cost, and having more cost-effective advantages;

• When necessary, it can be used as a separate silent terminal machine, suitable for 800#, 2000# straight and horizontal applicators.

• Manual operation part

  Manually put the terminal into the vibration plate

  Manually put the wire into the terminal to be crimped

• Machine running part

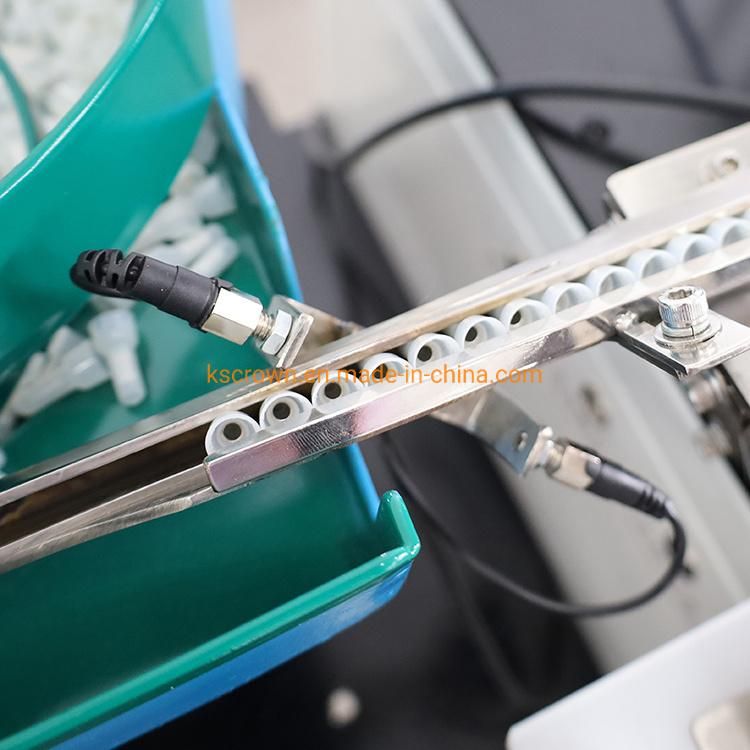

  Automatically arrange and feed the terminals

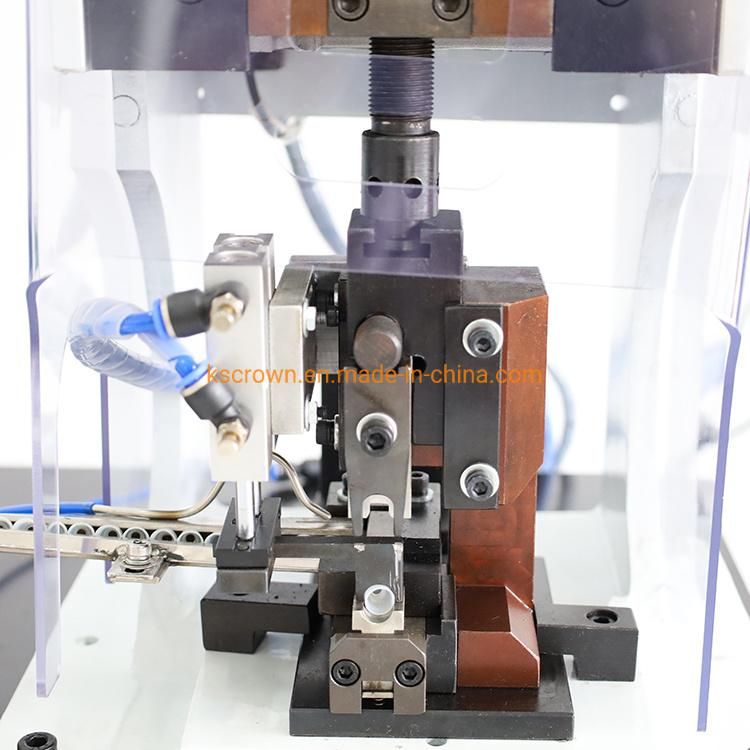

  Automatically feed the terminal into the designated die(The feeding speed of regular terminals is 60~70 pcs per minute. The speed is 3000-4000 pcs per hour. Note: special terminals are excluded)

  When ready, start the crimp switch, the pressing is completed automatically.

Model	WL-3.0TZ
Dimensions	Conventional 500*860*1360 (mm); Special slide rail type: 500*1050*1360 (mm)
Power supply	AC 220V/50Hz
Weight	about 140KG-170KG
Power consumption	Motor: 250W;  LED light: 220V 1W; Vibration plate: 120W
Crimping capacity	20Kn
Stroke of slider	35mm (40mm)
Crimping frequency	120 times/min
Closing height	26mm; Closing height adjustment 10mm

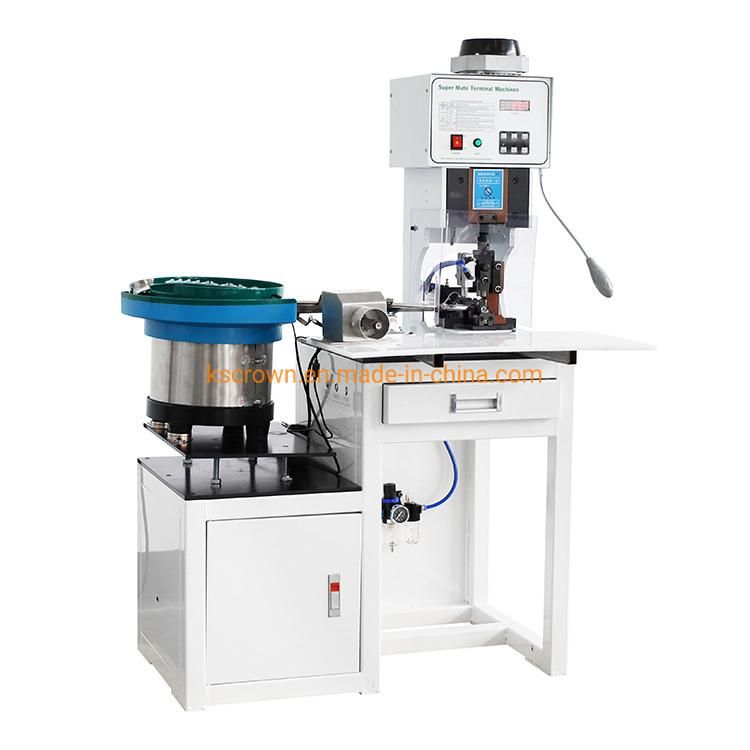

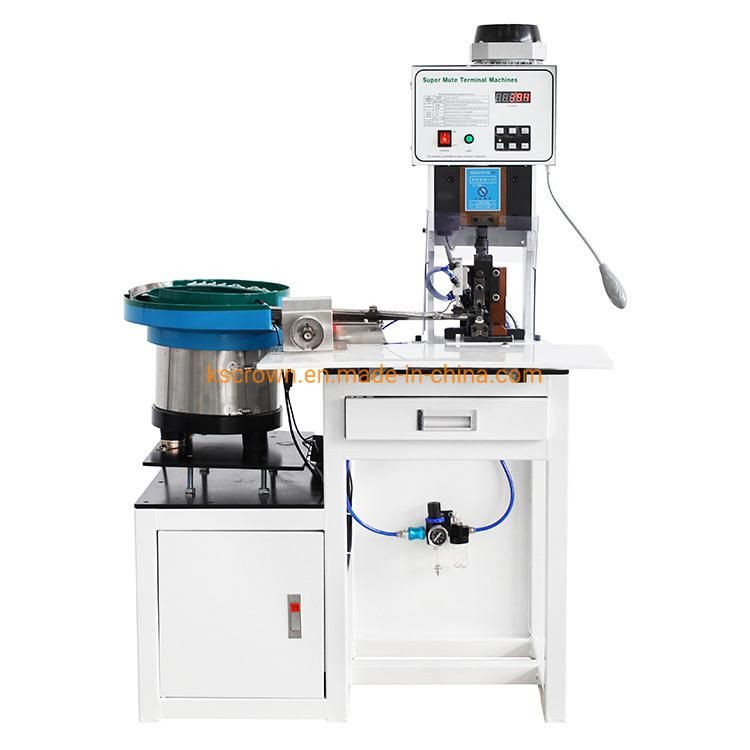

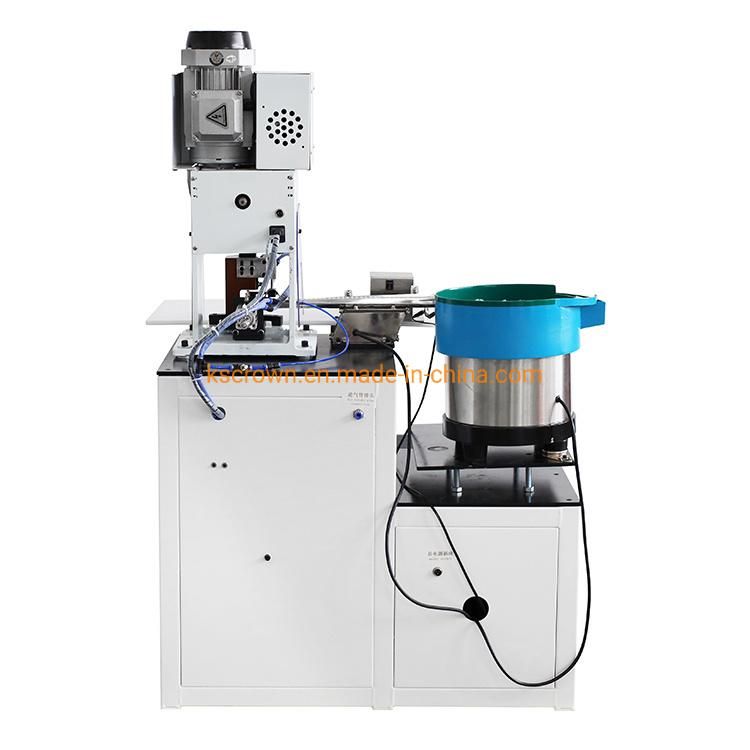

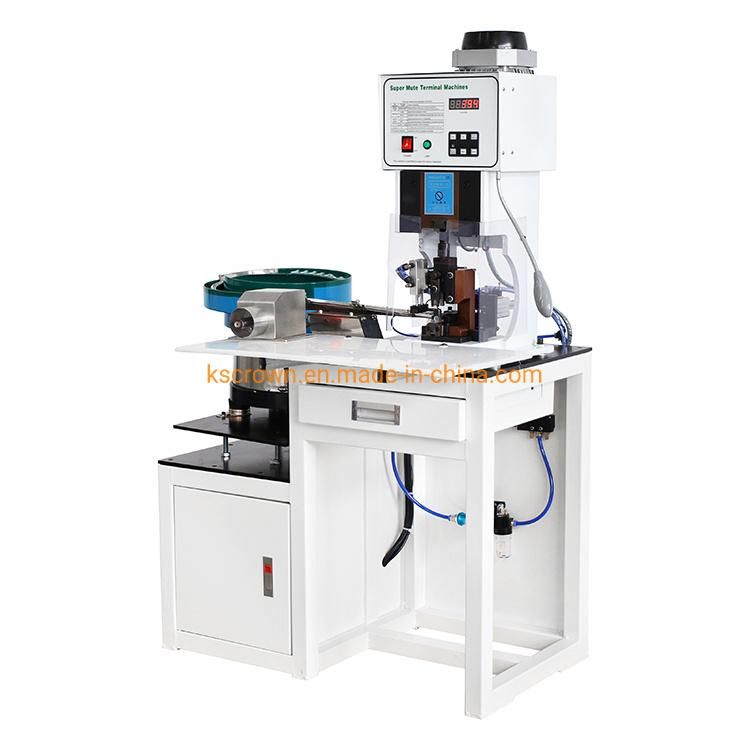

Product show:

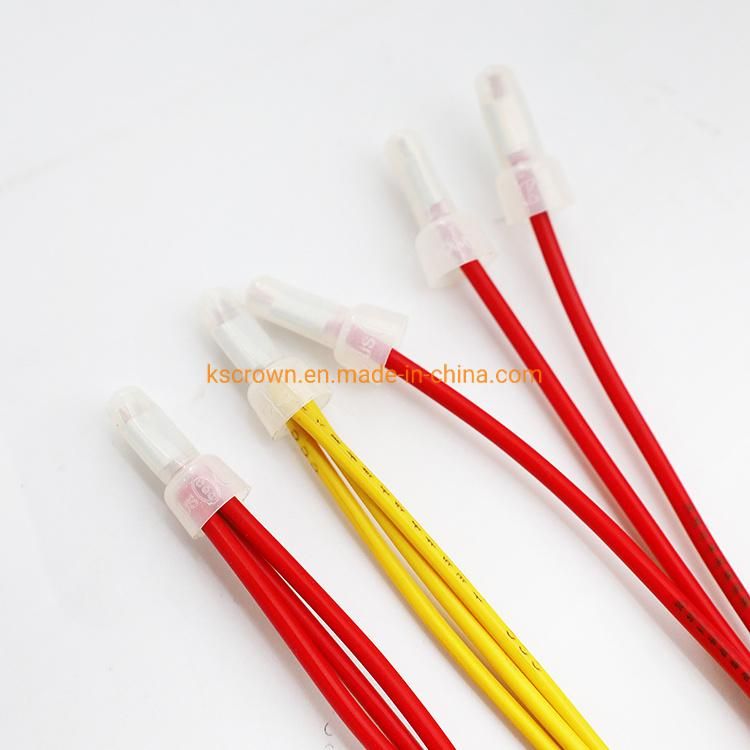

Machine processing wire/terminal samples:

Related products:



Company information:


Certificate:


Contact:

Pls, contact Suzhou Crown for price inquiry or any other questions/doubts.
