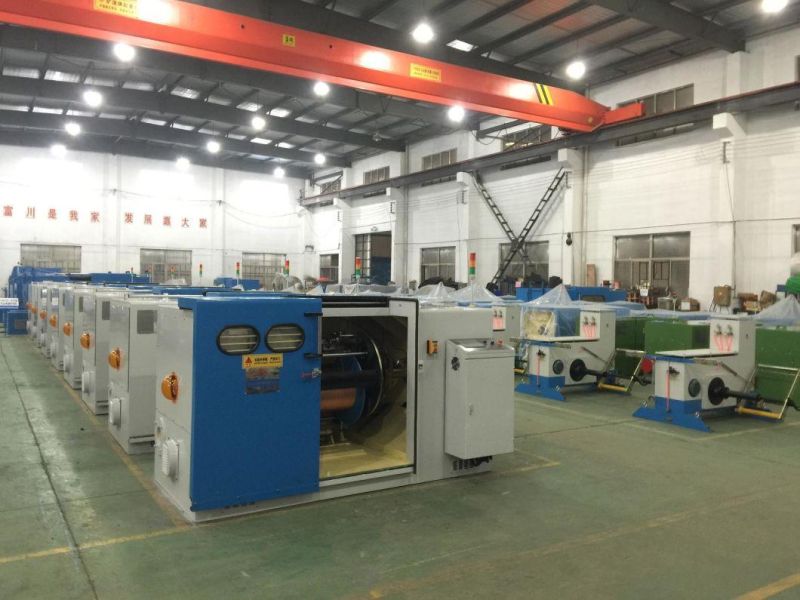

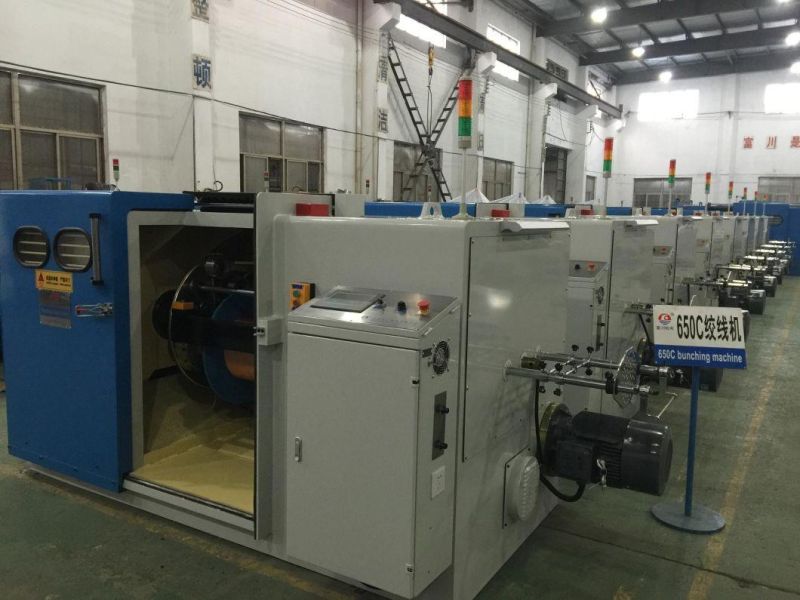

China Fuchuan Best Quality Double Twisting Stranding Bunching Drawing Extrusion Machine

Kunshan Fuchuan Electrical and Mechanical Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Mould Life：300,000-1,000,000 Shots

Base Info

  • Model NO.：FC-650C-2
  • Type：Double Stranding Machine
  • Single Wire：0.12-0.52mm
  • Main Motor Power：11kw
  • Max Rotating Speed：2400rpm
  • Fit for Take up Bobbin：Diameter 630mm
  • Core Wire Single Wire Dia：0.5-2.0mm
  • Magnetic Powder Clutch：2.5kgf
  • Operation Mode：Touch Screen Operation
  • Stranding Section Area：0.3-4.0mm2
  • Direction of Lay：Optional for Right or Left
  • Wire：Enamelled Wire
  • Transport Package：Standard Packing
  • Specification：3300L*1550W*1800H mm
  • Trademark：fuchuan
  • Origin：China
  • HS Code：8479811000
  • Production Capacity：50sets,Month

Description

Equipment modelsFC-650C-2Twisting usageIt is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.Single wire dia(mm)φ0.12-φ0.52Stranding section area (mm²)0.30-4.0Core wire single wire diaφ0.5-φ2.0Core wire stranding outer diaφ1.0-φ4.0Pitch(mm)11.6-100(34zones)Direction of layOptional for right or leftOuter dia*bore*outer widthφ630*φ56*475
φ630*φ127*475Max rotating speed2400(4800twist)Main motor power11KWInverter power11KWTension control methodTouch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbinMagnetic powder clutch2.5kgfProtectionMachine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.Brake modeElectromagnetic brakeTraversing methodRolling ring drive units, winding pitch and breadth are adjustableOperation modeTouch screen operationDimension(mm)3300L*1550w*1800HChina Fuchuan Best Quality Double Twisting Stranding Bunching Drawing Extrusion Machine
