• Model NO.：XJ-300,400,500
• Type：Single Stranding Machine
• Precision：High Precision
• Demoulding：Automatic
• Heating System：Electric
• Function：High Temperature Resistance
• Customized：Customized
• Transport Package：PE Film + Wooden Box
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：Dongguan City, Guangdong Province, China
• HS Code：8479400000
• Production Capacity：6 Sets,Month

Sutiable for twisting high-frequency wire, such as HDMI, DP, USB, CAT-7, data wire, electronic wire and etc.Core wire specificationAWG40 - AWG30AWG34 - AWG26AWG32 - AWG22Twisting ODΦ0.3 - 1.0mmΦ0.8 - 1.8mmΦ1.0 - 3.6mmRange of pitch5 - 30mm15 - 60mm15 - 100mmRoating speedMax.1400 rpmMax.1200 rpmMax.1000 rpmMain Power2HP3HP5HPPay-off tensionSlider prndulum rod + Hammer tension type power payoff, with tension displayer.Taping tensionConstant electromagnetic brake/automatic tracking tension, taping tension can be constant
 from start to end, no need artificial adjustment.Take-up tensionElectromagnetic tension, auto-tracking, keep constant from start to end, no need any adjustment.Traversing typeAxisrow type and servo control, no damage during the traversing process, traversing pitch can be
adjusted freely

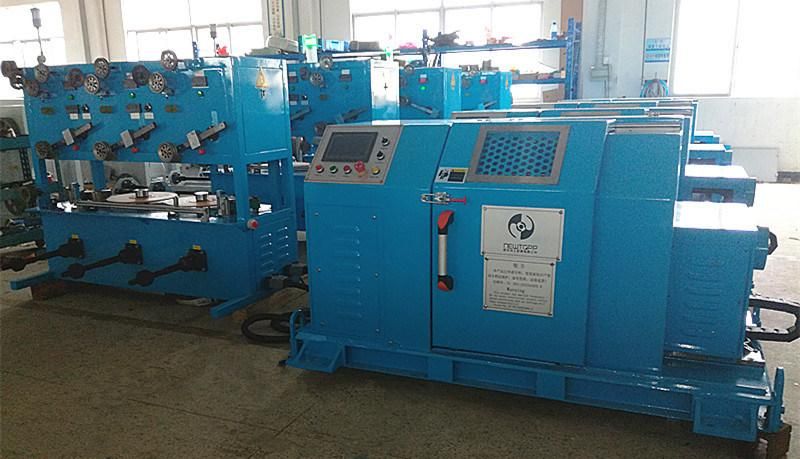

according to the wire sepecification.            Size( L*W*H)3000*1200*15003200*1400*15003800*1600*1500Gross Weight 1200Kg1500Kg2000Kg4. Machine Picture:

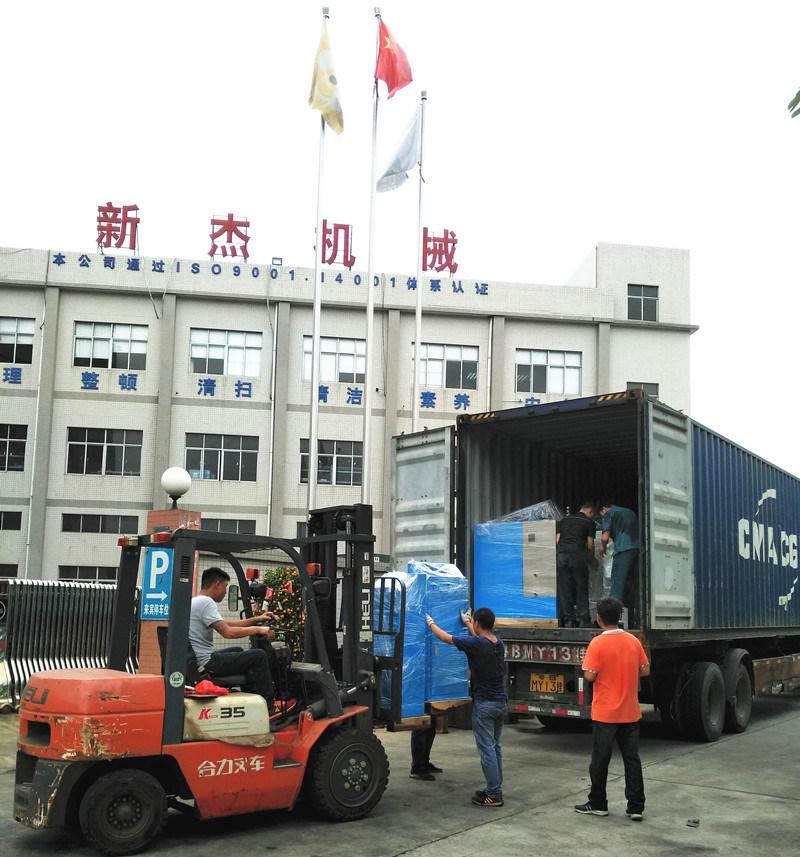

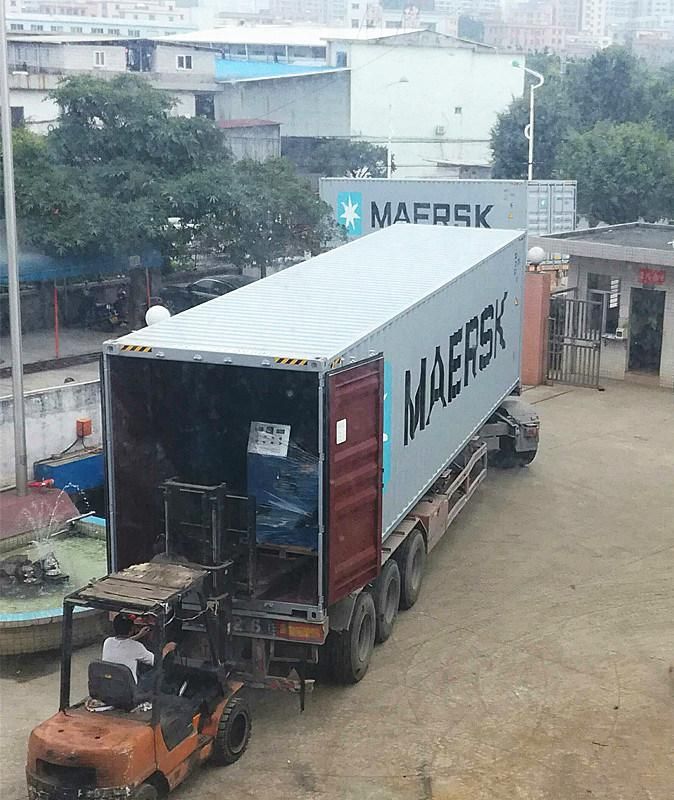

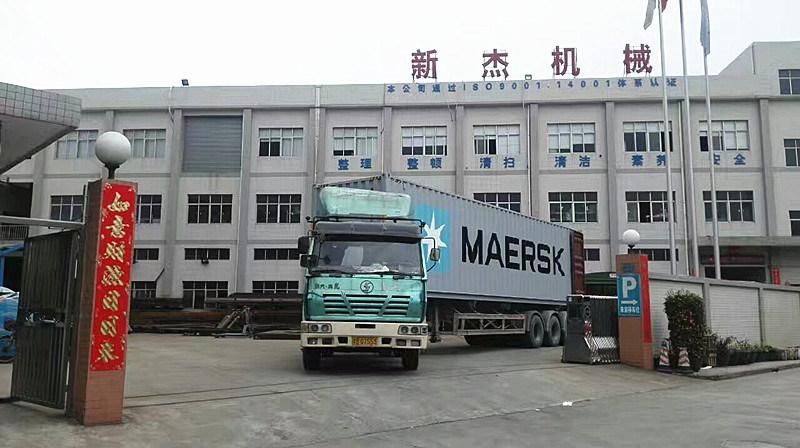

5.Packaging & Shipping:
6.Our Services:
Pre-sale Services:
1) Spot investigation and professional guiding suggestions;
2) Equipment configuration, model selection reference and technical consultation;
3) Onestop service for investment equipment,product developing, new materials researching and personnel training.
Sale Services:
1) Invite customers to inspect and take trials of finished machines;
2) Provide the training of the maintenance knowledge;
3) Improve the design to the operator's requirements.
After-sale Services:
1) Regular maintenance and product tracking service;
2) Cost price for required parts in lifelong period;
3) Provide quality and efficient after-sale service life long time.

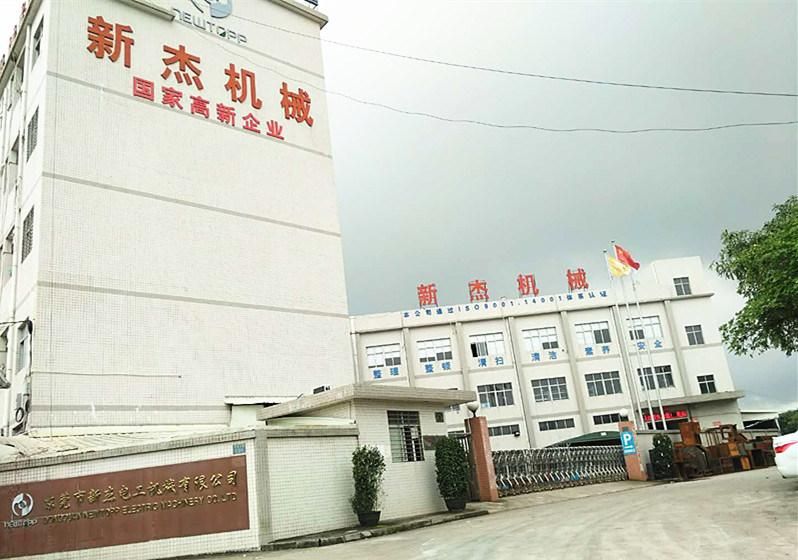

7. About Us:
Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which specializes in developing and manufacturing wire and cable machines, and our main products includes all kind of extrusion production line, single twisting machine, double twisting machine, cantilever stranding machine, cage-type twisting machine, planetary cabling machine, triple-core stranding with back-twist and taping, and single layer/double layer taping machine etc. and our products have passed CE certification and SGS audited, and we have passed ISO9001 since 2010.
10. Our Team and Exhibitions:9. FAQ
1) Are you a manufacturer or trading company?
   We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, there are total over 6000 spuare meters of production workshop in our factory.
2) What is the advantages of your machine compared with competitors?
    Our automatic control technology is in leading position in wire and cable equipment field.
    Good cost performance, quality is steady.
    We combine the equipment and the wire&cable technology, offer you technology assistance.
3) How can we get to your factory to see the machines works?
   Address: No.286 Huai'de road, ,Humen Town, Dongguan City,Guangdong Province,China.
   Only 40 minutes by car from Shenzhen Baoan International airport to our factory;
   Only 1.5 hours by car from Guangzhou Baiyun Airport to our factory;
   Only 17 minutes take high-speed rail from Guangzhou south station to Humen.
