• Model NO.：1246 Coiling machine
• Electric Element：Siemens and Omron
• Inverter：Siemens
• Bearing：Japan-NSK
• Gear Box：Siemens
• Color：Blue, Green, Red.... According to Customer R
• PLC：Siemens
• Coil Head：Dia120,130,140,15,160,170,180
• Transport Package：Wooden Packing or PE Film Simple Packing
• Specification：International standard
• Trademark：GOLDEN TECHNOLOGIES
• Origin：China
• HS Code：84772090
• Production Capacity：4sets,Month

Basic Info.

Model NO. 1246 Coiling machine Electric Element Siemens and Omron Inverter Siemens Bearing Japan-NSK Gear Box Siemens Color Blue, Green, Red.... According to Customer R PLC Siemens Coil Head Dia120/130/140/15/160/170/180 Transport Package Wooden Packing or PE Film Simple Packing Specification International standard Trademark GOLDEN TECHNOLOGIES Origin China HS Code 84772090 Production Capacity 4sets/Month

Product Description

(1)APPLICATION:

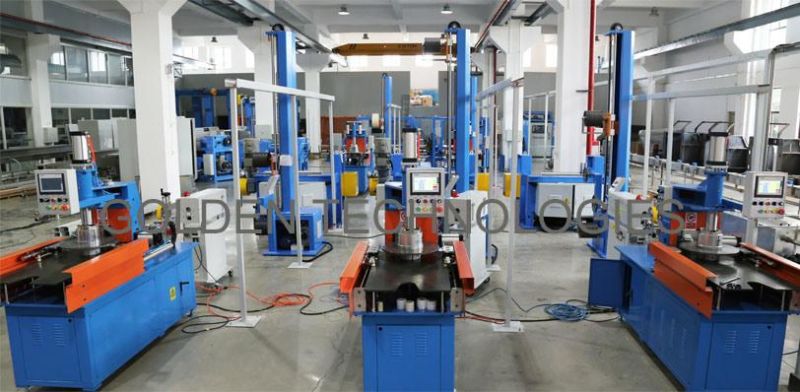

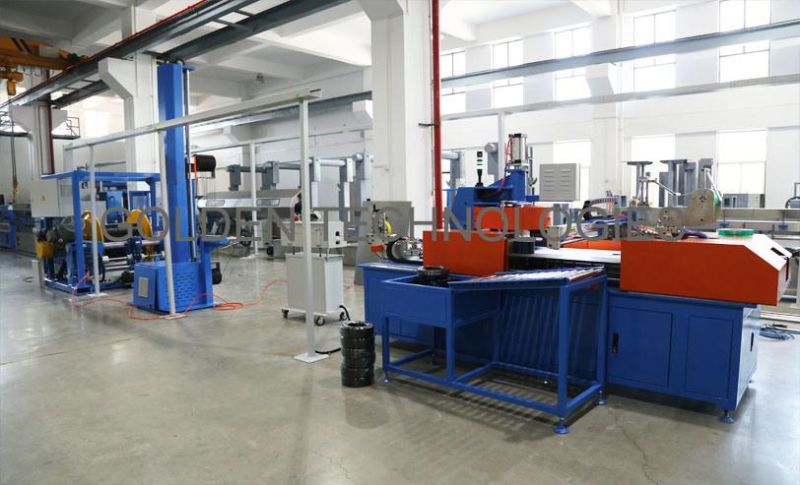

- Horizontally coiling wires from an extrusion line or a pay-off machine. The processes including length counting, wire feeding to coiling head, wire coiling, cutting wire when the preset length is reached, and move the finished coil to the wrapping station.

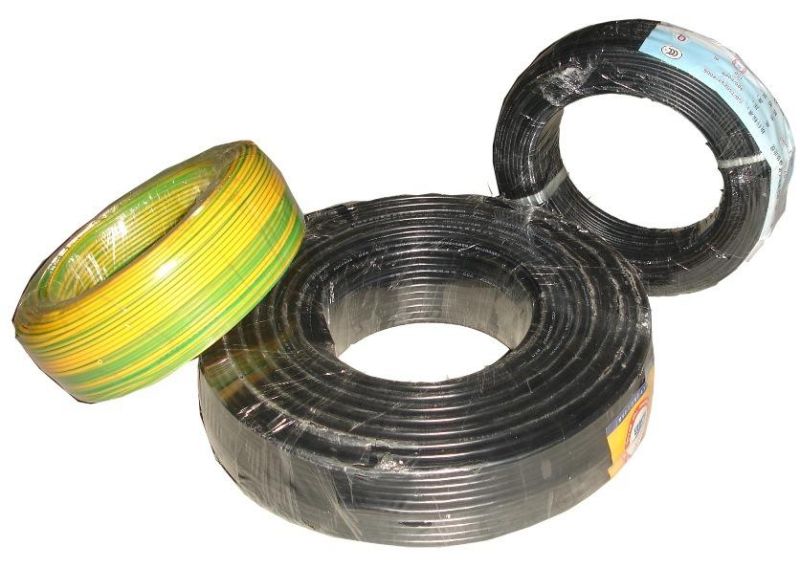

- High speed wrapping of your wire/cable coils.
- Coil dimension: Please read specification table.
- Automatic labeling system and wrapping together with each coil.




(2)FEATURES:

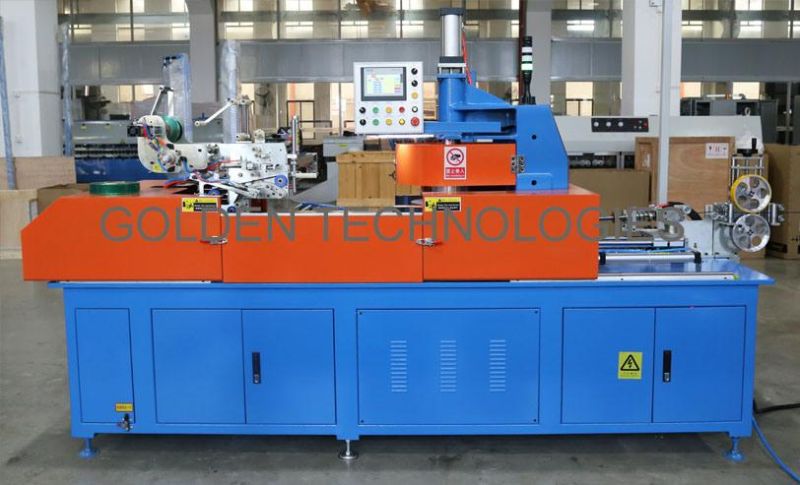

- Auto coiling wire from an extrusion line or from a pay-off machine and high speeds wrapping with PVC by one machine.
- Touching screen (HMI) make it easy to operate the machine.
- The machine will detect faults when the problem occurs, and give you alarm.
- Servo motor traversing system produces coil with smooth surface.
- The robot arms, driven by AC motor, move and turn the coil smoothly for wrapping.
- It is unnecessary to adjust any parts of the machine when change one size of coil to another.
- You may input and keep 99 types of coil data in the PLC memory.

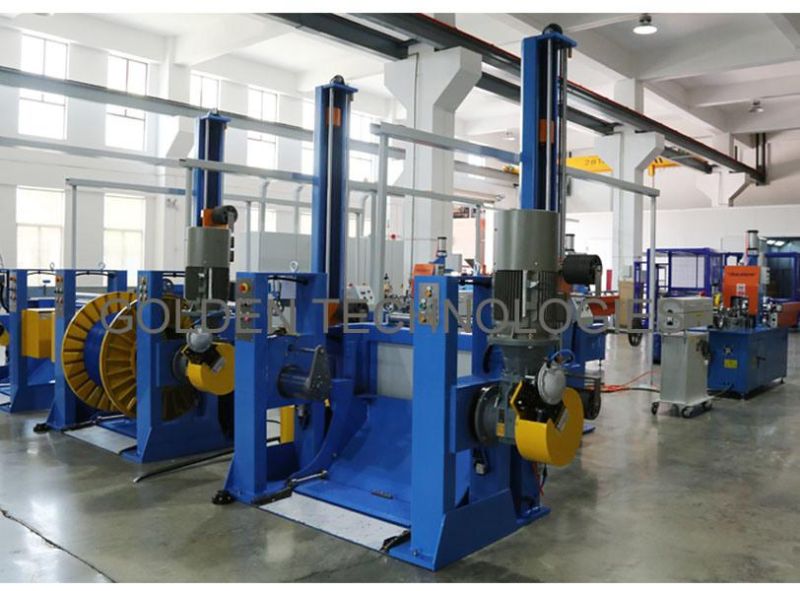

(3)COMPONENTS:

NO	Item	Quantity	Unit	NOTE
1	PAYOFF	1	Set	630-1250
3	DANCER	1	Set	200METERS
4	SPARK TEST	1	Set	15KV
5	LENGTH COUNT	1	Set
6	COILING MACHINE	1	Set
7	WRAPPING SYSTEM	1	Set
8	LABEL LING	1	Set

(4)ABOUT US
1. We produce all kinds of cable / wire making / processing equipment and accessories.
2. We are the leading manufacturer of  any kinds of complete wire and cable extrusion line in China since 2004.
3. We supply Site service: Install / debug / repair
4. Our machine has exported to over 60 different countries,like Germany,Poland,Italy,Russia,etc.
5. We electrical parts are used the international qualified brand, like Siemens, ABB, etc.
