• Model NO.：XJ-300,400,500
• Type：Single Stranding Machine
• Machine Type：Digtal Setting , Automatic
• Precision：High Precision
• Demoulding：Automatic
• Heating System：Electric
• Function：High Temperature Resistance
• Customized：Customized
• Transport Package：PE Film + Wooden Box
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：Dongguan, Guangdong, China
• HS Code：8479400000
• Production Capacity：20 Sets,Month

Sutiable for twisting high-frequency wire, such as HDMI, DP, USB, CAT-7, data wire, electronic wire and etc.Core wire specificationAWG40 - AWG30AWG34 - AWG26AWG32 - AWG22Twisting ODΦ0.3 - 1.0mmΦ0.8 - 1.8mmΦ1.0 - 3.6mmRange of pitch5 - 30mm15 - 60mm15 - 100mmRoating speedMax.1400 rpmMax.1200 rpmMax.1000 rpmMain Power2HP3HP5HPPay-off tensionSlider prndulum rod + Hammer tension type power payoff, with tension displayer.Taping tensionConstant electromagnetic brake/automatic tracking tension, taping tension can be constant
 from start to end, no need artificial adjustment.Take-up tensionElectromagnetic tension, auto-tracking, keep constant from start to end, no need any adjustment.Traversing typeAxisrow type and servo control, no damage during the traversing process, traversing pitch can be
adjusted freely

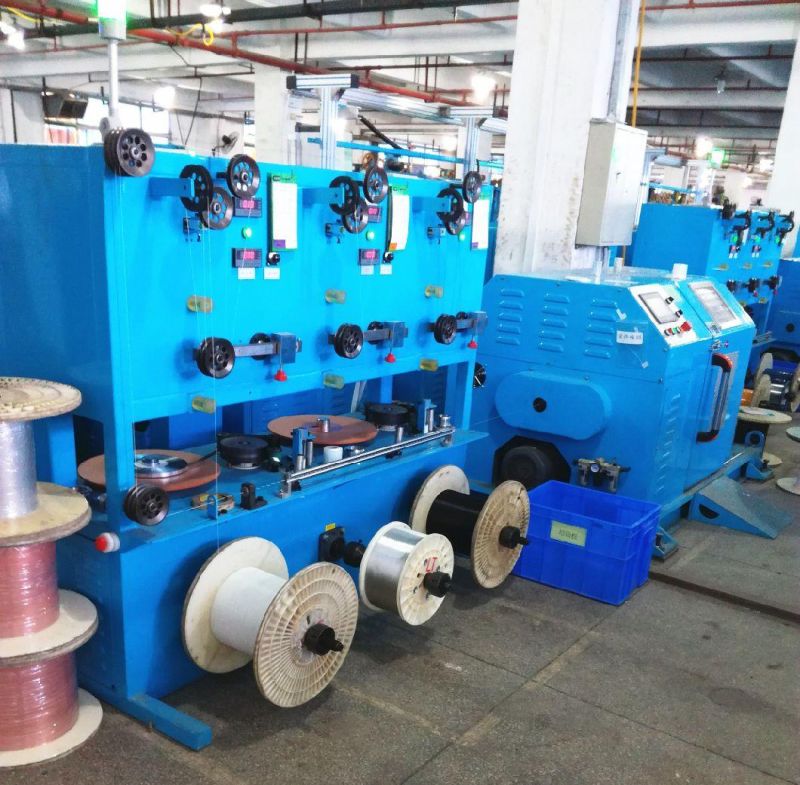

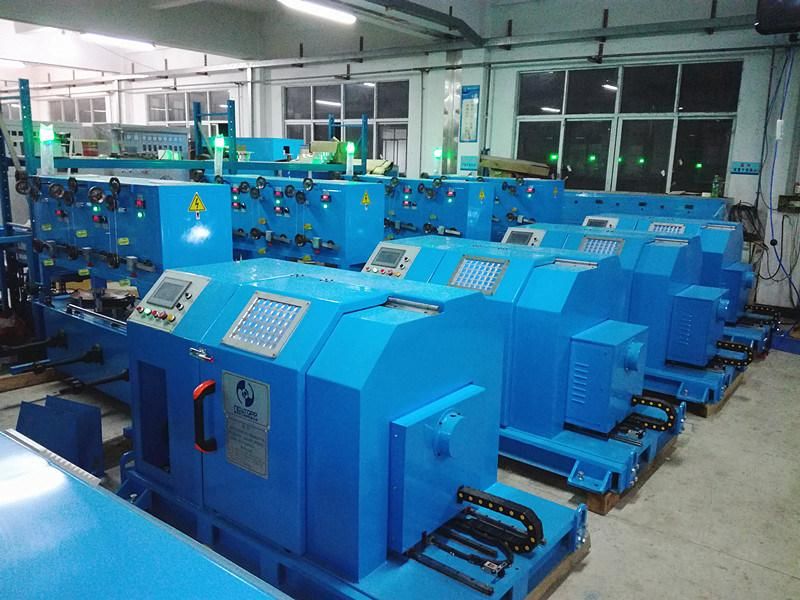

according to the wire sepecification.            Size( L*W*H)3000*1200*15003200*1400*15003800*1600*1500Gross Weight 1200Kg1500Kg2000Kg4. Machine Pictures:


5. Brand of main parts:
1) Motor: Siemens
2) Driver: Yaskawa or inovance
3) Bearing:NSK, NACHI, ASCHI
4) Electric components: Omron

6.Packaging & Shipping
1) Transparent PE film + Wooden box
2) Cardboard wrapping corner to protection, wire rope in fixed to sea ship
3) 20 Feet container for complete production Line equipment

7.Our Services
Pre-sale Services:
1) Spot investigation and professional guiding suggestions;
2) Equipment configuration, model selection reference and technical consultation;
3) Onestop service for investment equipment,product developing, new materials researching and personnel training.
Sale Services:
1) Invite customers to inspect and take trials of finished machines;
2) Provide the training of the maintenance knowledge;
3) Improve the design to the operator's requirements.
After-sale Services:
1) Regular maintenance and product tracking service;
2) Cost price for required parts in lifelong period;
3) Provide quality and efficient after-sale service life long time.

8.About us:
Dongguan NewTopp Electrical Machinery Co.,Ltd is a professional enterprise specializing in wire&cable equipment R&D, design and manufacture.With the continuous improvement of production technology level and Constantly increasing of R&D potency dimension, make the wire and cable equipment Process, performance increasingly perfect and excellent.

9.FAQ
1) Are you a manufacturer or trading company?
   We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, and there are more than 6000 spuare meters of production workshop and offices in our factory.
2) What is the advantages of your machine compared with competitors?
    Our automatic control technology is in leading position in wire and cable equipment field.
    Good cost performance and stable quality.
    We combine the equipment and the wire&cable technology, offer you technology assistance.
3) How can we get to your factory to see the machines works?
   Address: No.286 Huai'de road, ,Humen Town, Dongguan City,Guangdong Province,China.
   Only 40 minutes by car from Shenzhen Baoan International airport to our factory;
   Only 1.5 hours by car from Guangzhou Baiyun Airport to our factory;
   Only 17 minutes take high-speed rail from Guangzhou south station9
