Laboratory Thermoplastic Polymer Melt Pressure Filter Tester

Harbin Hapro Electric Technology Co., Ltd.
  • After-sales Service：a Lifetime
  • Driven Type：Electric
  • Condition：New
  • Certification：CE
  • Warranty：12 Months
  • Screw：Single-Screw

Base Info

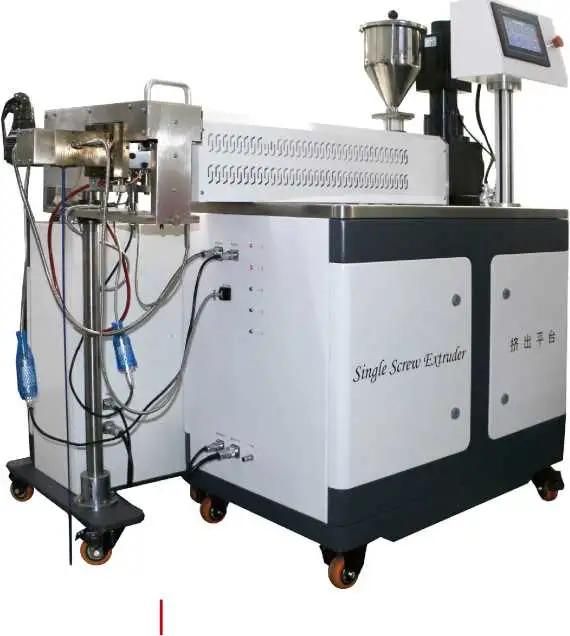

  • Extruder：Single Screw
  • Press Filter Die Diameter：4mm
  • Die Heating Power：800W
  • Screw Diameter：30mm
  • Screw L:D：25:1
  • Filter Size：2-Layer 30,325,2-Layer 30,400,3-Layer 30,60,200
  • Transport Package：Plywood Sea
  • Trademark：Hapro
  • Origin：China
  • HS Code：9024800000
  • Production Capacity：100,Year

Description

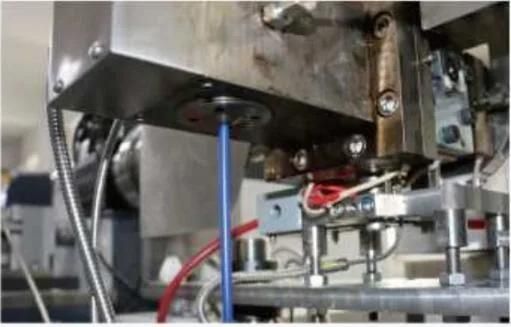

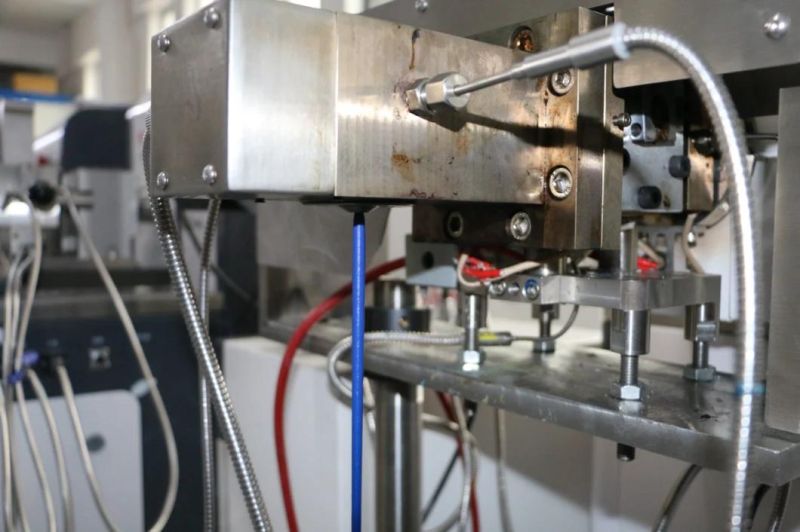

 Dies head
(Select two from four)Capillary Die (InnerФ1.0,Ф1.27,Ф2.0 L:D:20/1,30/1,40/1)Flat Die( L×W:60×1.5 mm, 0.8 kW)Pipe Die(Inner Ф10, Outer Ф12.5)Coating Wire Die
(Core Ф1.5,Die outlet Ф4.0)

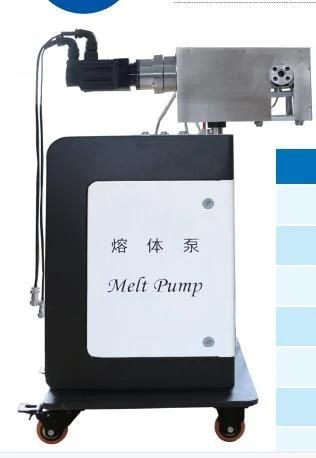

2, Melt pump system

Laboratory Thermoplastic Polymer Melt Pressure Filter TesterTechnical parametersSpeed range0-50 r/min adjustmentServo drive systemDeltaReducerAPEXInput pressure sensor0~30 MPaHeating bar4x250WGear shape/Straight toothGear shape/Helical toothMax. temp350C 400COutput pressure sensor0~30 Mpa (100Mpa available)

Laboratory Thermoplastic Polymer Melt Pressure Filter TesterLaboratory Thermoplastic Polymer Melt Pressure Filter TesterLaboratory Thermoplastic Polymer Melt Pressure Filter TesterLaboratory Thermoplastic Polymer Melt Pressure Filter Tester
