Excellent Core Wire Extruding Machine and Extruding Equipment
Dongguan Newtopp Electrical Machinery Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CCC, RoHS, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
- Extrusion Material：PVC,PE,Lshf,TPU,XLPE etc.
Base Info
- Model NO.：XJ-30,40,50,60mm
- Precision：High Precision
- Demoulding：Automatic
- Heating System：Electric
- Function：High Temperature Resistance
- Mould Life：>1, 000, 000 Shots
- Automatic Grade：Automatic
- Customized：Customized
- Transport Package：PE Film + Wooden Pallets
- Specification：CE SGS
- Trademark：NEWTOPP
- Origin：Dongguan City, China
- HS Code：8479400000
- Production Capacity：8 Sets,Month
Description
Passive / active type shaftless pay-offPay-off bobbin Φ300-400mm Φ300-400mm Φ400-500mm Φ400-500mm Screw diameter Φ30mm Φ40mm Φ50mm Φ60mm Screw L/D ratio 26:1 26:1 26:1 26:1 Extrusion output 35kg/h 45kg/h 60kg/h 80kg/h Main power 7.5HP 10HP 15HP 20HP Wire specification AWG36-30 AWG32-26 AWG30-24 AWG28-20 Cooling device U-type single-layer water trough Accumulate length 0-200m 0-200m 0-200m 0-200m Capstan power 3HP 3HP 3HP 5HP Max speed 600m/min 500m/min 400m/min 400m/min Take-up type Double shaft Double shaft Double shaft Double shaft Take-up bobbin Φ400-500mm Φ400-500mm Φ500-630mm Φ500-630mm Size( mm) 20000*1500*2100 20000*1600*2100 20000*1700*2100 23000*1800*2103 Total Weight 4.0T 4.5T 5.0T 6.0T
1) Motor: Siemens
2) Driver: Yaskawa
3) Bearing: NSK, NACHI, ASCHI
4) Electric components: Omron,Schneider
5) PLC: Siemens
5. Safety performances:
1) Switch-off at overpressure
2) Disabling signal at under temperatures
3) Stop at over temperature
3) Motor power limit
4) Emergency stop
5) Monitoring of tolerances and alarms
6) Monitoring of sensors

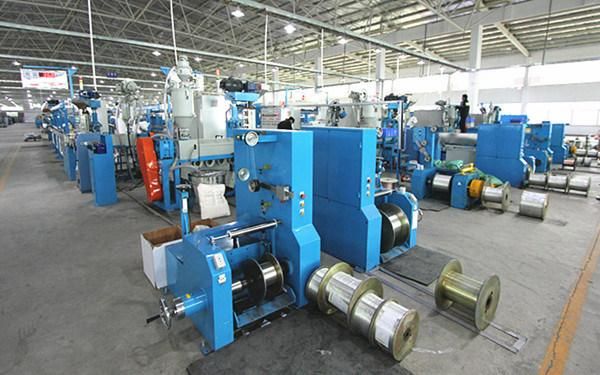

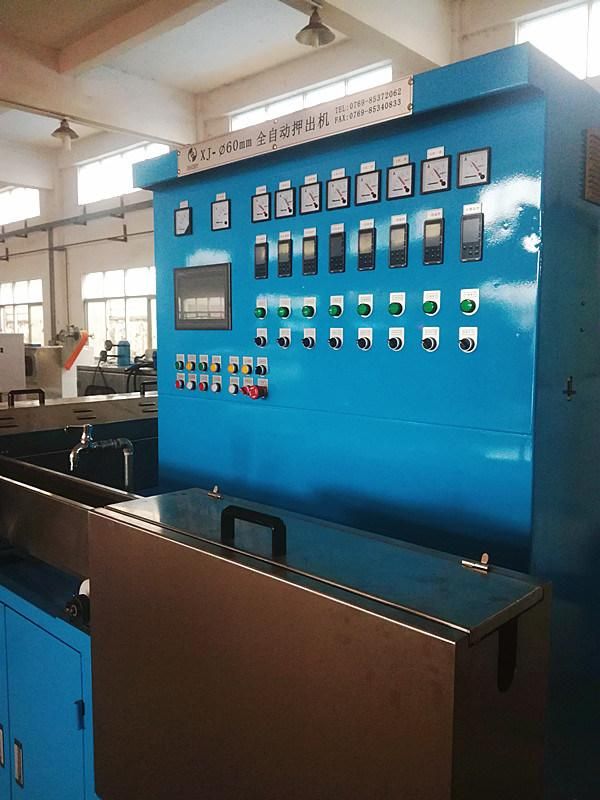

6. Machine pictures:
7. Packing and Shipment:
8. About us
Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which specializes in developing and manufacturing wire and cable machines, and our main products includes all kind of extrusion production line, single twisting machine, double twisting machine, cantilever stranding machine, cage-type twisting machine, planetary cabling machine, triple-core stranding with back-twist and taping, and single layer/double layer taping machine etc. Our products have passed CE certification and SGS audited , and have passed ISO9001:2008 since 2010.
9. Our exhibitions:
10.FAQ:
1) Are you a manufacturer or trading company?
We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, and there are more than 6000 spuare meters of production workshop and offices in our factory.
2) What is the advantages of your machine compared with competitors?
Our automatic control technology is in leading position in wire and cable equipment field.
Good cost performance, quality is steady.
We combine the equipment and the wire&cable technology, offer you technology assistance.
3) How can we get to your factory to see the machines works?
Address: No.286 Huai'de road, ,Humen Town, Dongguan City,Guangdong Province,China.
Only 40 minutes by car from Shenzhen Baoan International airport to our factory;
Only 1.5 hours by car from Guangzhou Baiyun Airport to our factory;
Only 17 minutes take high-speed rail from Guangzhou south station to Humen.
11. Contact information:
Contact: Mr.David Hou (Sales Engineer)
Mobile: 0086-188 2296 5628 13650028681
