• Model NO.：SR-SP20
• Crimping Force：2.0t (Customized)
• Applicable Terminal：Continuous Terminal
• Applicable Wire：AWG#18 - AWG#28 Ribbon Cable, Wire
• Transport Package：Plywood Case
• Specification：1800*1400*1550mm
• Trademark：Sinrad
• Origin：China
• HS Code：8479819000
• Production Capacity：50 Sets,Month

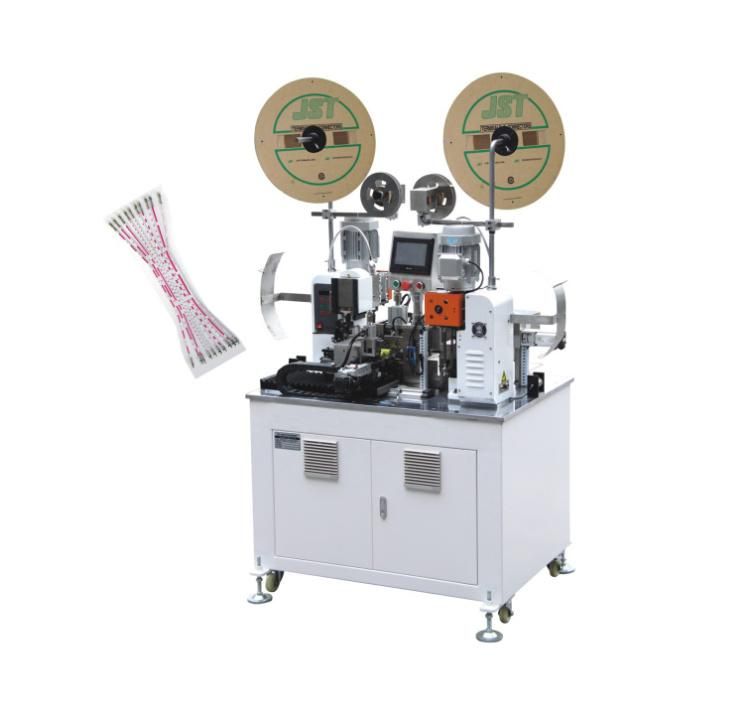

Specification: ModelSR-SP20Capacitymax. 22000pins/H (20pin)Cutting length55-850mm customizedStripping lengthA side 0-7mm, B side 0-9mmSingle wireOD 0.8-2.0mmMaximum cable width20mmMaximum cable pin20pinApplicable cableAWG18-28 ribbon cable or electronic wireMachine sizeL1800*W1400*H1550mmNet Weight450KGVoltageAC220V 50/60HZPower4kwAir source0.4-0.6MPaInstallation space2000*3000mm Features:

1: This machine adopts Japanese Panasonic control system and Panasonic servo to achieve precision, high efficiency and stability.

2: Adjust by touch screen control, including: line length, stripping length, terminal position, etc., all touch screen adjustments; the entire operation process will be seen at a glance, and multiple devices can be operated by one person.

3: Product function: Double-end crimping terminal; applied to the cable, the electronic wire can be processed on this device, without the need to replace accessories, only minor adjustments can be made, to achieve multi-purpose machine, reduce equipment investment.

4: Applicable terminal model, PH, XH, ZH, SCN, SM, VH, DuPont and other continuous terminal crimping.

5: Good stability, the use of eccentric shaft, balanced terminal pressure, neat pressing, high yield, cam transmission structure, control branching movement is stable and fast.

6: High efficiency, the pressing speed can reach 22000pins H (max), the machine can work 24 hours.

7: Special function:

   (1) 2pin cable can output 5pcs at the same time, single electronic wire can output 1-8pcs.

   (2) The A and B ends are separated by positive and negative pressure ends, and the B end can be half or fully stripped.

   (3) Steering crimping, two-end crimping, single-end crimping, interval crimping, positive and negative crimping, etc.

8: Commissioning: Commissioning is simple, with full servo control of wire delivery, branch length, cutting, and stripping.



Pictures:



 Contact:


 FAQ:

1 Price terms

The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.

2 Can I send samples to check the machine quality.

Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.

3 How to learn the machine?

1) Offer free technology learning support in our factory

2) Provide detail user manual with detail video illustration

3) Support engineer service at site if clients asking for

4 How about the lead time and delivery time of order?

Standard model, can be ship out within 3~7days after confirmed order and deposit.

Customized model, normally lead time is 10~30 days, after confirmed all order detail deposit and got samples.

Company info:
Sinrad Technology Co.,Ltd, specialized in automation machine, customizing and manufacturing cable processing(cutting, striping, twisting, crimping, soldering, housing inserting, winding, binding, testing, etc.) machine, automatic soldering machine, intelligent soldering machine, and other production equipment.
