Cost Effective Cable Manufacturing Cutting Equipment Planetary Stranding Cable Machine
Hejian Bao Hong Electrical Machinery Co., Ltd.- After-sales Service：One Year Warranty
- Driven Type：Electric
- Condition：New
- Certification：ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
Base Info
- Mould Life：>1,000,000 Shots
- Type：To Back Stranding Machine
- Material：Metal
- Colour：as Required
- Wire Diameter Specification：1.5-4.0mm
- Cage Speed：80-106 Rpm
- Stranding Pitch：79-1075 mm
- Traction Wheel Diameter：2000 mm
- Pay-off Bobbin in Cage：Pnd 500
- Central Pay-off Bobbin：Pnd 50
- Take-up Bobbin：Pn1250-Pn2500
- Central Height：1000 mm
- Transport Package：Seaworthy Packing
- Specification：500 , 1+6+12+18
- Trademark：BH
- Origin：Hejian, Hebei, China
- HS Code：8479400000
- Production Capacity：15 Sets,Month
Description
Model (Planetary Stranding Machine)
JLY-315 JLY-400 JLY-500 JLY-630 Diameter of single wire Copper φ1-1.6 mm φ1-4 mm φ1.2-5 mm φ1.5-5 mm Aluminum φ1.2-2 mm φ1.2-4 mm φ1.4-5 mm φ2.0-5 mm Maximum stranded conductor OD
φ14 mm φ28 mm φ35 mm φ45 mm Stranding Pitch 6 Bobbin Stranding Cage 26-435 39-695 44-770 48-840 12 Bobbin Stranding Cage 30-526 43-774 47-858 50-928 18 Bobbin Stranding Cage 34-639 47-858 55-1001 65-1201 24 Bobbin Stranding Cage 38-749 51-940 63-1151 75-1601 Rotating Speed 6 Bobbin Stranding Cage 218 r/min 120 r/min 106 r/min 55 r/min 12 Bobbin Stranding Cage 118 r/min 110 r/min 97.5 r/min 45 r/min 18 Bobbin Stranding Cage 108 r/min 100 r/min 82.9 r/min 35 r/min 24 Bobbin Stranding Cage 98 r/min 90 r/min 74 r/min 25 r/min Capstan Capstan Wheel Diameter 1000 mm 1600 mm 1800 mm 2000 mm Maximum Haul-off Force 2T 5T 10T 15T Motor Power 18.5 KW 22 KW 37 KW 55 KW Bobbin Size 315 mm 400 mm 500 mm 630 mm Center Payoff Bobbin 315 mm 1250 mm 1600 mm 1600 mm Take-up Bobbin 1250 mm 2000 mm 2000 mm 2500 mm Maximum Haul-off Linear Speed 25 m/min 30 m/min 34.7 m/min 20 m/min Central Height 1000 mm 1000 mm 1000 mm 1100 mm

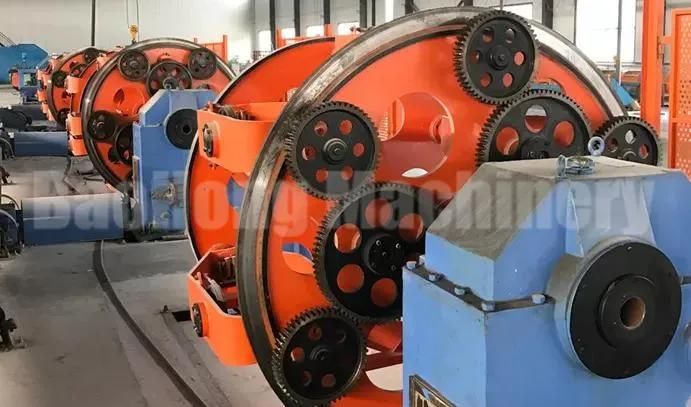

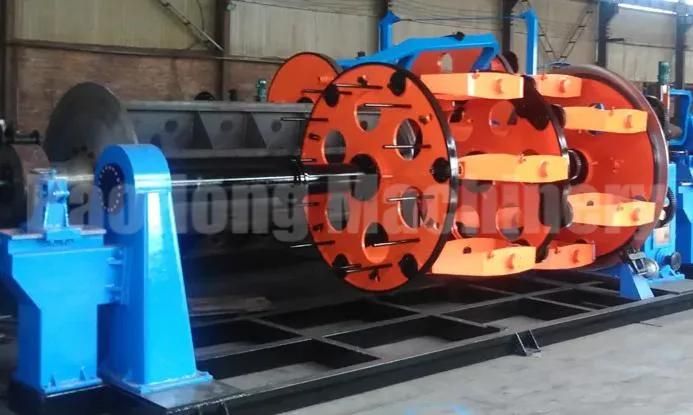

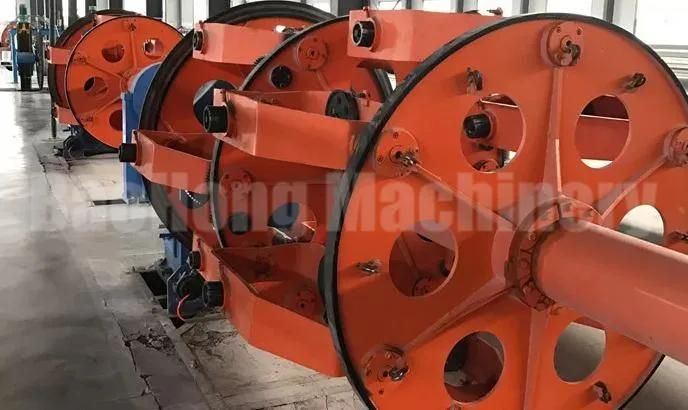

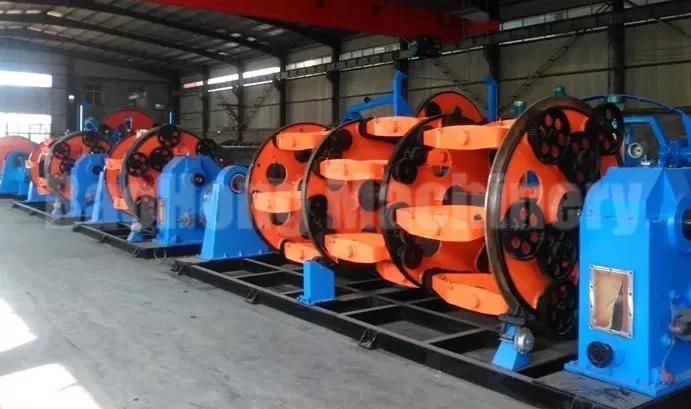

5.Photo
5.Photo
