• Model NO.：Top4H
• Type：High-speed Chip Mounter
• Item：Jaguar Top-4h
• Jaguar Top-4h：4 Pieces
• Stable Practical Speed：16000-18000cph
• Max Speed：23000cph
• Accuracy：±0.1
• Max Mounting  PCB Size：1200mm*300mm
• Max Moving Range： X:1220mm, Y:360mm
• Z Axis Max Moving Range：12mm
• Max No. of Feeders ：12 Pieces
• Operation System：Windows 7
• Transport Package：Wooden Box
• Specification：CE
• Trademark：JAGUAR
• Origin：China
• HS Code：85151900
• Production Capacity：50sets,Month

Basic Info.

Model NO. Top4H Type High-speed Chip Mounter Item Jaguar Top-4h Jaguar Top-4h 4 Pieces Stable Practical Speed 16000-18000cph  Max Speed 23000cph  Accuracy ±0.1 Max Mounting  PCB Size 1200mm*300mm Max Moving Range  X:1220mm, Y:360mm Z Axis Max Moving Range 12mm Max No. of Feeders  12 Pieces  Operation System Windows 7  Transport Package Wooden Box Specification CE Trademark JAGUAR Origin China HS Code 85151900 Production Capacity 50sets/Month

Product Description

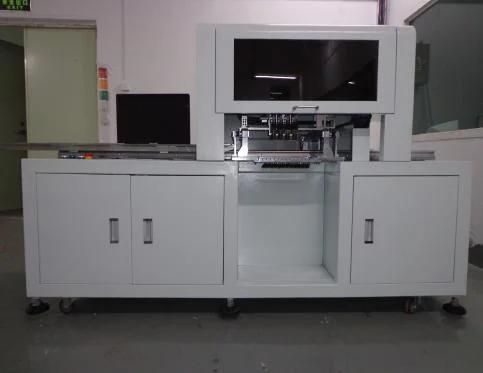

                       Jaguar Pick and place machine model No. TOP-4H



Futures:

1. SMT pick and place machine adopts Panasonic servo motor, imported railway to ensure it is stable and accuracy
2. SMT pick and place machine X.Y.Table axis adopts Panasonic servo drive, cooperated with imported liner railway ensures its accuracy and speed
3. Four mounting heads work simultaneously, much faster. SMT pick and place machine nozzle above and down adopts  imported railway with high precision and durable lifetime
4. Easy operate program,much more convenient,automatic vision makes position fixing more accurate and convenient
5. SMT pick and place machine have mutil-feeder optional,can meet different kinds of LED mounting.
6. Powerful software adopts numbers and images to display the program coordinate, easy and more convenient.
7. Software adopts data system,and store different types of pcb for convenient adjustment,just need to programming one time for new products to use forever
8. Platform:Y axis, X axis can be moved manually,speed adjustable,can achieve arbitrary point manual arrived,convenient programming.
9. LED pick and place machine use imported vacuum detection system,it can check the suction accurately to prevent material leakage and throwing effectively
10. Internal negative pressure system: use imported vacuum pump
11. Optional:8mm,12mm,16mm,24mm automatic feeder,different nozzle,industrial pump,air compressor.
12. New function :added camera automatic recognition fidicul mark,however,automatic offset all coordinates position.

Specification:

Item	JAGUAR Top-4H
Mounting Heads	4 pieces
Stable practical Speed	16000-18000cph
Max Speed	23000cph
Accuracy	±0.1
Max Mounting  pcb size	1200mm*300mm
Max moving range	X:1220mm, Y:360mm
Z axis max moving range	12mm
pick and place components size	all kinds of leds and most smd components including the follows
Nozzles rotate angles	360º can pick and place any sizes of components
Max No. of Feeders	12 pieces
Feeder sizes available	8mm,12mm,16mm, 24mm ,32mm
Operation System	Windows 7
Programming Method	PC +Visual Camera position
Dimensions	L2000*W800*H1300(MM)
Net Weight	Approx 600kg
Air Pressure	0.55MPa (6kgf/cm2)
Power Supply	Single Phrase ,220V, 50/60Hz, 1 KW
