• Model NO.：PGB-700
• Installation：Vertical
• Driven Type：Electric
• Transport Package：Polywood Cases
• Specification：700x700x100
• Trademark：D&H
• Origin：China
• HS Code：8424899990
• Production Capacity：1000,Year

Basic Info.

Model NO. PGB-700 Installation Vertical Driven Type Electric Transport Package Polywood Cases Specification 700x700x100 Trademark D&H Origin China HS Code 8424899990 Production Capacity 1000/Year

Product Description

PGB-700 epoxy resin two-component dispensing machine
Strong versatility
Multiple configuration
High production capacity
High precision

Model: PGB-700
Dimension: 1500*1100*1600mm
XYZ working area: 700*700*100mm

Glue Potting Machine PGB-700

Category: Glue Potting Machine
Brand: D&H
Model:PGB-700
Applications:
Reverse Sensor, Electronic Circuit Board, Electronic Ballast ,air Filters, LED products ,Electronic components,Crafts,Ads modules, Capacitors, Power supply, Transformer, end cap for filter, solar junction box ,Power module, Ignition coil, Sensor, Photovoltaic module, Photovoltaic inverter. Etc


Suitable Material: AB part adhesive , 2K potting compound materials , 2-part materials , two component potting compound, silicone , epoxy resin, polyurethane ...

Features

1,Glue controlling system of metering, mixing and potting.
2,Accurate metering and even mixing helps to avoid the waste of glue.
3,Dispensing size and positioning keep machine work consistent and fast.
4,Good universality
5,Easy to program and operate.
6,Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.

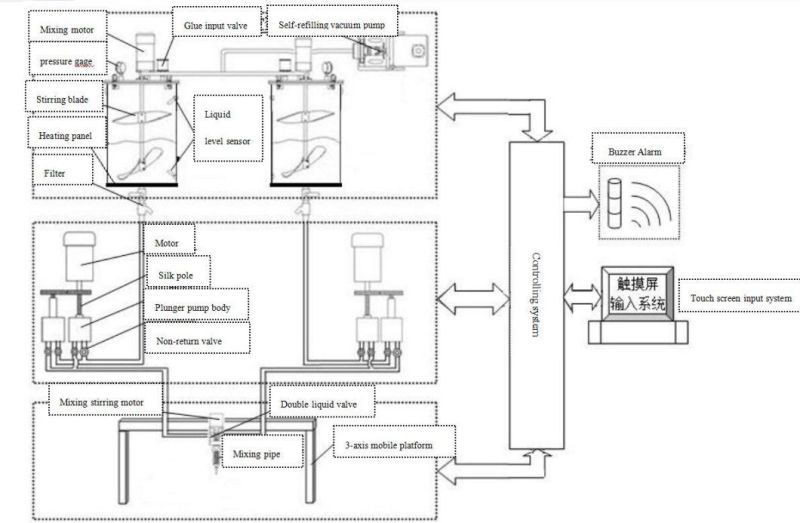

Machine description and working principle
Automatic glue mixing machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio of glue.
The glue are stored in two barrels separately, according the glue weight ratio and volume demand automatic metering by two sets of precision pumps, supply to a mixing device fully mixing, and then potting/dispensing the desired products.


Liquid A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.


Machine description and working principle

Automatic glue mixing machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio of glue.
The glue are stored in two barrels separately, according the glue weight ratio and volume demand automatic metering by two sets of precision pumps, supply to a mixing device fully mixing, and then potting/dispensing the desired products.
