• Model NO.：SS1001
• Certification：ISO, Internal
• Automatic Grade：Automatic
• Installation：Desktop
• Driven Type：Electric
• Mould Life：300,000-1,000,000 Shots
• Function：High Precision and Steady
• Transport Package：Customs Approved Wood Box
• Trademark：SanShine
• Origin：China
• Production Capacity：5000sets,Year

Overview Detailed Photos

Product Description

Description :

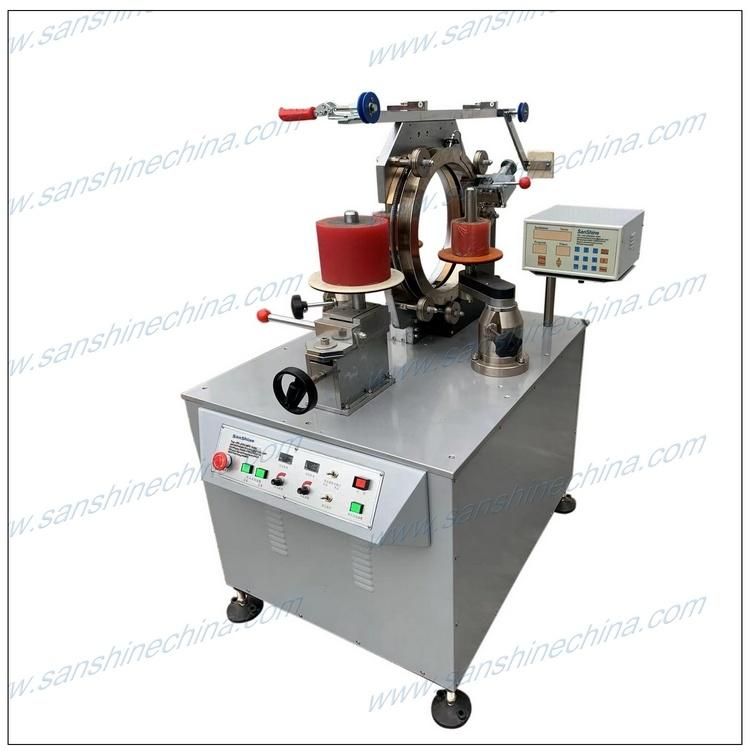

SS1001 Gear type Digital Automatic Big Toroid Winding Machines adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-winding machine. it is used for winding super big toroidal inductor with thick wire, toroidal transformer with thick wire, toroidal current transformer with thick wire, toroidal coil with thick wire , toroid choke coil, power inductors, power magnetics, UPS inductor with thick wire,  converter inductors with thick wire,  heavy toroidal core with heavy wire coils, extra high voltage toroidal transformer, etc.
Features :
1. Collocate the gear type winding head to wind very heavy wire, and interchangeable roller table with different size shuttle(magazine) for different dimensions coils and different wires,turns,so that to reduce the cost. one set standard automatic toroid coil winding machne include one PCS winding shuttle only, other sizes winding shuttles are optional.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for loading and winding.
4. Accurately count length of loading by limited-switch.
5. Accurately count turns of winding by photo-electricity sensor.
6. Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 29 sets programes with off-power memory retention.
Specification :

Wire diameter1.0 -4.5mmMax. winding speed100 RPMMax. final coil O. D.Φ 250 -800mmWire spacingstepping motorMin. final coil I. D.Φ 80mmSupply voltageAC220V,50/60Hz single phaseMax. final coil height250mmMechanical dimensionsdepend on different core sizeController storage capacity programs29(sets)Weightdepend on different core size  Our Services
