• Model NO.：XJ-500
• Type：To Back Stranding Machine
• Motor：Siemens
• Transport Package：PE Film + Wooden Box
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：Dongguan City, China
• HS Code：8479400000
• Production Capacity：6 Sets,Month

Basic Info.

Model NO. XJ-500 Type To Back Stranding Machine Motor Siemens Transport Package PE Film + Wooden Box Specification CE SGS Trademark NEWTOPP Origin Dongguan City, China HS Code 8479400000 Production Capacity 6 Sets/Month

Product Description

High-Speed Lan Cable Back-Twisting and Pair Twister 1.Application:
Used for Cat5,Cat5e,Cat6,Cat7 and so on data cable back-twist and pair twisting.
2.Machine Features:
Back-twist before pair twisting and reduce the wire damage during twisting progress; back-twist and pair twisting machine worked together.
3.Equipment composition:

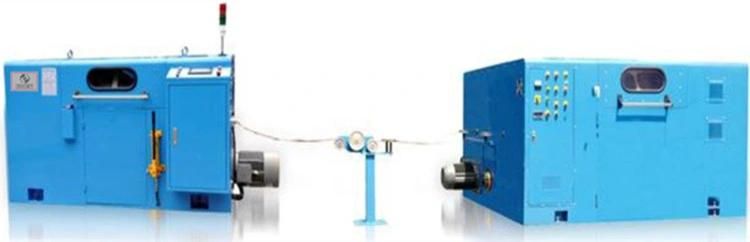

Φ500 Active Back-twist Pay-off Machine + Φ500 Pair Twisting Machine
4.Technical Parameters:

Model	XJ-500 Active Back-twist  Pay-off Machine
Max rotate speed	1000 RPM
Wire diameter	Φ0.4-1.5MM
Pay-off bobbin	Φ500MM
Tension range	1-20N
Pay-off speed	0-120M/MIN
Backtwist rate	0-50%
Driving motor	4KW
Pay-off motor	0.75KW
Lifting motor	0.75KW



Model	XJ-500 Pair Twisting Machine
Wire diameter	MaxΦ3.1mm
Pitch range	6-54.7mm
Rotate speed	Max 2500RPM
Line speed	Max 120M/min
Pay-off tension	Tension ontrolled by slider rod feedback
Take-up tension	Magnetic powder clutch, bobbin size auto-tracking.
Take-up lifting	Auto-lifting hydraulic pressure
Bobbin size	Φ500mm

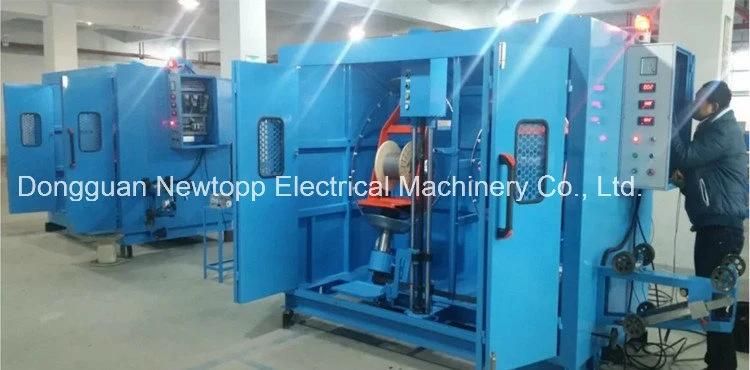

5. Machine Pictures:


6. Brand of main parts:
1) Motor: Siemens; TECO
2) Inverter: Yaskawa or inovance
3) Bearing:NSK, NACHI, ASCHI
4) Electric components: Omron
7. Safety performances:
1) Switch-off at overpressure
2) Disabling signal at under temperatures
3) Stop at over temperature
3) Motor power limit
4) Emergency stop
5) Monitoring of tolerances and alarms
6) Monitoring of sensors
8.Our Services
1) Motor: Siemens
2) Inverter: Yaskawa or Inovance
3) PLC: Siemens
4) Bearing: NSK, NACHI, ASCHI
5) Electric components: Omron, Shilin.
9. Company Informations:

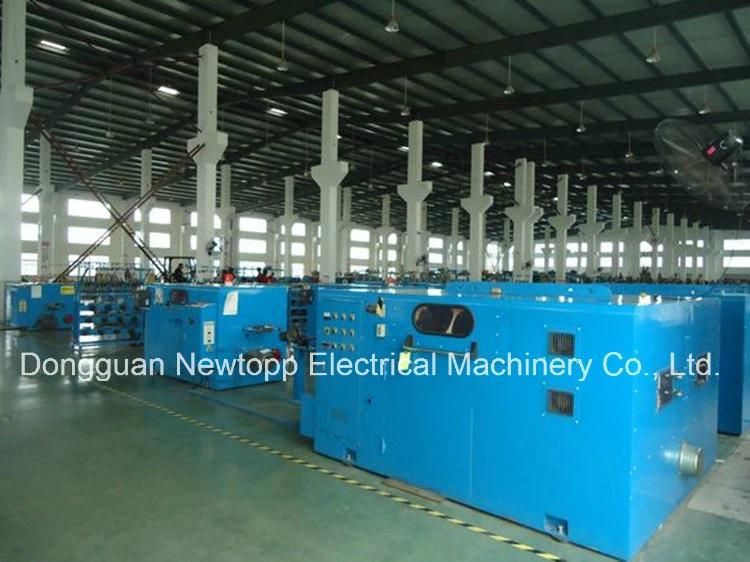

Dongguan NewTopp Electrical Machinery Co.,Ltd is a professional enterprise specializing in wire&cable equipment R&D, design and manufacture.With the continuous improvement of production technology level and Constantly increasing of R&D potency dimension, make the wire and cable equipment Process, performance increasingly perfect and excellent.
10.FAQ
1) Are you a manufacturer or trading company?
We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, and there are total over 6000 spuare meters of production workshops and offices in our factory.
2) How can we get to your factory to see the machines?
Add: No286 Huai'de road, Humen Town, Dongguan City,Guangdong Province,China.
Only 40 minutes by car from Shenzhen Baoan International airport to our factory;
Only 1.5 hours by car from Guangzhou Baiyun Airport to our factory;
Only 17 minutes by high-speed rail from Guangzhou south station to Humen.
