Wl-668f Multi-Core Flat Cable Splitting Stripping Cutting Machine
Suzhou Crown Electronic Technology Co., Ltd.- After-sales Service：1 Year
- Driven Type：Electric
- Condition：New
- Certification：CE
- Model：Wl-668f
- Cutting Length：1-99,999.9mm
Base Info
- Model NO.：WL-668F
- Stripping Length：Head Stripping: 25mm, Tail Stripping: 80mm
- Middle Stripping：15 Sections
- Slitting Length：0.1-150mm
- Core Wire Cutting：0.1-10mm2
- Cutting Tolerance：0.002*L mm
- Catheter Size：3*20mm
- Blade Material：Imported High-Speed Steel
- Drive Mode：4-Wheel Drive
- Cable Pressure Adjustment：Yes
- Pulse Equivalent：No Error Within 5mm
- Drive Motor：Drive Motor
- Transport Package：Carton
- Specification：49*45*35cm
- Trademark：Crown
- Origin：China, Kunshan
- HS Code：8479819000
- Production Capacity：L=100mm, 2, 000-3, 000PCS,H
Description

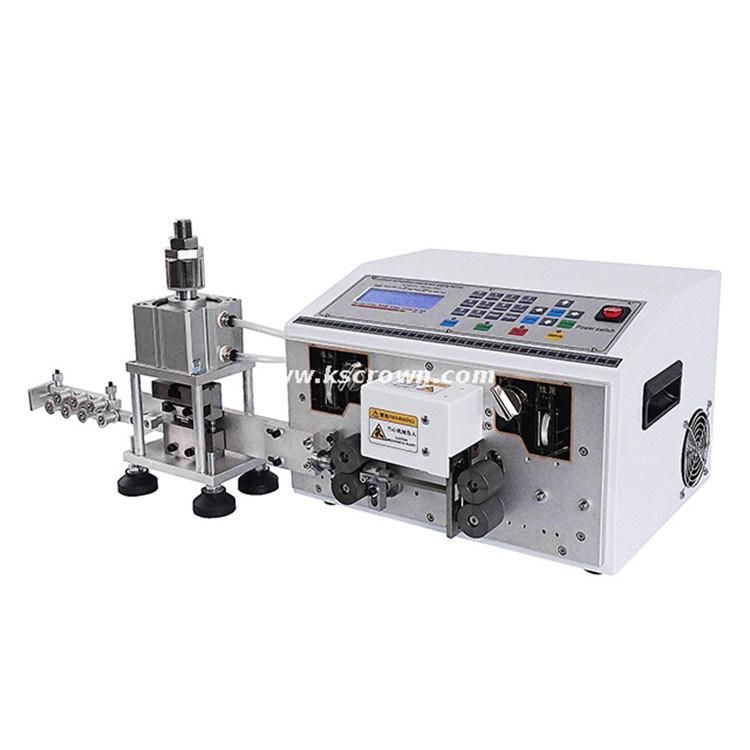

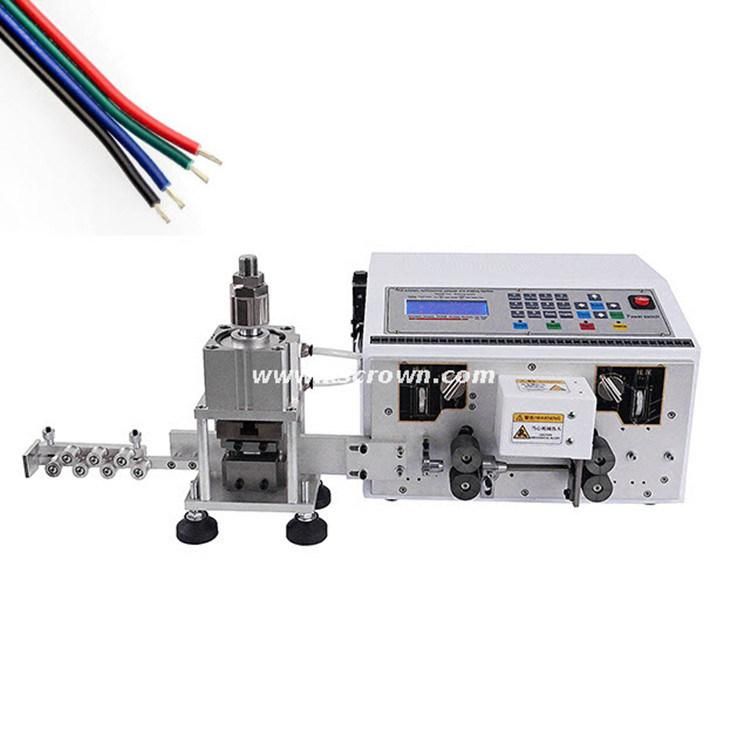

This is a fully automatic flat cable cutting slitting and stripping machine. It is able to process of twin flat cables/parallel flat cables and multi-pin flat cables.
Function: flat cable cutting, slitting and insulation stripping
Automatic cable feeding, output setting, timing start
Cutting length: 1-99,999.9mm
Slitting length: 0.1-150mm
Stripping length: head stripping: 25mm, tail stripping: 80mm
Packing & Shipping:
For small and light products packed by cartons,for large and heavy products packed by wooden
Product show:

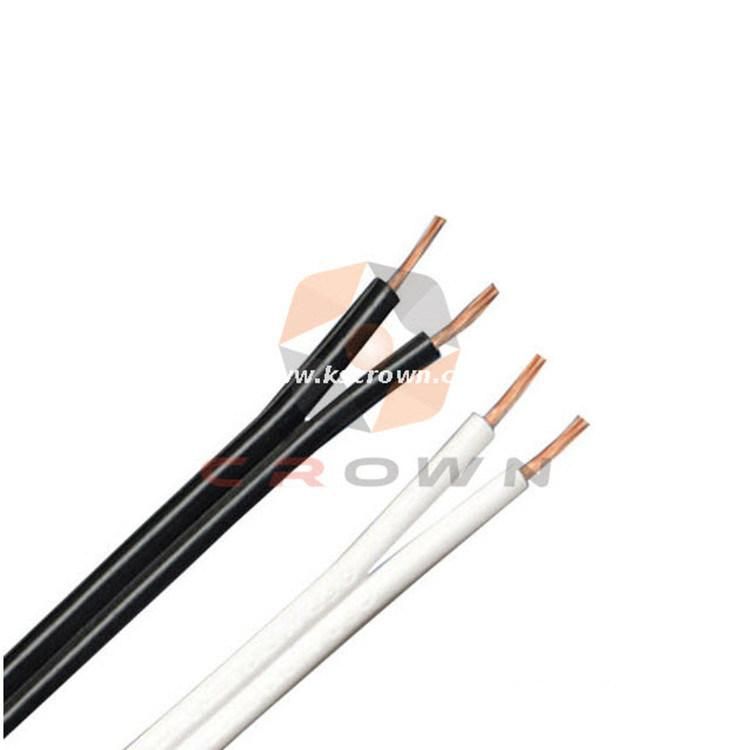

Machine processing wire samples:
Related products:
FAQ:
or through alibaba online transcation after confirmation.
we will package it in standard wooden cases.
Our service
We provide:
· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months,
we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the
compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need,
we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation,
please feel free to contact us.
Company information:
Certificate:
Contact:
Pls contact Suzhou Crown for price inquiry or any other questions/doubt.
