• Model NO.：T200C
• Automatic Grade：Semiautomatic
• Installation：Desktop
• Max PCB Size：270*230mm
• Transmit Belt Width：300mm
• Heating Supply：Full Hot-Air Convection
• Temperature Control Segment：8 PCS
• Warm-up Time：25min
• Temperature Range：Room-360 Degree
• Conveyor Speed：0-1600mm,Min Adjustable
• Normal Working Power：4kw
• Temperature Control System：PC Control System, SSR Non-Contact Output
• Transport Package：Wooden Case or Package as Your Request
• Specification：67*55*32mm
• Trademark：Torch
• Origin：Beijing
• HS Code：8514109000
• Production Capacity：10 PCS,Month
• Package size per unit product：75.00cm * 65.00cm * 49.00cm
• Gross weight per unit product：55.000kg

Basic Info.

Model NO. T200C Automatic Grade Semiautomatic Installation Desktop Max PCB Size 270*230mm Transmit Belt Width 300mm Heating Supply Full Hot-Air Convection Temperature Control Segment 8 PCS Warm-up Time 25min Temperature Range Room-360 Degree Conveyor Speed 0-1600mm/Min Adjustable Normal Working Power 4kw Temperature Control System PC Control System, SSR Non-Contact Output Transport Package Wooden Case or Package as Your Request Specification 67*55*32mm Trademark Torch Origin Beijing HS Code 8514109000 Production Capacity 10 PCS/Month

Packaging & Delivery

Package size per unit product 75.00cm * 65.00cm * 49.00cm Gross weight per unit product 55.000kg

Product Description

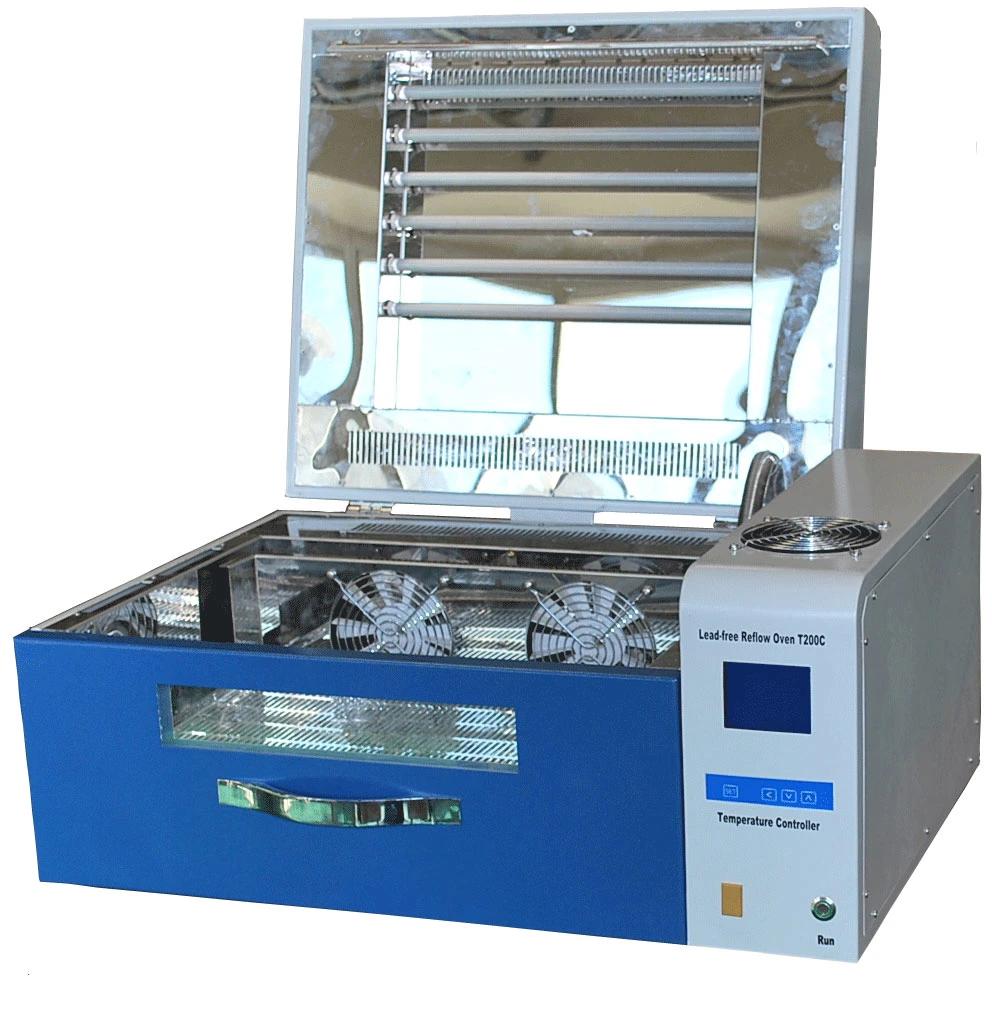

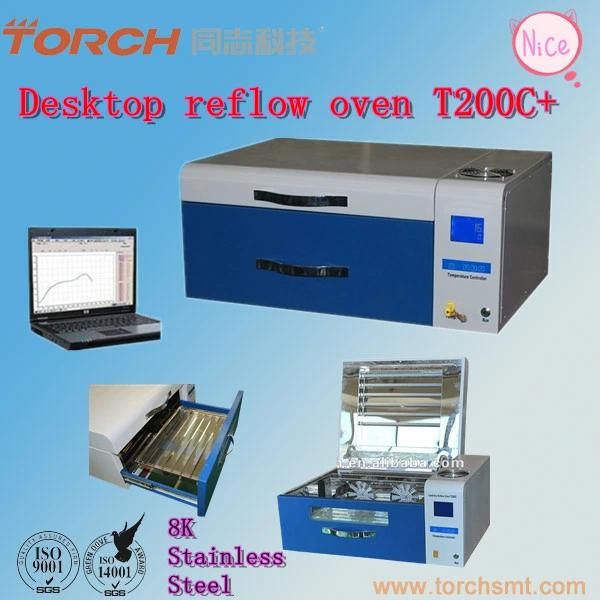

  Torch Lead Free PCB Reflow Oven / Soldering machine
                                                                     Model:T200C





Feature:

1. 1.5mm cold-roll steel sheet, impact molding formed for one time
2. The guide of the drawer is the Torch patent three section drive guide system, Completely solve the
problem of shaking drawer, and add two pcs high temperature magnet on the door.
3. 8K mirror 314 stainless steel as furnace
4. Unique hot air cycling system in furnace
5. Heating system uses TORCH heating technology
6. Uses the 6th generation of multi-channel high precision temperature control system
7. LED displayer temp control interface, digital measuring scale shows power output
8. America Omega sensor as temperature testing system, which is the only one in china
9. Has waste smoke filtration system, which is the only one in China.
10. Appearance, color
11. 2 suits of independent protection device on electric control system
12. Firstly developed professional temperature control software of desktop reflow oven, leading small oven
steps into computer-control age
TORCH, as a famous brand Desk Reflow Oven supplier, enjoy good reputation in china and oversea market.
it own its own core technoly in SMT industries that other supplier doesn't have
13. Intelligent software system of desktop reflow oven , which is the only one in China
14. Software can satisfy multi operation system and multi language environment of Chinese and English ,
which is the only one in China.
15. Remote control function
16. Realize RS485 communication and USD interface
17. Configure cool-down system on oven
18.4 layers of industrial package case
19. Stainless steel switch on operation panel
20. Temperature testing function, which is the only one in China.



Type	T200C+/T200C
Max PCB size	360*230mm
Heating supply	Infrared ray + Hot air convection
Temperature range	Room-temperature -360 ºC
Welding time	3min ± 1min
Warm-up time	3min
Temperature accuracy	± 2 ºC
Temperature control system	PC control system, SSR non-contact output
Temperature control segment	40 segments, The segment can be set in computer according to the actual requirement.
Temperature-zone numbers	Single-zone and multi-segment
Temperature curve	It can be set, adjusted and tested according to the actual requirement.
Cooling system	Transverse flow equal cooling
Power supply	AC single-phase, 220V; 50Hz
compressed air	80psi(0.5Mpa)
Power supply	220V,50Hz,1KW ,Rated power : 3.8KW; Mean power:1.6kw
Weight	39 kg
Dimension	700(L) *460(W) *310(H)mm
