High Speed Planetary Stranding Machine for Electric Control Cable

Hejian Bao Hong Electrical Machinery Co., Ltd.
  • After-sales Service：One Year Warranty
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：,
  • Mould Life：>1,000,000 Shots
  • Type：To Back Stranding Machine
  • Material：Metal
  • Wire Diameter Specification：1.5-4.0mm
  • Cage Speed：80-106 Rpm
  • Stranding Pitch：79-1075 mm
  • Traction Wheel Diameter：2000 mm
  • Pay-off Bobbin in Cage：Pnd 500
  • Central Pay-off Bobbin：Pnd 50
  • Take-up Bobbin：Pn1250-Pn2500
  • Central Height：1000 mm
  • Colour：as Required
  • Transport Package：Seaworthy Packing
  • Specification：500 , 1+6+12+18
  • Trademark：BH
  • Origin：Hejian, Hebei, China
  • HS Code：8479400000
  • Production Capacity：15 Sets,Month

Description

Specification400/12+18+24500/6+12+18500/12+18+24630/12+18+24Dia. of single wire (mm)copper1.5-5.0aluminium1.8-5.0steel1.2-3.0Production dia. (mm)453545Stranding cage speed (rpm)35-8824-60Stranding pitch (mm)53.4-105778-1541Diameter of wheel haul-off (mm)18002000Production speed (m/min)4.7-37Size of take-up reel (mm)PN2000PN2500
5.Photos

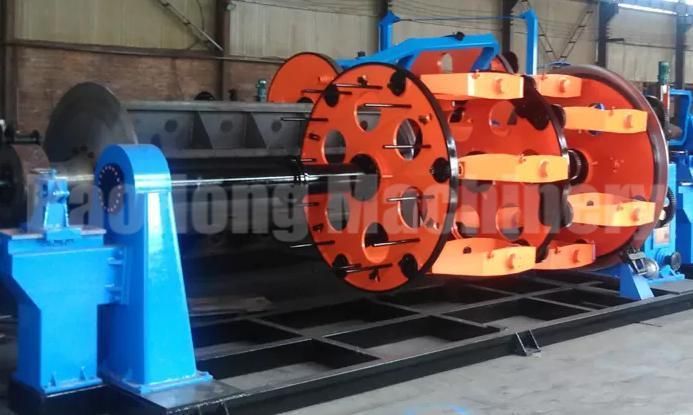

High Speed Planetary Stranding Machine for Electric Control Cable
High Speed Planetary Stranding Machine for Electric Control Cable
High Speed Planetary Stranding Machine for Electric Control Cable
High Speed Planetary Stranding Machine for Electric Control Cable
