• Applicable Housing：Within W35×h18×d18mm
• Applicable Terminal：Within W3.5×h4.5×l18mm
• Stripping Length：1-7mm
• Air Supply：0.5~0.7MPa
• Transport Package：Plywood Case
• Specification：2200*2100*2300mm
• Trademark：Sinrad
• Origin：China
• HS Code：8479819000
• Production Capacity：10 Sets,Month

Specification:

Technical Index

Tech-Parameters

Model

SR-BX860

Display

Touch panel

Function

cut, strip, crimp, insert housing, dip tin

Production rate

1800~2200pins/H (when length 100mm)

Available wire

AWG18~AWG30, OD 0.8~2.5mm. 7 different wires.

Cutting tolerance

±(0.2mm + 1% x cutting length)

Cutting Length

40~1000mm

Applicable housing

Within W35×H18×D18mm

Applicable terminal

Within W3.5×H4.5×L18mm

Crimping force

2T or customized base on products

Stripping length

1-7mm

Detector

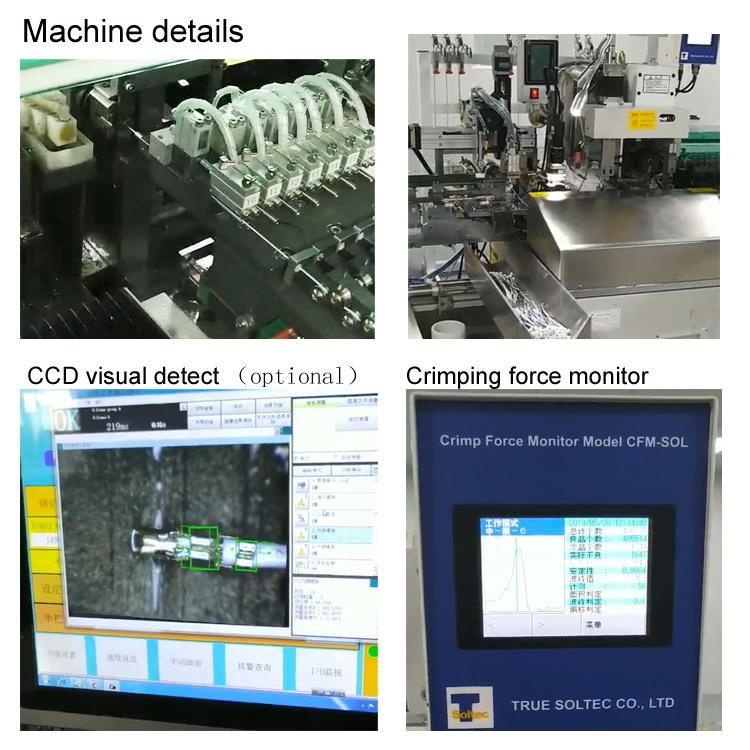

Optional: terminal pressure detection, CCD terminal appearance inspection.

Standard: insertion force detection.

Air supply

0.5~0.7MPA

Tool material

Tungsten steel

Machine Dimensions(L*W*H)

2200*2100*2300mm

Machine Weight

1100 Kg



Features:

1. Process flow: pay-off → pull the wire → cut off → strip → twist wire → dip tin → crimp terminal → crimp force monitoring → terminal appearance CCD detection → terminal reversal → housing insertion → housing pull force detection (air pressure / torque) → finished product classification and discharge.

2. This machine adopts PLC programmable control system. The parameters of the whole machine are set digitally and can be used for file management. Modular design of the hardware part, easy and quick to replace material numbers and equipment troubleshooting.

3. The equipment can be remotely controlled through the Internet, the production status can be monitored in real time, and the production data can be generated and exported.

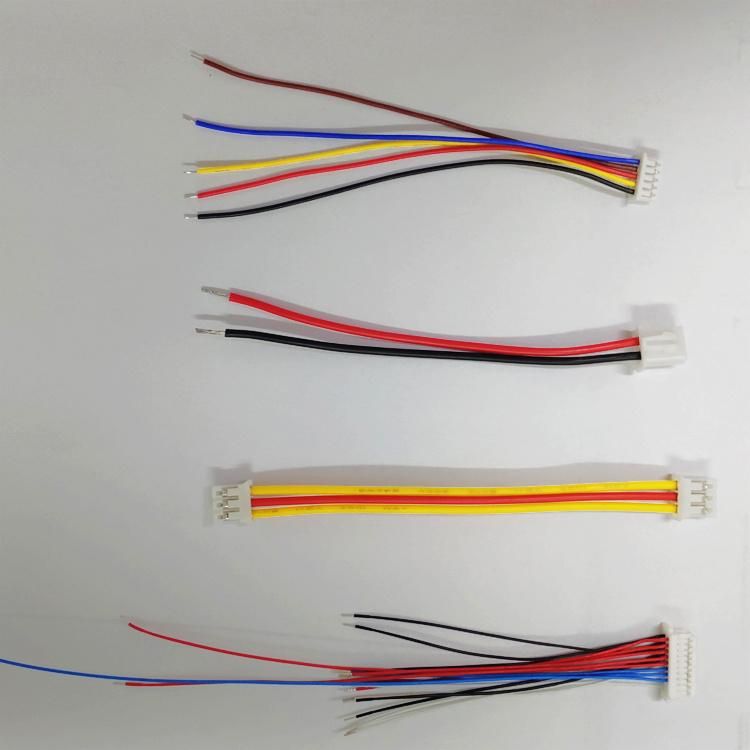

Pictures:



Service:



 FAQ:

1 Price terms

The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.

2 Can I send samples to check the machine quality.

Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.

3 How to learn the machine?

1) Offer free technology learning support in our factory

2) Provide detail user manual with detail video illustration

3) Support engineer service at site if clients asking for

4 How about the lead time and delivery time of order?

Standard model, can be ship out within 3~7days after confirmed order and deposit.

Customized model, normally lead time is 10~30 days, after confirmed all order detail deposit and got samples.

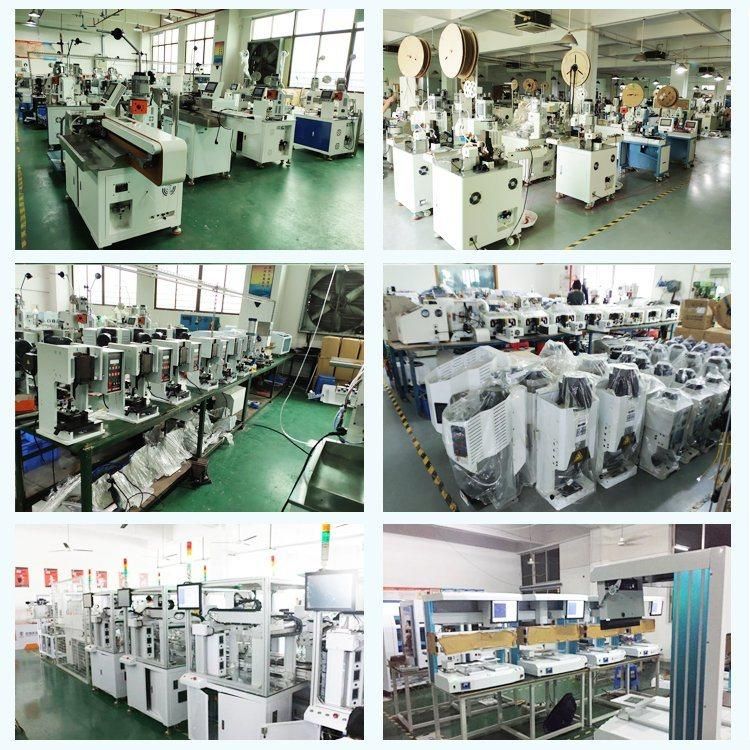

Company info:
Sinrad Technology Co.,Ltd, specialized in automation machine, customizing and manufacturing cable processing(cutting, striping, twisting, crimping, soldering, housing inserting, winding, binding, testing, etc.) machine, automatic soldering machine, intelligent soldering machine, and other production equipment.
