8 Zone LED SMT Reflow Oven PCB SMD Reflow Soldering Machine

Shenzhen Jaguar Automation Equipment Co., Ltd.
  • Condition:New
  • Certification:CCC, PSE, UL, FDA, RoHS, ISO, CE
  • Warranty:12 Months
  • Automatic Grade:Automatic
  • Installation:Vertical
  • Item:Lead Free Reflow Solder Equipment

Base Info

  • Model NO.:Jaguar F Series
  • Conveyor Speed Range:300-2000mm,Min
  • Data Storage:Process Data and Status Storage(80GB)
  • Warm-up Time:20mins
  • Heating Mode:Whole Hot Air Cycle
  • SMT Machine:Soldering Machine
  • Cooling Zone:2
  • PCB Size:450mm
  • Demoulding:Automatic
  • Function:High Temperature Resistance
  • Transport Package:Wooden Case
  • Specification:CE
  • Trademark:Jaguar
  • Origin:Shenzhen, China
  • HS Code:8515190000
  • Production Capacity:100PCS,Month

Description

Basic Info.

Model NO. Jaguar F Series Conveyor Speed Range 300-2000mm/Min Data Storage Process Data and Status Storage(80GB) Warm-up Time 20mins Heating Mode Whole Hot Air Cycle SMT Machine Soldering Machine Cooling Zone 2 PCB Size 450mm Demoulding Automatic Function High Temperature Resistance Transport Package Wooden Case Specification CE Trademark Jaguar Origin Shenzhen, China HS Code 8515190000 Production Capacity 100PCS/Month

Product Description

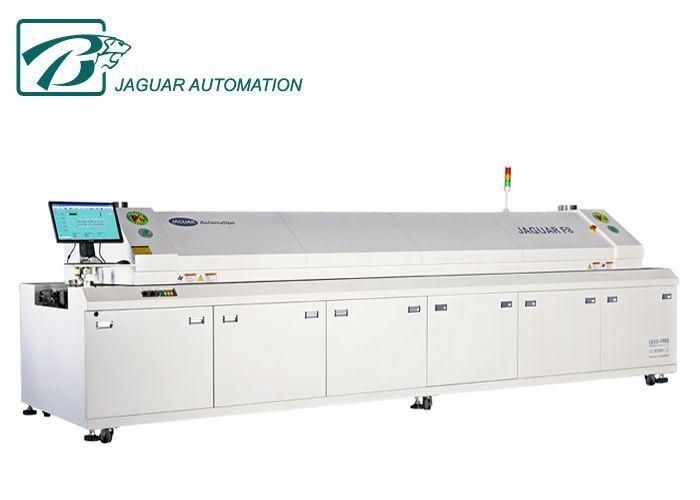

JAGUAR 8 Zones Lead Free Hot Air Reflow Oven
F8

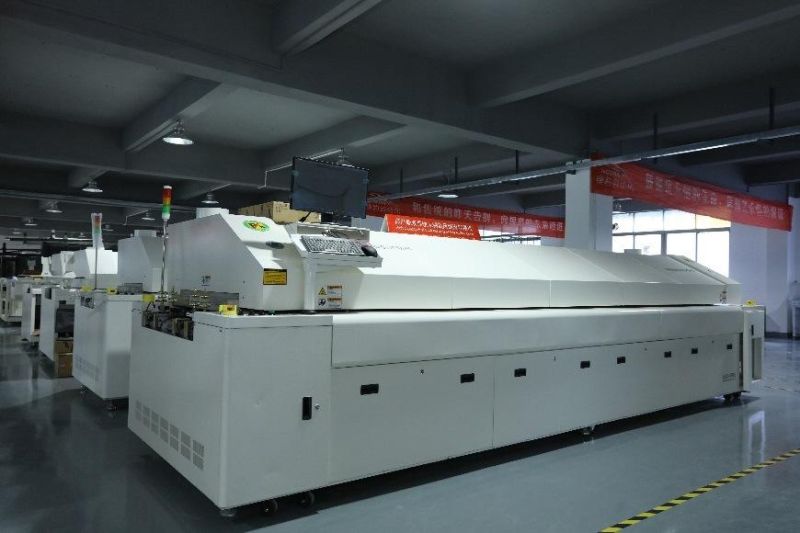

8 Zone LED SMT Reflow Oven PCB SMD Reflow Soldering Machine

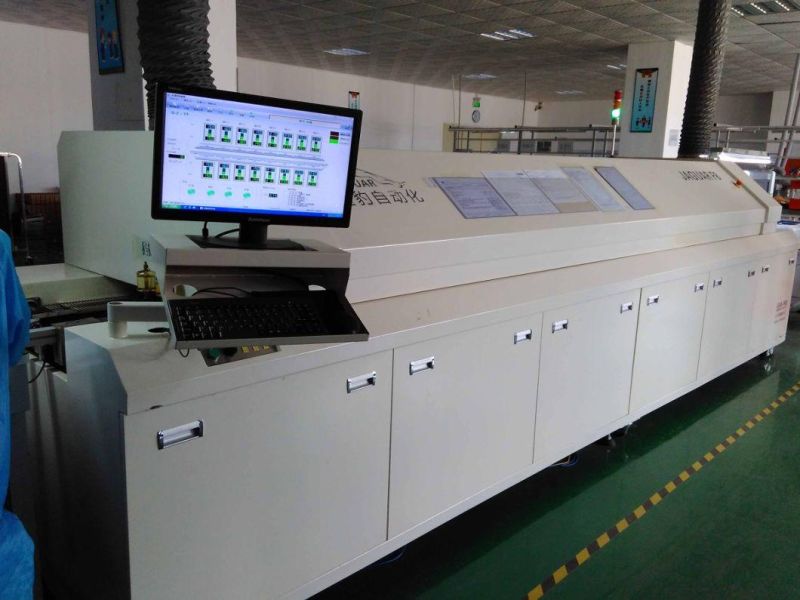

8 Zone LED SMT Reflow Oven PCB SMD Reflow Soldering Machine

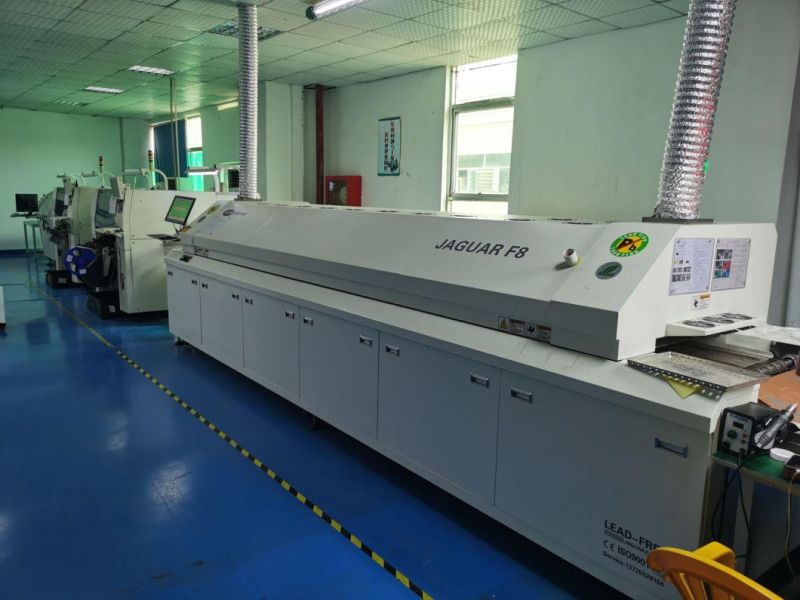

8 Zone LED SMT Reflow Oven PCB SMD Reflow Soldering Machine
Introduction:

  1. Heating zone
1.1: New energy saving furnace design, 4 sides return air, the best temperature uniformity
1.2: Plug-in type imported high temperature motor, quick replacement in 5 minutes
1.3: 8 heating zones, 16 heating elements( up 8/ bottom 8 ) , independent temperature control and switch
1.4: The latest design of nozzle plate, the best insulation performance

  1. Control system
2.1: Siemens PLC, table machine performance
2.2: Professional IPC, Windows 7 operation interface, English/Chinese language free switch

  1. Convyeor system
3.1: Conveyor speed: The speed of the stepless frequency converter is 0.35m-1.5m /Min, and the accuracy is ±2mm/ Min

4.Cooling zone
4.1: Axial fan forced air cooling ( Up and bottom dual cooling)

5.Protection system
5.1: Temperature out of tolerance alarm, transmission speed out of tolerance alarm
5.2: IPC+UPS
5.3: Super positioning flexible and convenient screw width adjusting system
5.4: IPC delay shutdown function

6.Machine parameters
Machine dimension5300 x 1350x 1490mm
ColorIvory
Net weightApprox. 2250kgs
Exhaust volume10m3/min X 2pipe
Power supply 5 wire, 3 phase, 380V 50/60HZ
Startup power consumption48KW
Steady power consumption8-12KW
Warming timeAbout 30mins
Temperature rangeRoom temperature-300ºC
Mesh width500mm
Max PCB width420mm
Component height Up 25mm/Bottom 25mm
Conveyor directionLeft-right ( option: Right-left)
Conveyor speed300-2000mm/min
Data storageProcess data and status storage(80GB)
Abnormal alarmOver temp or low temp alarm, sound and light 2 modes

7.Machine configuration
Heating zoneUp 8, Bottom 8
Cooling zoneUp 8, Bottom 2
Control modeWINDOWS 7+IPC+PLC
Temperature control modePID closed loop+SSR driver
Thermal couple wire 3pcs
Conveyor systemMesh+Chain
Conveyor control mode3 inverters+Panasonic motor
Hood liftElectric hood lift
UPSStandard, power off standby to protect PCB production completed

8.Parts list
PartsBrandOrigin
SSRCarlo Gavazzi Switzerland
Thermal SSRCarlo Gavazzi Switzerland
Thermal SSR seatCarlo Gavazzi Switzerland
UPSSantakU.S.A
ContactorCHNTChina
PLCSiemensGermany
Temperature control moduleHuceenTaiwan, China
Heating tubeHotsetGermany
InveterDeltaTaiwan, China
Conveyor motorPanasonicJapan
Width adjustable motorPanasonicJapan
HT motorGuanghuiTaiwan, China
DisplayLenovoChina
HostLenovoChina
CableSiemensGermany
Conveyor tooth boxPanasonicJapan
Width adjustment tooth boxPanasonicJapan
Galvanized wind turbinesSanyueTaiwan, China
MeshTSUBAKIJapan
ChainKMCTaiwan, China
Intermediat ralayOMROMJapan
24V DC power supplyNWTaiwan, China
Single-pole switchCHNTChina
Air switchCHNTChina
3 color lightONLIONChina
Limit switchCHNTChina
Electric putterKONFIATaiwan, China
Thermal couple wirePAIKOJapan
Temperature test seatKJapan
Control buttonIDECJapan
FanGuanghuiTaiwan, China
Oil cupOilbellTaiwan, China

Company Introduction:
8 Zone LED SMT Reflow Oven PCB SMD Reflow Soldering Machine
8 Zone LED SMT Reflow Oven PCB SMD Reflow Soldering Machine

8 Zone LED SMT Reflow Oven PCB SMD Reflow Soldering Machine
8 Zone LED SMT Reflow Oven PCB SMD Reflow Soldering Machine

8 Zone LED SMT Reflow Oven PCB SMD Reflow Soldering Machine
FAQ:


 1) This is the first time I use this kind of machine, is it easy to operate?
 There is english manual or guide video that show you how to use machine.
  If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

 2) If machine have any problem after I receive it, how can I do ?

 Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
  If it exceeds 0.5KG, you need to pay the postage.

 3) MOQ ?
 1 set machine, mixed order is also welcomed.

 4) How can I buy this machine from you? ( Very easy and flexible !)
  A. Consult us about this product on line or by e-mail.
 B. Negotiate and confirm the final price , shipping , payment methods and other terms.
 C. Send you the proforma invoice and confirm your order.
 D. Make the payment according to the method put on proforma invoice.
 E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
 And 100% quality check before shipping.
 F.Send your order by air or by sea.

 5)Why choose us ?
 A. Gold supplier on Alibaba !
 B. Trade assurance to US$54,000 !
 C. Best price & Best shipping & Best service !
